High Frequency Slip Ring DC-6GHz for Radar Antennas 100RPM

JINPAT single-channel high frequency slip ring offers high frequency transmission solution between a fixed platform and a rotary platform, such as TV cameras, unmanned aerial vehicles and radar systems.

The slip ring allows signal transmission in the frequency range from DC up to 6GHz, and it can be integrated into the electrical slip ring to transmit power and high speed data. The high frequency slip ring is identified as ease of installation, ease of maintenance and optimal life.

Features

• Connector type: SMA-K
• Frequency range: DC-6GHz
• Insertion Loss: within 0.3dB
• VSWR: within 1.4
• Working speed: 100RPM
• Lifespan: 1 million

Main Application

• Vehicle Turrets
• Radar Antennas
• Remotely Operated Vehicles
• Video Surveillance Systems
• Traffic Systems

Product parameters

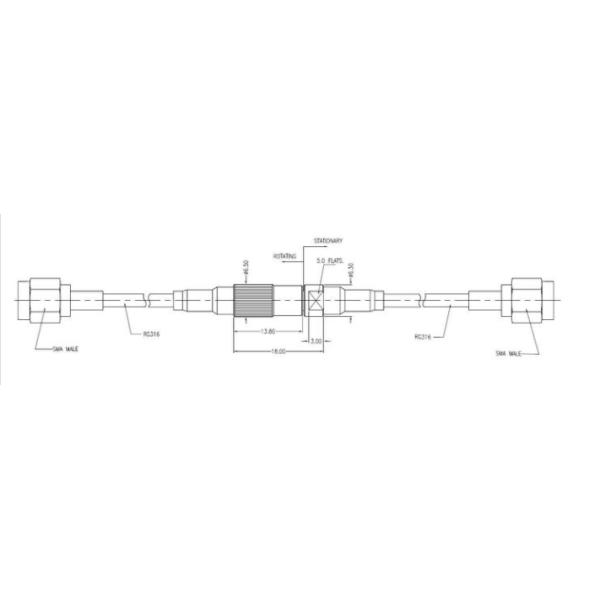

Product Image

Welcome to JINPAT Electronics

Providing free custom slip rings solutions,creating propulsion for your technology

• With a large plant of over 12,000 square meters and more than 500 employees.
• The company has been awarded the title of "National High and New Technology" and has obtained 69 patents.
• Long-term cooperation with global famous enterprises and agents all over the world.
• With Over 10,000 designs with success in civil, military, commercial and industrial applications.
• Founded in 1996, with more than 20 years of production and R & D experience.
• Providing free custom slip rings solutions,which can be suitable for a variety of equipment
• Fast delivery

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

3.What kinds of slip rings do we offer

• Electrical Slip rings (capsule slip ring,through-hore slip ring,miniture slip ring, etc)
• Signal Slip rings (USB2.0/USB3.0 slip ring,fiber optic rotary joint,high frequency slip ring,etc)
• Pneumatic/Hydraulic Rotary Unions
• Custom Slip Rings
• Large volume series

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
