A4VSO125DR 30R-PPB13N00 Mechanical Hydraulic Pump Cast Iron Material Fast Shipping Secure Payment Standard Design for Maximum Efficiency

Categories Mechanical Hydraulic Pump
Brand Name: Rexroth
Model Number: A4VSO125DR 30R-PPB13N00
Certification: cc
Place of Origin: Germany
MOQ: 1
Price: RMB/100-10000/PC
Payment Terms: T/T
Supply Ability: 10PCS/days
Delivery Time: 3 work days
Packaging Details: wooden case/carton
Material: Cast Iron
Local Service Location: None
Shipping Date: Within 3 Days After Payment
Payment: TT
Standard Or Nonstandard: standard
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

A4VSO125DR 30R-PPB13N00 Mechanical Hydraulic Pump Cast Iron Material Fast Shipping Secure Payment Standard Design for Maximum Efficiency

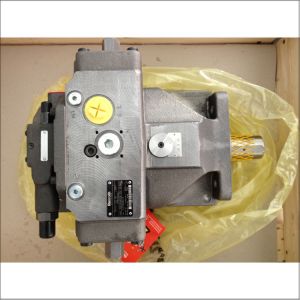

Rexroth Hydraulic Pump A4VSO125DR 30R-PPB13N00
Product Specifications
AttributeValue
MaterialCast Iron
Shipping DateWithin 3 Days After Payment
PaymentTT
StandardStandard
The A4VSO125DR 30R-PPB13N00 is a variable displacement axial piston pump from Bosch Rexroth, designed for industrial hydraulic applications. Below are its detailed specifications and features based on the latest available information:

Technical Specifications

  • Model: A4VSO125DR 30R-PPB13N00
  • Series: A4VSO
  • Type: Variable displacement axial piston pump
  • Displacement Range: Up to 125 cm³
  • Nominal Pressure: 350 bar
  • Maximum Pressure: 400 bar
  • Speed Range: Up to 2200 RPM
  • Flow Rate: Up to 156 liters per minute (LPM) at maximum speed
  • Control Type: Pressure-flow compound control (DR) with integrated PPB13N00 controller
  • Interface: G1/4 internal thread for pressure port, independent drain port (L/L1)
  • Direction of Rotation: Clockwise (R)
  • Body Material: Cast Iron
  • Seal Type: Viton or NBR
  • Fluid Compatibility: Mineral oil, synthetic hydraulic oil (viscosity range 15–160 mm²/s)
  • Working Temperature Range: -25°C to +90°C (-13°F to +195°F)
  • Weight: Approximately 61 kg

Features

  • Variable Displacement: Allows for adjustable flow rates to meet specific system requirements.
  • High Pressure Capability: Suitable for high-pressure applications up to 400 bar.
  • Efficient Control: Integrated PPB13N00 controller for programmable pressure and flow settings.
  • Energy Efficient: Up to 30% energy savings compared to fixed displacement pumps in dynamic load scenarios.
  • Robust Design: Cast iron body ensures durability and reliability.
  • Low Noise Level: Designed for low noise operation.
  • Wide Application Range: Suitable for various industrial and construction applications.
  • Modular Design: Allows for easy integration into existing systems.

Applications

The A4VSO125DR 30R-PPB13N00 is suitable for a variety of industrial applications, including:
  • Metallurgical Industry: Hydraulic stations in rolling mills.
  • Plastic Injection Molding Machines: High-pressure control for mold clamping units.
  • Construction Machinery: Hydraulic drive systems in excavators and cranes.
  • Concrete Pump Trucks: High-pressure hydraulic drive.
This pump is designed to enhance system efficiency, reduce downtime, and provide reliable performance in demanding industrial environments.
Bosch Rexroth A4VSO40DR10R-PPB13N00 hydraulic pump
Frequently Asked Questions
Do you accept small orders?
Yes, we accept small orders. Please contact us for details.
Can you ship to my country?
Yes, we can arrange shipping worldwide. We can assist with logistics if needed.
What are your payment terms?
We accept T/T, LC at sight, or 100% full payment.
What is your production lead time?
Typically 15 days for MOQ quantities, depending on product and order size.
When can I get a quotation?
We provide quotes within 24 hours of inquiry. Urgent requests can be prioritized.
