| Categories | Laser Rangefinder Module |
|---|---|
| Brand Name: | Forward |
| Model Number: | FW-ED05 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 pcs/year |
| Delivery Time: | 5-8 work days |
| Laser Wavelength: | 1535±5nm |
| Launch Lens Diameter: | Φ10mm |
| Receiver Lens Diameter: | Φ25mm |
| Ranging Accuracy: | ±2m |
| Range Resolution: | ≤15 m |
| Divergence Angle: | ≤0.5 mrad |
| Company Info. |
| XIXIAN FORWARD TECHNOLOGY LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

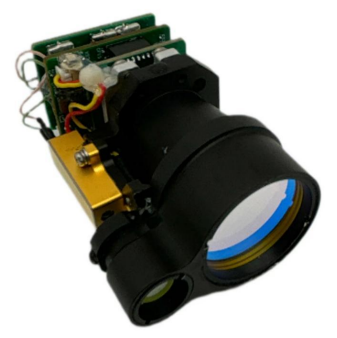

Descriptions of FW-ED05 1535nm Eye-safe Laser Ranging Module
Specifications of FW-ED05 1535nm Eye-safe Laser Ranging Module
| Laser Wavelength | 1535±5nm |
| Eye Safety | Class 1 |
| Divergence Angle | ≤0.5mrad |
| Laser Energy | ≥200 μJ |
| Launch Lens Diameter | Φ10mm |
| Receiver Lens Diameter | Φ25mm |
| Measuring Range(Reflectance 30%; visibility ≥ 5km.) | NATO objective(2.3m×2.3m) ≥6000m Measuring human target(0.5m×1.7m) ≥1500m |
| Minimum Range | ≤15 m |
| Ranging Accuracy | ±2m |
| Ranging Frequency | 0.5Hz ~10Hz |
| Number of multi-target detections | Up to 3 targets |
| False Alarm Rate | ≤1% |
| Precision Rate | ≥98% |
| Pin-in-lead package model | Molex51021-0500 |
| Supply Voltage | DC 12 V |
| Standby Power Consumption | ≤1mW |
| Average power consumption | ≤2.5 W @10 Hz |
| Peak Power Consumption | ≤7 W @12 V |
| Weight | ≤90g |
| Dimention (L×W×H) | 70×32×40mm |
| Operation Temperature | -40~+70℃ |
| Storage Temperature | -55~+75℃ |
| Impact Resistance | Meet the MIL-STD-810G testing standard |
| Vibration Resistance | Meet the MIL-STD-810G testing standard |
Outline Dimension(mm)
|   |
