5600W Single Phase Hybrid Inverter With Parallel Function For Off Grid And Grid Tie Solar Systems
Product description:
This 5600W single-phase hybrid inverter is designed for residential and small commercial solar systems, offering grid-tie and off-grid capability with a smart energy management system. It supports 51.2V lithium or lead-acid batteries, features dual charging paths from both utility and PV (up to 100A), and includes advanced anti-backfeed control. The inverter supports parallel operation of up to 6 units and can form a true three-phase system using three sets of parallel connections. Ideal for hybrid systems requiring high efficiency, scalability, and flexibility.
Technical parameter
| Rated Power | 5600W |
| Battery Voltage | 51.2VDC |
| AC Output Voltage | 230V 50Hz (Single Phase) |
| PV Input Voltage Range | 90V – 500VDC |
| Max PV Input Power | 6000W |
| Charging Current (Grid/PV) | 100A (Total) |
| Parallel Function | 6 units max (supports 3-phase setup) |
| Anti-Reverse Flow | Yes, grid-tied hybrid with anti-backfeed |
Feature Advantages:
Supports both on-grid and off-grid solar system applications
Compatible with lithium and lead-acid batteries at 51.2V
Smart anti-backfeed design prevents power from returning to the grid
High PV input voltage range up to 500VDC
100A dual charging capacity for fast battery charging
Parallel-ready with up to 6 units for scalable capacity
Can be configured as a 3-phase system using 3 parallel sets
Integrated MPPT controller ensures optimal solar energy conversion
Product Details:

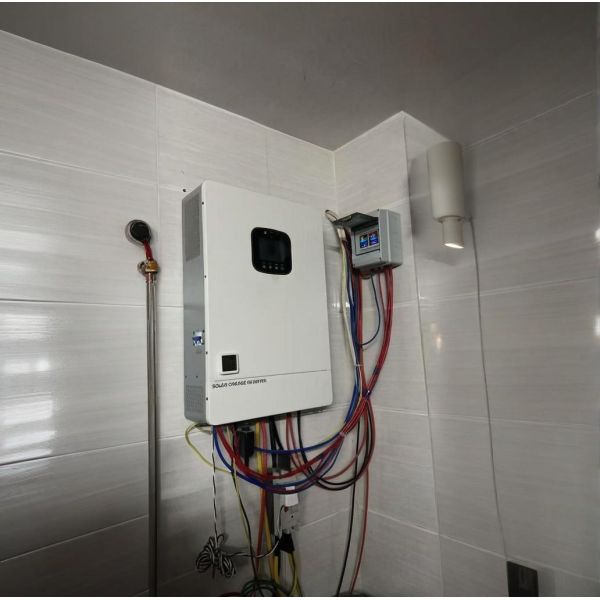

Application Scenario:



|
