| Brand Name: | HUATEC |
| Model Number: | SRT-210G |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 pc |
| Price: | USD14950/set - USD16900/set |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 10sets/Month |
| Delivery Time: | 10-15 working days after receipt of your payment |
| Packaging Details: | Carton packing box |
| Straightness: | 1um/100mm |
| Movement Speed: | 0 ～10mm/s （arbitrary speed） |
| Indication accuracy: | ±（2.5+2L/100) L is driving length（mm） |
| File output mode: | PDF， Excel |
| Power: | 400W，AC220V 50HZ |
| Air consumption: | 30L/min |
| Company Info. |
| HUATEC GROUP CORPORATION |
| Verified Supplier |
| View Contact Details |
| Product List |

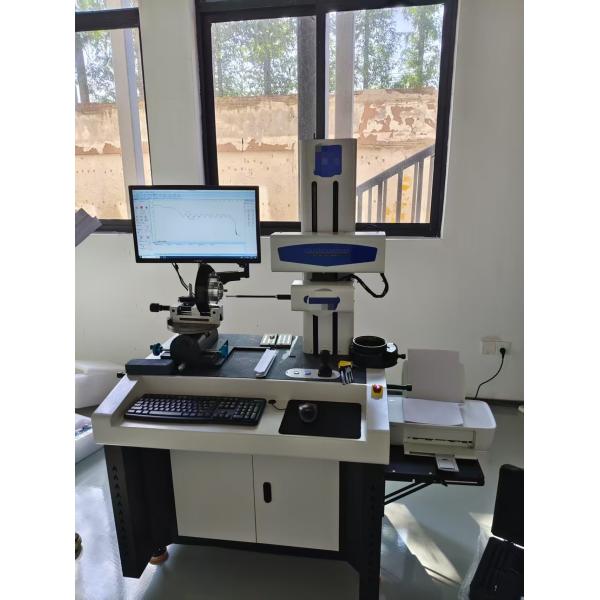

SRT-210G Roughness Contour Profile Analysis Tester
FEATURES:
Various types of workpiece surface line elements, point features, point to point distance, line to line distance, the location of each element includes: distance, parallelism, angle, groove depth, groove width, radius, straightness analysis, convexity analysis, profile analysis, etc.
SPECIFICATIONS:
| XI AXIS(Cross Arm) | |
| Measuring Arrange | 100mm |
| Straightness | 1um/100mm |
| Driving Mode | Direct drive motor |
| Movement Speed | 0 ～10mm/s (arbitrary speed) |
| Resolution | 0.05 |
| Indication accuracy | ±(2.5+2L/100) L is driving length(mm) |
| Measuring direction | backward |
| Measuring Method | Grating Ruler |
| Z1 AXIS (SENSOR) | |
| Measuring range | 30mm |
| Resolution | 0.05 |
| Measuring Method | Holographic grating sensor |
| Indication accuracy | ±(1.5+|6H|/50) |
| Probe up/down movement | Arc movement |
| Probe direction | downward |
| Probe lifting mode | manual |
| Measuring force | 6mN |
| Probe | radius:25 length:20mm diameter:2mm |
| Climbing angle | up75° down85° |
| Measuring speed | 0.1 mm/s～4 mm/s(any speed) |
| Z2 AXIS(COLUMN) | |
| Max. Measuring height | 200mm |
| Movement mode | CNC or handle |
| Movement speed | 0.1～8mm/s(any speed) |
| Tool and fixture | |
| Precision two-dimensional adjustment platform | X:0 to 25mm,Y:0 to 25mm |
| Angle adjustment platform | Axial 360 degrees,pitch:±45degrees |
| V shaped iron | 60mm |
| Acquisition control system | |
| System transmission mode | USB and LAN |
| System resolution | / |
| Motion control mode | CNC or handle drive |
| Data processing | |
| Zoom in or out | Zoom in and out with the mouse wheel |
| Guides | Add guides to any area of the drawing |
| Data fitting | when the finished part cannot be measured at one time, it can be divided into several measurements and finally merged |
| Remove abnormal points | manually or automatically |
| Graph move | drag the mouse to move freely within the graph coordinates |
| Graph rotation | Any angle rotation |
| Zoom | Select region to zoom in and out |
| SPC quality analysis | Histogram,normal distribution |
| File output mode | PDF, Excel |
| Measuring report | editor can output standard report, and user can edit report according to requirement |
| Working Parameters | |
| Pressure | / |
| Air consumption | 30L/min |
| Power | 400W,AC220V 50HZ |
| Working condition | Temperature:10～30℃； Humidity:＜85% |
| Optional | |
Industrial Personal Computer &DE LL display screen | 1 |
| Output A4 printer | 1 |
| Standard adjustment platform | 1 |
| Stand block | 1 |
| Standard ball | 1 |
|
