| Categories | Pulse Valve Diaphragm |
|---|---|
| Brand Name: | Turbo |
| Model Number: | M40 |
| Place Of Origin: | China |
| Certification: | CE |
| MOQ: | 1 |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 1-7Work Days After Payment |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 Pieces/1Month |
| Brand name: | Turbo |
| Diaphragm Outer Diameter: | φ122mm |
| Diaphragm Material: | NBR (Buna) |
| Mounting Hole Size: | φ8.5mm |
| Center Distance: | φ122mm |
| Port Size: | 1.5 Inch |
| Company Info. |
| YW DKE TRADING COMPANY |
| Verified Supplier |
| View Contact Details |
| Product List |
| Product Name: | M40 Diaphragm Repair Kit | Suitable Valves: | 1 1/2'' FP40, FM40, DP40, DM40, EP40, EM40 |
|---|---|---|---|
| Diaphragm Material: | NBR (Buna) | Mounting Hole Size: | φ8.5mm |
| Diaphragm Outer Diameter: | φ122mm | Center Distance: | φ122mm |
| Bleed Hole: | 1 | Spring: | 2 |
| Packaging: | Individual Plastic Bag Sealed | ||
| Highlight: | M40 Diaphragm Repair Kit,FP DP Series Diaphragm Repair Kit,Turbo Type M40 | ||

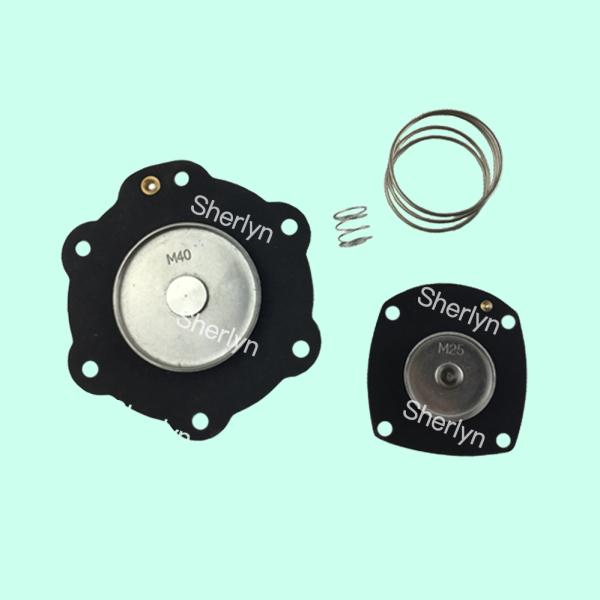

M40 1.5 Inch FP DP Series Pulse Jet Valve Diaphragm Repair Kit
1½" Turbo Diaphragm Repair Kit consisting of a double diaphragm (M45+M10) plus springs (TM0L40 + TMOL11G)
| Fluids: | Non-lubricated filtered air. |
| Operating temperature: | Nitrile diaphragm -20°C; +80°C Viton diaphragm -20°C; +200°C |
| Operating pressure: | Between 0.5 and 7.5 bar |
M40 & M40V Diaphragm Repair Kit is suitablr to the 1 1/2'' FM45, FP45, DM45 & DP45 Turbo Valves. There are two kinds of materials for this diaphragm, one is Nitrile and the other is Viton, Nitrile is generally used, Viton is resistant to high temperature and the price is slightly higher.
The M40 Kit is the Nitrile Kit, for use with standard temperature applications
The M40V Kit is the Viton Kit, for use with high temperature applications
The M/D series diaphragms (such as M/D25 type) act as the core sealing and actuating components of the pulse valve in the baghouse. They control the instantaneous release of compressed air to perform high-frequency jetting (several times per second) to clean the surface area of filter bags from dust accumulation.
Workflow: Electrical signal triggers the pulse valve → Diaphragm opens instantly → Compressed air is injected into filter bags via blowing pipes → Filter bags expand and shake off dust → Diaphragm resets and closes.
This system is used for pneumatic conveying pipeline cleaning or breaking material bridges in silos. It utilizes pulsating airflows to prevent blockages and is suitable for scenarios involving coal powder, grains, plastic granules, and more.
| Industry | Application | Compatible Diaphragm Models | Key Requirements |
|---|---|---|---|
| Manufacture of Cement | Kiln-end dust collector, raw material grinding dust removal | M/D25, MD140S | Tolerant to typical dust temperatures (<80℃) |
| Steel Smelting | Sintering machine head dust removal, blast furnace gas purification | MD150S, MD162S | Requires cooler integration (temperature ≤60℃) |
| Wood Processing | Sawdust collection system | MD125 | Explosion-proof design |
| Food/Chemical Industry | Powder pneumatic conveyance for blockage clearance | M/D25 (TPE material) | Oil-free dry air requirement (FDA compatibility) |
| Waste Incineration | Flue gas treatment system | Requires EPDM/FKM diaphragms | Corrosion-resistant (acidic gases) |
| Ordering code | Fitted valve code | Valve port size | Material |
| M25 | FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25, SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25 | 1'' | Nitrile/Buna |
| M40 & M25 | FP40, FM40, DP40, DM40, EP40, EM40 | 1-1/2'' | Nitrile/Buna |
| M50 & M25 | SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65 | 2'' | Nitrile/Buna |
| M75 & M25 | FP65, FM65, SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN | 3'' | Nitrile/Buna |
| Tips: EPDM, Viton all available. | |||
The Product Technical Support and Services for the Pulse Valve Diaphragm include troubleshooting assistance, installation guidance, and maintenance recommendations. Our team of experts is dedicated to ensuring optimal performance and reliability of the product. Additionally, we offer training programs and resources to help customers effectively use and maintain the pulse valve diaphragm.
Product Name: Pulse Valve Diaphragm
Description: High-quality diaphragm for pulse valves, made of durable materials for long-lasting performance.
Packaging: Each diaphragm is individually wrapped in protective packaging to prevent damage during transit.
Shipping: We ship all orders within 1-2 business days via reliable courier services to ensure safe and timely delivery to your location.
|
