Specifications:
1).Quality standard:ISO9001:2000
2).Good polish & Rotation
3).samples:Available
Features:

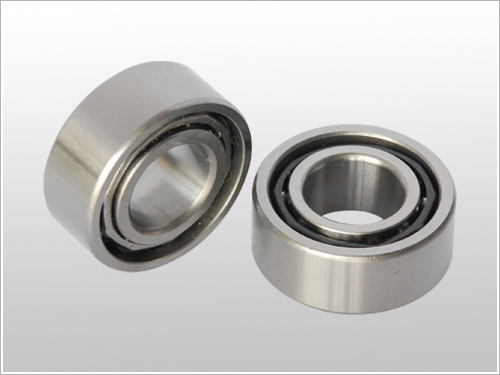

Product Name :Angular Contact Ball Bearing
Series:3200&3300 series
Ring material: Chrome Steel , Carbon steel, Stainless steel
Quality standard: ISO9001:2000
Service: OEM service, Customer design service, buyer label service
Application: Widely used for machine tool spindle, high frequency motors, gas turbines, centrifuges, small car front wheel, the differential pinion shaft double row angular contact ball bearings: pump, blower, air compressor, various types of transmission, fuel injection pumps, printing machinery.
Details:Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, matched bearing mounting is often adopted to them as matched parts of bearings, preload for them is more convenient, Retainers are made of brass, synthetic resins or others subject to indive dual bearing features and application conditions.
| Bearing | Bore | Outer Diameter | Width | Radius | Basic Load Ratings | Weight | |||||||
| d | D | W | Shields and seals | r | Dynamic | Static | |||||||
| No | mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | C | Co | lbs |
| 3202 | 15 | 0.5906 | 35 | 1.378 | 15.9 | 0.626 | 19 | 0.748 | 1.0 | 0.039 | 2500 | 2040 | 0.152 |
| 3203 | 17 | 0.6693 | 40 | 1.5748 | 17.5 | 0.689 | 20.6 | 0.811 | 1.0 | 0.039 | 3200 | 2660 | 0.218 |
| 3204 | 20 | 0.7874 | 47 | 1.8504 | 20.6 | 0.811 | 23.8 | 0.937 | 1.5 | 0.059 | 3950 | 3400 | 0.366 |
| 3205 | 25 | 0.9843 | 52 | 2.0472 | 20.6 | 0.811 | 23.8 | 0.937 | 1.5 | 0.059 | 4350 | 4150 | 0.403 |
| 3206 | 30 | 1.1811 | 62 | 2.4409 | 23.8 | 0.938 | 27 | 1.063 | 1.5 | 0.059 | 6250 | 6150 | 0.668 |
| 3207 | 35 | 1.378 | 72 | 2.8346 | 27 | 1.063 | 30.2 | 1.189 | 2.0 | 0.079 | 8400 | 8550 | 1.01 |
| 3208 | 40 | 1.5748 | 80 | 3.1496 | 30.2 | 1.189 | 33.3 | 1.311 | 2.0 | 0.079 | 9100 | 10100 | 1.38 |
| 3209 | 45 | 1.7717 | 85 | 3.3465 | 30.2 | 1.189 | 33.3 | 1.311 | 2.0 | 0.079 | 10400 | 11700 | 1.49 |
| 3210 | 50 | 1.9687 | 90 | 3.5433 | 30.2 | 1.189 | 33.3 | 1.311 | 2.0 | 0.079 | 11800 | 13400 | 1.54 |
| 3211 | 55 | 2.1654 | 100 | 3.937 | 33.3 | 1.311 | 36.5 | 1.437 | 2.5 | 0.098 | 14800 | 17200 | 2.36 |
| 3212 | 60 | 2.3622 | 110 | 4.3307 | 36.5 | 1.437 | 39.7 | 1.562 | 2.5 | 0.098 | 15800 | 19800 | 2.95 |
| 3213 | 65 | 2.5591 | 120 | 4.7244 | 38.1 | 1.5 | 41.2 | 1.625 | 2.5 | 0.098 | 17500 | 22300 | 3.7 |
| 3214 | 70 | 2.7559 | 125 | 4.9213 | 39.7 | 1.563 | 42.8 | 1.687 | 2.5 | 0.098 | 19300 | 24800 | 4.06 |
| 3215 | 75 | 2.9528 | 130 | 5.1181 | 41.3 | 1.626 | 44.4 | 1.75 | 2.5 | 0.098 | 21100 | 27500 | 4.43 |
| 3216 | 80 | 3.1496 | 140 | 5.5118 | 44.4 | 1.748 | 47.6 | 1.87 | 3.0 | 0.118 | 23300 | 29400 | 5.97 |
| 3217 | 85 | 3.3465 | 150 | 5.9055 | 49.2 | 1.937 | 52.4 | 0.062 | 3.0 | 0.118 | 27300 | 35000 | 7.67 |
| 3218 | 90 | 3.5433 | 160 | 6.2992 | 52.4 | 2.063 | 55.5 | 2.187 | 3.0 | 0.118 | 30500 | 38000 | 9.35 |
| 3219 | 95 | 3.7402 | 170 | 6.6929 | 55.6 | 2.189 | 55.6 | 2.189 | 3.5 | 0.138 | 32500 | 41500 | 11.2 |
| 3220 | 100 | 3.937 | 180 | 7.0866 | 60.3 | 2.374 | 60.3 | 2.374 | 3.5 | 0.138 | 42500 | 52500 | 13 |
| Bearing | Bore | Outer Diameter | Width | Radius | Basic Load Ratings | Weight | |||||||
| d | D | W | Shields and seals | r | Dynamic | Static | |||||||
| No | mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | C | Co | lbs |
| 3303 | 17 | 0.6693 | 47 | 1.8504 | 22.2 | 0.874 | 25.4 | 1 | 1.50 | 0.059 | 3950 | 3350 | 0.408 |
| 3304 | 20 | 0.7874 | 52 | 2.0472 | 22.2 | 0.874 | 25.4 | 1 | 2.00 | 0.079 | 4700 | 4150 | 0.487 |
| 3305 | 25 | 0.9843 | 62 | 2.4409 | 25.4 | 1.000 | 28.6 | 1.126 | 2.00 | 0.079 | 6600 | 6000 | 0.78 |
| 3306 | 30 | 1.1811 | 72 | 2.8346 | 30.2 | 1.189 | 33.3 | 1.311 | 2.00 | 0.079 | 8700 | 8200 | 1.23 |
| 3307 | 35 | 1.378 | 80 | 3.1496 | 34.9 | 1.374 | 28.1 | 1.5 | 2.50 | 0.098 | 11100 | 10700 | 1.68 |
| 3308 | 40 | 1.5748 | 90 | 3.5433 | 36.5 | 1.437 | 39.7 | 1.563 | 2.50 | 0.098 | 12200 | 12900 | 2.27 |
| 3309 | 45 | 1.7717 | 100 | 3.937 | 39.7 | 1.563 | 42.8 | 1.687 | 2.50 | 0.098 | 15100 | 16300 | 3.02 |
| 3310 | 50 | 1.9687 | 110 | 4.3307 | 44.4 | 1.748 | 47.6 | 1.875 | 3.00 | 0.118 | 18300 | 20100 | 4.37 |
| 3311 | 55 | 2.1654 | 120 | 4.7244 | 49.2 | 1.937 | 52.4 | 2.062 | 3.00 | 0.118 | 21700 | 24300 | 5.34 |
| 3312 | 60 | 2.3622 | 130 | 5.1181 | 54 | 2.126 | 57.1 | 2.25 | 3.5 | 0.138 | 25400 | 28900 | 6.77 |
| 3313 | 65 | 2.5591 | 140 | 5.5118 | 58.7 | 2.311 | 61.9 | 2.437 | 3.5 | 0.138 | 29400 | 34000 | 8.6 |
| 3314 | 70 | 2.7559 | 150 | 5.9055 | 63.5 | 2.500 | 66.7 | 2.625 | 3.5 | 0.138 | 34500 | 38000 | 11.5 |
| 3315 | 75 | 2.9528 | 160 | 6.2992 | 68.3 | 2.689 | 71.4 | 2.812 | 3.5 | 0.138 | 38500 | 43000 | 13.9 |
|
