| Brand Name: | Giant Precision |
| Model Number: | LSN-20-XX-U-I |
| Certification: | ISO9001 |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 set |
| Price: | To Be Negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 20000 Sets per Month |
| Delivery Time: | 3-4 Weeks |
| Packaging Details: | Carton Box |
| Product: | Model 20 Harmonic Reducer |
| Material: | Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants |
| Reduction Ratio: | 50, 80, 100, 120, 160 |
| Backlash: | ≤20 Arc Sec |
| Average Input Speed: | 3500 r/min |
| Maximum Input Speed: | 6500 r/min |
| Design Life: | 15000 hours |
| Model: | 20 |
| Weight: | 0.73kg |
| Application: | Robot, Metal Machine Tools, Humanoid robot, Energy, Aerospace |
| Warranty: | 1 Year |

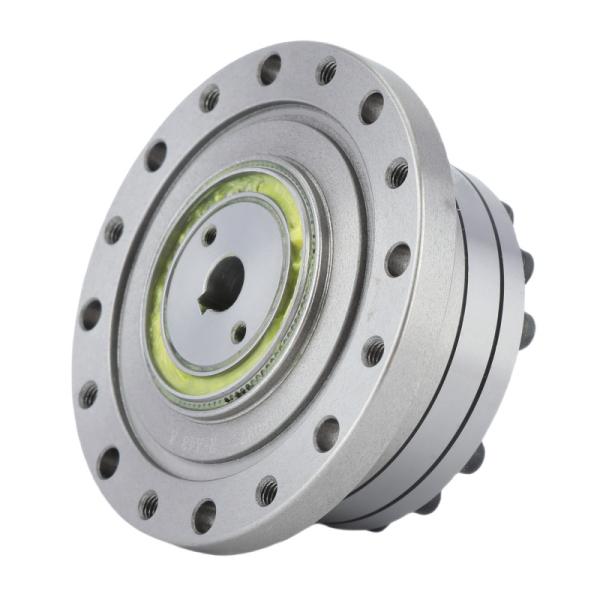

High Reduction Ratio LSN Series Model 20 Strain Wave Reducer 0.73kg Light Weight Gear Units
Key Features
• 0.73kg
• Less than 20 Arc Sec backlash
• Average input speed: 3500 r/min
• 15000 hours service life
• Reduction ratios: 50:1, 80:1, 100:1, 120:1 and 160:1
Specifications
Rated parameters table of LSN-20-XX-U-I series
Model | Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed | Permissible average input rotational speed | Backlash | Weight | Design life | ||||
| Grease | Grease | |||||||||||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | kg | Hour | ||
| 20 | 50 | 25 | 2.5 | 56 | 5.7 | 34 | 3.5 | 98 | 10 | 6500 | 3500 | ≤20 | LSN-I:0.73 | 10000 |
| 80 | 34 | 3.5 | 74 | 7.5 | 47 | 4.8 | 127 | 13 | 15000 | |||||
| 100 | 40 | 4.1 | 82 | 8.4 | 49 | 5 | 147 | 15 | 15000 | |||||
| 120 | 40 | 4.1 | 87 | 8.9 | 49 | 5 | 147 | 15 | 15000 | |||||
| 160 | 40 | 4.1 | 92 | 9.4 | 49 | 5 | 147 | 15 | 15000 | |||||
| Key Attributes of LSN-20-XX-U-I Strain Wave Reducer | |||
| Product | Low Backlash Model 20 Strain Wave Reducer | ||
Material | Steel, Aluminum, Polyurethane, Bearings and Seals, Lubricants | ||
Reduction Ratio | 50, 80, 100, 120, 160 | ||
Backlash | Less than 20 Arc Sec | ||
Average Input Speed | 3500 r/min | ||
Max Input Speed | 6500 r/min | ||
Design Life | 15000 hours | ||
Model | 20 | ||
Weight | 0.73 kg | ||
| Warranty | 1 year | ||
| Application | Metal Machine Tools, Humanoid robot, Energy, Aerospace | ||
PDF Drawings Download
|
