| Model Number: | DW-FMS-3 |
| Place of Origin: | Zhejiang, China |
| Brand Name: | DOWELL |
| MOQ: | 1pieces |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10 PCS Per 7 Days |
| Delivery Time: | 7-15 Days |
| Display: | 3.5" LCD |
| Size: | 78*22*56mm |
| Weight: | 0.875kg |
| Type: | Fiber Microscope |
| Use: | FTTH |
| Network: | None |
| Company Info. |
| DOWELL INDUSTRY GROUP LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
The machine is equipped with large capacity lithium-ion batteries with a capacity of up to 4000 mAh. Standby time is up to 20 hours, which is suitable for the needs of workers who go out for a long time. The machine adopts micro-USB interface, charging standard is 3.7v, charging is more convenient and simpler.
The angle of the bracket can be adjusted by rotation at will, which is stable and convenient. From the perspective of ergonomics, there is no need to watch on a single hand-held screen. ln line with ergonomics, comfortable grip, compact, light and durable. Full enclosure design, cushioning impact friction. Close protection, anti-falling, anti-seismic. Split type design is better on protection, reduce the damage by colliding or dropping in a certain extent
Specification:
| Magnification | 400X | ||
| Resolution (μm ) | surpass 1.0 | ||
| Visual Range (pm) | 0.316*0.285 | ||
| KIP-600V Probe | Dimension (pm) | 235(W)*95(D)*30(H) | |
| Image Sensor | 1/3 480 | ||
| Storage Temperature | -18°C~35°C | ||
| Weight (kg) | 0.11 | ||
| Image | Image Size (mm) | 22 | |
| Pixels | 307200 | ||
| Frequency | 25FPS | ||
| LCD Screen | 960*240 LCD | ||
| Video | Video Output Mode | ntsc / pal | |
| Playback Format | avi | ||
| 3.5-inch LCD | Compatible Memory Cards | tf | |
| Display | User Interface | Capacity | 8GB |
| USB | 1.1/2.0 | ||
| Hard Disk Format | FAT32 | ||
| AC Adapter | DC 5V/2A | ||
| Power Supply | Internal Battery | Lithium battery 4000Mah | |
| Media Player | >1 | ||
| Weight(kg)/W*D*H(mm) | 0.085/78*22*56 | ||
Features:
1.1 Rotary metal bracket,stable and convenient

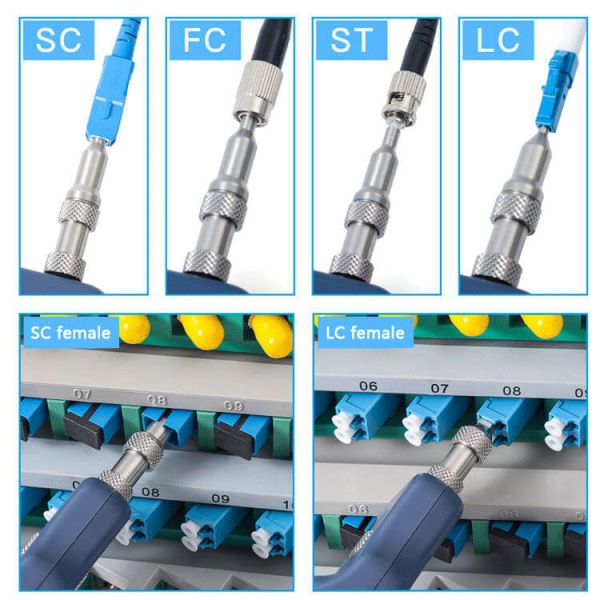

1.2 Compatible / FC/SC/ST/LC/SC female connector/LC male connector
1.3 4000mAh large capacity lithium power,
1.4 20 hours standby
1.5 Real time video,support extend t-flash card,quick check the
pollution degree of female connector and male conector
|
