Portable Fiber Laser Cleaning Machine 2000W For Rust Paint Coating Paint Oil Dust Removing

Categories Laser Cleaning Machine
Brand Name: OTA
Model Number: OTQX-1000
Certification: CE, ISO
Place of Origin: PR.CHINA
MOQ: 1SET
Price: USD2350-USD5980
Payment Terms: L/C, T/T
Supply Ability: 100SETS/MONTH
Delivery Time: 10-15 DAYS
Packaging Details: WOODEN PALLET
Product Name: Fiber Laser Cleaning Machine
Cleaning Depth: 0-1mm
Cleaning Efficiency: ≥99.9%
Control System: PLC
Cooling System: Air Cooling
Laser Pulse Frequency: 1-20KHz
Laser Wavelength: 10.6um
Power Supply: 220V/50Hz
Scanning Angle: 0-360°
Scanning Speed: 1-1000mm/s
Spot Size: 0.1-3mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

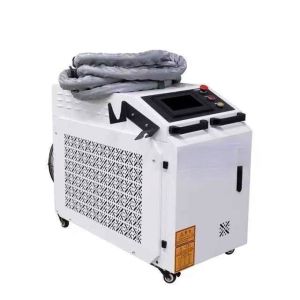

Portable Fiber Laser Cleaning Machine 2000W For Rust Paint Coating Paint Oil Dust Removing

Fiber Laser Cleaning Machine For Rust Paint Coating Paint Oil Dust Removing

Product descriptions:


Laser cleaning machine also called laser rust removal cleaning machine, laser cleaner, mainly use to remove metal rust, painting, oil from metal surface. This laser cleaner is with continuous laser beam, so can clean rust fast.


The shape of the laser beam of the laser cleaning machine is controllable, which does not damage the surface of cultural relics and can effectively clean various product workpieces, including cleaning rusty workpieces, removing paint on the surface of equipment, changing the dullness of oxidation on the surface of objects, etc.


It's widely used for following industries:

1. Rust removal from metal surfaces

2. Surface paint removal and paint removal treatment

3. Clean surface oil, stains and dirt

4. Surface plating and coating are clear

5. Pretreatment of welding surface and spraying surface

6. Remove dust and attachments on the surface of stone statues

7. Cleaning of rubber mold residues

8. Antiques and cultural relics cleaning






Product Specification
ModeOTQX-1000OTQX-1500OTQX-2000OTQX-3000
Laser source power1000w1500w2000w3000w
Laser wavelength1080±10mm
Laser typeContinuous/Modulation
Maximum Modulation Frequency20khz
Cable length10m(15m can be customized)20m(Standard for BLC3000
Scan Width10-160mm
Power configurationAC 220V±10%AC 380V±7%
6KW8KW10KW13KW
Cooling methodWater cooling (Medium:Deionized water,distilled water or purified water )
Machine Dimension845*460*605mm905*480*630mm1240*584*1148m
m
Packing Dimension1120*565*1050mm1430*720*1220m
m
Net weight106kg113kg137kg235kg
Gross Weight138kg145kg169kg280kg
Water tank
Capacity
16L(14-15L of water to be added


Features

1) Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves,thermal stress, etc., causing surface materials to sublimate and evaporate.
2) The focused laser beam is capable of accurately evaporating surface objects or dirt.
3) Fiber Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.
4) By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.
