Adapter N female To NEX-10 female

Categories RF Connector Adapter
Brand Name: Vinncom
Model Number: VN-ADR-NF-NEX10F
Certification: RoHS/ISO9000
Place of Origin: China
MOQ: 5pcs
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50pcs per day
Delivery Time: depends on your quantity
Packaging Details: foam+box
Frequency Range: DC-3GHz
Characteristic Impedance: 50
Insertion Loss: ≤0.05
Dielectric Resistance: ≥5000MΩ
Temperature Range: -40℃~+85℃
VSWR: ≤1.10
Dielectric Withstanding Voltage: ≥750V RMS,50Hz,at sea level
PIM ( @2-tonex20w): ≤-155dBc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Adapter N female To NEX-10 female

Adapter N female To NEX-10 female


  • Good VSWR
  • Wide band frequency
  • Low PIM

SPECIFICATION

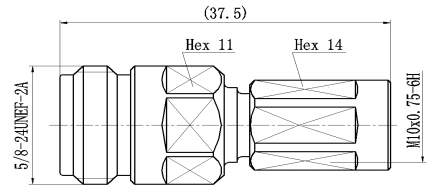

Dimensions are in millimeters
Interface
According toIEC 60169-16(N)
Electrical
Characteristic Impedance50 ohm
Frequency RangeDC-3GHz
VSWR≤1.10
PIM ( @2-tonex20w)≤-155dBC
Insertion Loss≤0.05*√fdB
Dielectric Withstanding Voltage≥750V RMS,50Hz,at sea level
Dielectric Resistance≥5000MΩ
Contact ResistanceCenter Contact ≤2.5mΩ
Outer Contact ≤3.0mΩ
Mechanical
DurabilityMating cycles ≥100 cycles
Material and plating
Materialplating
BodyBrassTri-Alloy
InsulatorPTFE-
Center conductorPhosphor bronzeAg
Environmental
Temperature Range-40℃~+85℃
Rosh-complianceFull ROHS compliance
Salt-fog test96h
