Name: Thermocouple Extension Compensating Alloy Wire For Type J Temperature With High Thermal EWF Range
Brand: Senphus
Price: 1 USD

Categories

Thermocouple Extension Alloy

Brand Name:

Senphus

Model Number:

JX Thermocouple Extension Compensating

Certification:

SGS, ISO9001

Place of Origin:

China

MOQ:

5kg

Payment Terms:

T/T, D/P

Supply Ability:

30 tons per day

Delivery Time:

3 days

Packaging Details:

Packed with waterproof paper or weave bag, into pallets or wooden case. Special packaging requirements can also be accommodated.

Name:

JX Thermocouple Extension Compensating Alloy Wire

Emf Tolerance:

+/- 1.0C Or +/- .75%

Conductor Color:

Red and Yellow

Shielding Material:

Tinned Copper Braid

Color:

Red, Blue, Yellow, Green, White, Etc.

Certifications:

ISO, CE, RoHS, Etc.

Number Of Cores:

2, 4, 6, 8, Or Custom

Insulation Color:

White

Insulation Material:

Fiberglass

Temperature Range:

-200°C to 1260°C

Current Rating:

Jacket Color:

Black

Conductor Material:

Nickel-Chromium

Type:

SNX, SPX

Conductor Type:

Solid Or Stranded

Wire Material:

Type K Thermocouple Alloy

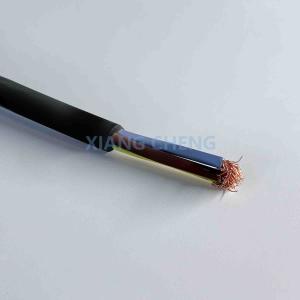

Thermocouple Extension Compensating Alloy Wire For Type J Temperature With High Thermal EWF Range

Thermocouple Extension Compensating Alloy Wire For Type J Temperature With High Thermal EWF Range

Thermocouple extension compensating wires are essential for connecting thermocouples to measuring instruments while maintaining the accuracy of temperature readings over extended distances. For Type J thermocouples, which use Iron (Fe) for the positive leg and Constantan (CuNi) for the negative leg, JX extension wires are designed to extend the thermocouple leads while compensating for the thermoelectric properties of the original thermocouple materials.

EMF of compensating wire and the tolerance

Themocouple No. indexing	Compensation wire tpye	Usag Classification	Measuring junction temperature/℃	Standard EMF value/μV	Precision grade		General grade
					Tolerance μV	Thermal EWF range μV	Tolerance μV	Thermal EWF range μV
J	JX	G	-25	-1239	±62	-1177~-1301	±123	-1116~-1362
			100	5269		5207~5331		5146~5392
		H	-25	-1239	±62	-1177~-1301	±123	-1116~-1362
			100	5269		5207~5331		5146~5392
			200	10779		10717~10841		10656~10902

Compensating wire reciprocating resistance

Compensation wire type	Reciprocating resistance at 20℃ Ω/m (Less than)
Compensation wire type	0.2mm²	0.5mm²	1.0mm²	1.5mm²	2.5mm²
JX	3.25	1.3	0.65	0.43	0.26

JX Alloy Extension Wire

Composition: JX extension wire is made from alloys designed to match the thermoelectric properties of Iron (Fe) and Constantan (CuNi) to maintain the accuracy of the Type J thermocouple.
Properties: JX extension wires are specifically formulated to ensure that the thermocouple signal is transmitted accurately over long distances, without altering the temperature readings.
Applications: Used to extend the leads of Type J thermocouples while ensuring the accurate transmission of temperature data from remote locations to the measuring instrument.

Key Properties of JX Extension Wire:

Accuracy: JX extension wire is designed to maintain the original thermoelectric properties of the Type J thermocouple, ensuring accurate temperature measurement even at longer distances.
Temperature Range Compatibility: These extension wires are optimized to match the temperature range of Type J thermocouples, typically from -40°C to 750°C.
Corrosion and Oxidation Resistance: JX wires are designed to resist oxidation and corrosion, ensuring long-term reliability in various industrial environments.
Durability: The wires are durable and able to withstand temperature fluctuations, mechanical stress, and environmental conditions without degrading their performance.

Applications of JX Extension Wire:

Industrial Temperature Monitoring: Used in furnaces, ovens, and heat treatment systems for temperature control and monitoring.
Laboratories and Research: Commonly used in laboratory settings for temperature measurements, especially in controlled environments.
Process Control: Employed in various manufacturing processes where precise temperature measurement is essential for quality control.

Conclusion:

JX thermocouple extension compensating alloy wire provides a reliable solution for extending Type J thermocouple leads without compromising the accuracy of the temperature readings. The alloy ensures that the thermoelectric properties of the Type J thermocouple are maintained over extended distances, making it ideal for a variety of industrial, laboratory, and research applications. The JX wire offers excellent resistance to oxidation and corrosion, ensuring durability and performance even in demanding environments. Whether used in temperature monitoring systems or process control, JX extension wire guarantees precise and reliable temperature measurements.
