Name: Balcony Micro Inverter System with WIFIRS485 Communication and 999 MPPT Efficiency
Brand: Tripsolar
Price: 72.52 USD

Home > Coal >

Balcony Micro Inverter System with WIFI/RS485 Communication and 99.9% MPPT Efficiency

Categories	Solar Inverter
Place of Origin:	Fujian, China
Brand Name:	Tripsolar
Model Number:	TP-MI
Input Voltage:	33-60V and so on
Output Voltage:	120/230V Auto Switch and so on
Output Current:	26.6A/8.7A and so on
Output Frequency:	47~52/57~62HZ and so on
Output Type:	Single
Size:	370mm300mm41.6mm and so on
Type:	DC/DC Converters
Inverter Efficiency:	>94%
Certificate:	VDE, CEC, CE, INMETOR, ETL
Warranty:	12 months
Weight:	3.6kg and so on
Product name:	Micro Inverter
Application:	Solar Power System
Protection:	IP65
Communication:	WIFI / RS485
Color:	Silver or Customization
OEM:	Avaliable
MPPT Efficiency:	99. 9%
Efficiency:	95%
Installation Style:	Home Industry
Cooling:	Smart Cooling
Packaging Details:	Carton/Pallet
Price:	$72.52 - $239.38/sets
MOQ:	10

Contact Now

Add to Cart

Company Info.

Xiamen Trip Solar Trade Co.,ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

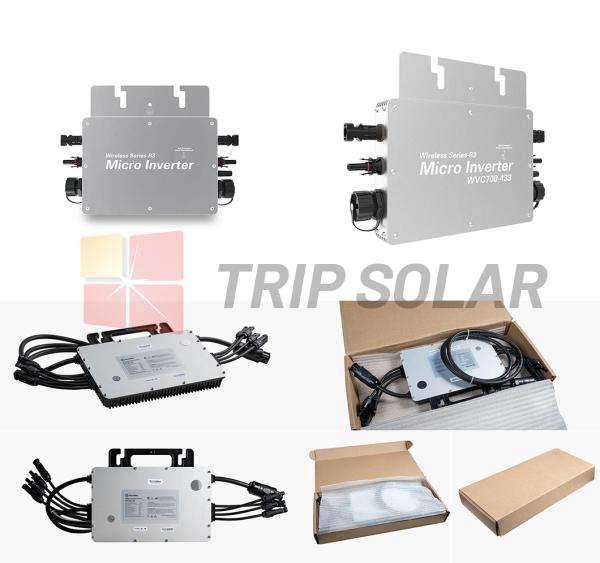

Balcony Micro Inverter System with WIFI/RS485 Communication and 99.9% MPPT Efficiency

Products Description

Parameter

Take 600W as an example

Model	WVC-600(R3)
Maximum input power	2*375W
Output voltage mode	120V/230V automatic switching
Solar panel open circuit voltage range	30-60V
Peak power tracking voltage	22-60V
Min/Max starting voltage	22-60V
Maximum DC short circuit current	30A
Output parameters	@120V	@230V
Peak output power	630Watt	630Watt
Rated output power	600Watt	600Watt
Rated output current	5A	2.6A
Rated voltage range	80-160VAC	180-280VAC
Rated frequency range	48-51Hz/58-61Hz	48-51Hz/58-61Hz
Power Factor	>99%	>99%
Number of circuit connections per string	6 sets (single phase)	12 sets (single phase)
Output efficiency	@120V	@230V
Static MPPT efficiency	99.5%	99.5%
Maximum output efficiency	95%	95%
Power loss at night	<1W	<1W
Total harmonic distortion	<5%	<5%
Appearance and technical characteristics
Range of working temperature	-40 ℃ to +65 ℃
Size(mm)	28320042
Net weight	1.56kg
Waterproof level	IP65
Cooling method	Self-cooling
Communication mode	433Mhz communication mode
Power transmission mode	Reverse transmission, load priority
Surveillance system	Mobile App, Browser
Electromagnetic Compatibility	EN50081.Party EN50082.Party 1
Grid disturbance	EN61000-3-2 Safety Regulation 62109
Grid detection	DIN VDE 0126
Certificate	CE, CEC, VDE, appearance patent
Package weight
Specification	Single (packaging)	FCL (15 units)
Gross weight	2.2Kg	4.5Kg
Size(mm)	342375140	440380260
