Smart Plastic Card Signature Panel Hot Stamping Machine PLC Controlled YHS-1

Smart Plastic Card Signature Panel Hot-Stamping Machine YHS-1

Automatic Card Hot Stamping Machine/ Card Hologram Foil Stamping Machine/Card Signature Panel Stamping Machine YHS-1

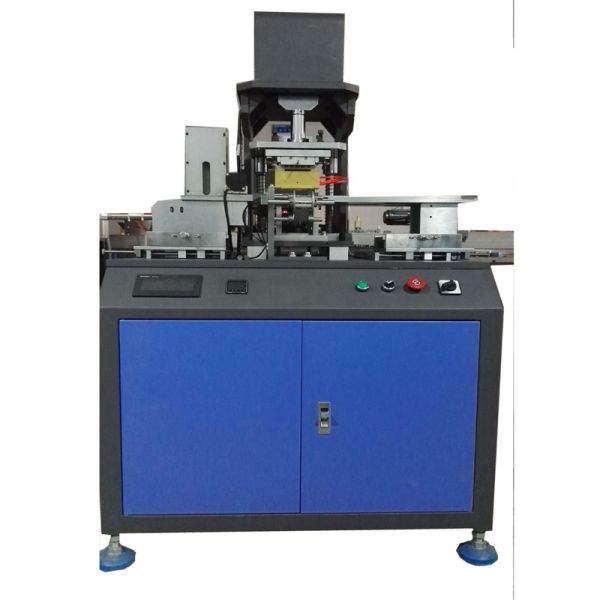

1. Introduction of Smart Plastic Card Signature Panel Hot-Stamping Machine YHS-1

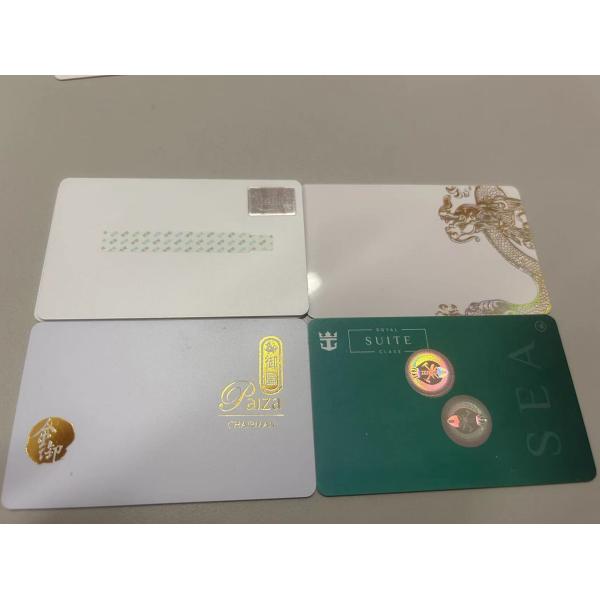

This machine is specially designed for hot stamping the anti-fake hologram or signature panel for plastic cards, and it can also stamp the words and patterns with gold or silver foil as well as scratch-off foil stamping on cards surface. It is controlled by PLC with friendly man-machine interface. It features high speed, good stamping quality and precise location.

2. Features of Smart Plastic Card Signature Panel Hot-Stamping Machine YHS-1

1. ) It applies high-quality servo motor as operation power to ensure good stability and quality stamping. Running speed and pressing stroke are adjustable.
2. ) Stepping distance for gilding film can be adjusted.
3. ) PLC control is adopted for reliable automatic running, and the machine will halt and alarm automatically in case of no card or failure occurring.
4. ) High-quality imported temperature controller is used to control the hot stamping temperature for better stamping quality.

3. Technical Parameter of Smart Plastic Card Signature Panel Hot-Stamping Machine YHS-1

1). Power supply: AC 220V, 50/60 Hz

2). Dimensions (LxWxH): 1200×820×1580mm

3). Weight: around 390 kg

4). Control mode: PLC+ stepping system

5). Compressed air: 6 KG/cm2 30L/min

6). Speed: 3000 cards per hour

7). Material: CR80 cards 0.50-0.85 mm thick

8). Power: 2.5KW

9). Position accuracy: ±0.2mm

10). Stamping temperature range: 120-180 centigrade degrees (normally 140-150)

11). Stamping area on card surface: no more than 48mm in card width direction and no more than 80mm in card length direction.

4. Application of Smart Plastic Card Signature Panel Hot-Stamping Machine YHS-1

The machine doen't inculde the hot-stamping dies,the seller can make the die according to customers's drawing,then hot stamped the different size and logo according to customers' request.
