| Model NO.: | Aluminum Clad Steel Wire |
| Material Shape: | Round Wire |
| Range of Application: | Overhead |
| Certification: | ISO9001, CE, SGS TUV |
| Brand: | Ume |
| Third Party Inspection: | Accepted |
| Sample: | Free |
| Color: | Customer Specified |
| OEM: | Accepted |
| Transport Package: | Drum |
| Specification: | Aluminum Clad Steel Strand |
| Trademark: | UME |
| Origin: | China |
| HS Code: | 7217309000 |
| Supply Ability: | 500, 000km Per Month |
| Type: | Bare |
| Conductor Type: | Solid |
| Application: | Overhead |
| Conductor Material: | Aluminum Clad Steel |
| Sheath Material: | None |
| Insulation Material: | None |
| Samples: | US$ 1/Piece 1 Piece(Min.Order) | Request Samp |
| Company Info. |
| HENAN UME CABLE CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export
to over 50 countries.


1. Applications
Aluminum clad steel wire is used by power utilities as well as
formed wire and optical ground wire manufacturers. Aluminum clad
steel wire outlasts other options in corrosive environments,
significantly lowering maintenance and replacement costs. When
compared to solid aluminum wire, aluminum clad steel wire offers
tremendous savings.
2. Construction

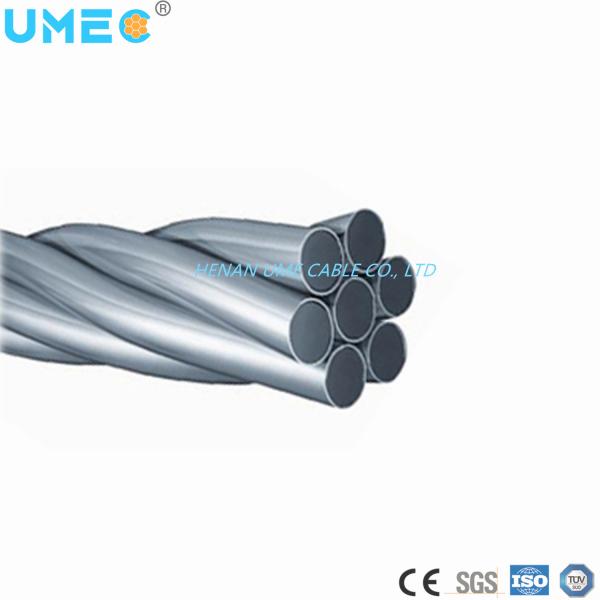

Aluminum clad steel wire is a kind of bimetallic wire that aluminum
covers on the steel core continuously and evenly. Compared with
ordinary aluminum cable steel reinforced, the conductor weight is
5% lighter, current-carrying capacity is 2-3% higher.
3. Standard
ASTM B416, DIN 48201, ASTM B415
| Nominal Diameter | Area | Min Tensile Strength | Calculated Breaking Load | Min Coating Thickness | Max D.C Resistance at 20 degree | Weight | |
| mm | AWG | Mm2 | Mpa | KN | mm | Ohm/KM | Kg/Km |
| 2.052 | 12 | 3.307 | 1340 | 4.5 | 0.103 | 25.64 | 21.8 |
| 2.304 | 11 | 4.169 | 1340 | 5.6 | 0.115 | 20.34 | 27.49 |
| 2.589 | 10 | 5.26 | 1340 | 7.1 | 0.13 | 16.12 | 34.66 |
| 2.904 | 9 | 6.633 | 1340 | 8.9 | 0.145 | 12.78 | 43.65 |
| 3.264 | 8 | 8.367 | 1340 | 11.2 | 0.163 | 10.14 | 55.14 |
| 3.477 | 7 | 9.495 | 1310 | 12.4 | 0.174 | 8.93 | 62.57 |
| 3.665 | 7 | 10.55 | 1280 | 13.5 | 0.183 | 8.04 | 69.48 |
| 3.934 | 6 | 12.16 | 1240 | 15.1 | 0.197 | 6.93 | 80.13 |
| 4.115 | 6 | 13.3 | 1210 | 16 | 0.206 | 6.38 | 87.62 |
| 4.392 | 5 | 15.15 | 1170 | 17.7 | 0.22 | 5.6 | 99.84 |
| 4.62 | 5 | 16.76 | 1140 | 19.1 | 0.231 | 5.06 | 110.5 |
| 4.775 | 4 | 17.91 | 1100 | 19.7 | 0.239 | 4.73 | 118 |
| 5.189 | 4 | 21.15 | 1070 | 22.6 | 0.259 | 4.01 | 139.34 |
Code Number | Area | No. of wires | Diameters(mm) | Weight | Rated Strength | DC Resistance | |
mm2 | mm2 | wire | conductor | kg/km | kN | ohm/km | |
25 | 24.25 | 7 | 2.1 | 6.3 | 162 | 31.56 | 3.546 |
35 | 34.36 | 7 | 2.5 | 7.5 | 229 | 44.72 | 2.499 |
50 | 49.48 | 7 | 3 | 9 | 330 | 64.4 | 1.736 |
70 | 65.81 | 19 | 2.1 | 10.5 | 441 | 85.65 | 1.313 |
95 | 93.27 | 19 | 2.5 | 12.5 | 626 | 121.39 | 0.925 |
120 | 116.99 | 19 | 2.8 | 14 | 785 | 152.26 | 0.737 |
150 | 147.11 | 37 | 2.25 | 15.7 | 990 | 191.46 | 0.587 |
185 | 181.62 | 37 | 2.5 | 17.5 | 1221 | 236.38 | 0.476 |
240 | 242.54 | 61 | 2.25 | 20.2 | 1635 | 299.05 | 0.357 |
300 | 299.43 | 61 | 2.5 | 22.5 | 2017 | 369.2 | 0.289 |
HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
Production:






Q1: Are you a manufacturer?
Yes, we are the manufacturer.
Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel),
CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s'
Conductor.
Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free
Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products
have CE certificates.
Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East,
Southeast Asia, South America, Central America, North America,
Europe, Australia, etc.
Q6: What is your payment term?
T/T or L/C
Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is
7-30days if the goods are not in stock, it is according to
quantity.
|
