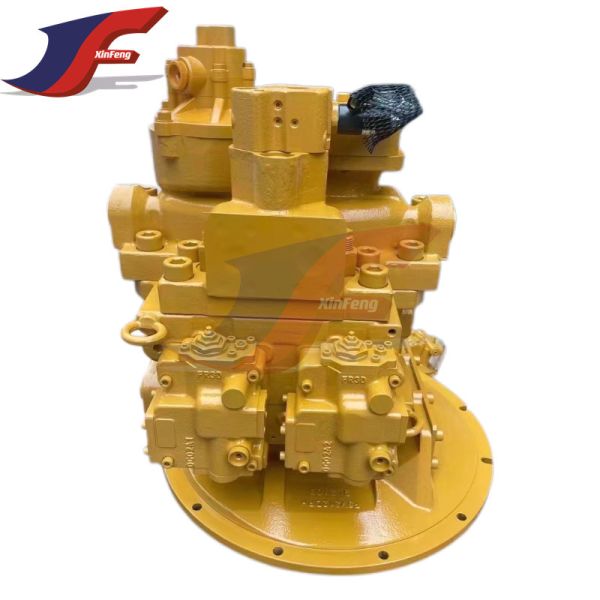

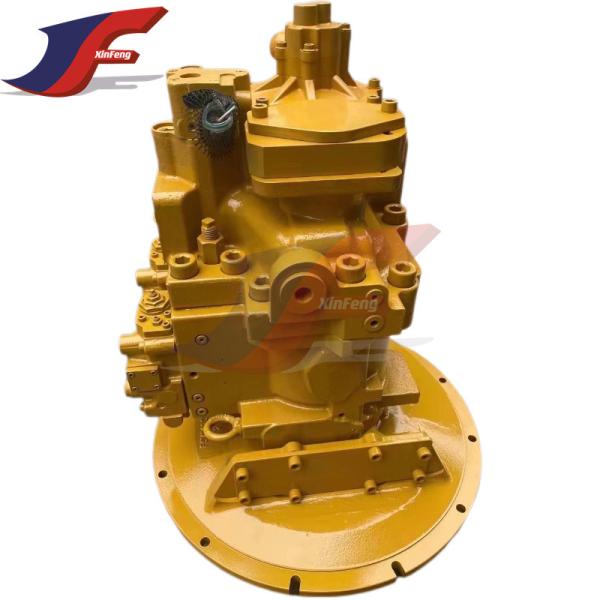

345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator

Categories Excavator Hydraulic Pump
Model Number: 345D E349D
Certifiion: ISO9001
Place of Origin: China
MOQ: 1 Sets
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500-Sets/month
Delivery Time: 3-5 days
Packaging Details: Wooden Case Packing
Product name: 345D E349D
Part number: 295-9663
Video outgoing-inspection: Provided
Warranty: 6 Months
Packing: Wooden box,standar packing with safety
Product class: Excavator Main Pump
Quality: Good quality
Place Of Origin: Guangzhou China
Delivery time: 2-3 Working Days
Weight: 180KG
MOQ: 1 Piece
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator

345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 for excavator

Product Descriptio

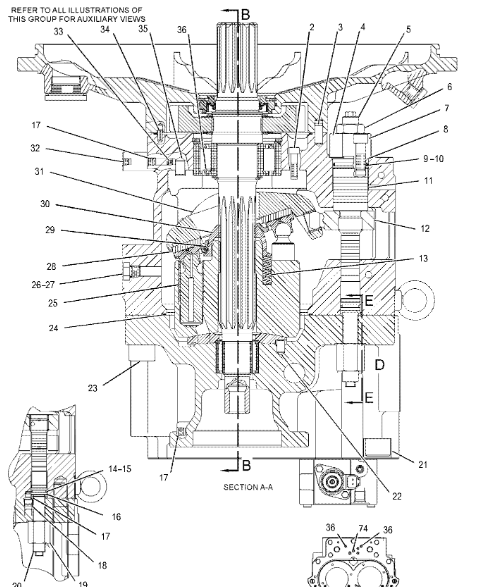

Pos.Part NoQtyParts nameComments
1295-9693[1]BEARING-NEEDLE
2252-9167 M[8]BOLT-SOCKET HEAD (M8X1.25X30-MM)
3247-8985[4]DOWEL
4247-8729[2]COVER
5242-6919 M[2]SETSCREW (M20X2.5X56-MM)
6451-2184 M[2]NUT (M20X2.5-THD)
76V-8200 M[8]BOLT-SOCKET HEAD (M12X1.75X35-MM)
87I-8166[2]STOPPER
9109-1296[2]SEAL-O-RING
107I-8172[2]RING-BACKUP
11242-6914[2]PISTON-SERVO
12247-8712[2]PIN AS
13295-9506[18]SPRING
14109-1294[2]SEAL-O-RING
157I-8171[2]RING-BACKUP
16242-6915[2]STOPPER
17095-0965[12]PLUG
18095-0966[2]PLUG
19242-6918 M[2]NUT (M20X2.5-THD)
20200-3292 M[2]SETSCREW (M20X2.5X90-MM)
21249-1308 M[1]BOLT-SOCKET HEAD (M22X2.5X180-MM)
22234-4539[2]DOWEL
23249-1306 M[9]BOLT-SOCKET HEAD (M22X2.5X60-MM)
24326-4415[2]GASKET
25295-9518[2]PISTON AS
26110-5525[4]PLUG
27214-7568[4]SEAL-O-RING
28295-9510[2]PLATE
29295-9504[2]PLATE
30295-9505[2]RETAINER-BALL
31295-9521[2]SWASHPLATE AS
327I-8084[21]PLUG
337I-8164[4]ORIFICE (1/16-NPTF)
34095-0882[4]PIN-SPRING
35247-8786[2]DOWEL
36347-6530[9]SEAL-RECTANGULAR
37295-9695[1]SEAL-LIP TYPE
38095-0944[1]RING-RETAINING
39249-6657[1]SEAL-O-RING
40295-9508[1]GEAR-DRIVE (31-TEETH)
41295-9509[1]GEAR-DRIVEN (31-TEETH)
428T-4241[2]RING-RETAINING
43295-9501[1]SPACER (49.5X73X3-MM THK)
44295-9507[1]FLANGE
45096-5516[2]RING-RETAINING (EXTERNAL)
468T-0343 M[11]BOLT-SOCKET HEAD (M12X1.75X55-MM)
47295-9502[2]SPACER (55X69X3-MM THK)
48295-9516[1]RING
49295-9503[1]SPACER (104X120X3.2-MM THK)
50295-9500[1]BEARING-ROLLER
51295-9511[1]PLATE
52295-9499[1]SHAFT-DRIVEN
53322-8736[1]BODY
54311-9506[1]BARREL AS-PUMP
55247-8715[1]BEARING-NEEDLE
56247-8721[1]IMPELLER
57247-8730[1]RING-RETAINING
58247-8944[1]BUSHING
59295-9694[1]BLOCK-PORT
60249-1307 M[2]BOLT-SOCKET HEAD (M22X2.5X95-MM)
61311-9505[1]BARREL AS-PUMP
62247-8719[1]SPACER (50X64X3-MM THK)
63247-8725[1]PLATE
64247-8713[1]BEARING-ROLLER
658T-9080 M[8]BOLT-SOCKET HEAD (M12X1.75X20-MM)
66249-6670[1]SEAL-O-RING
67295-9512[1]COVER
68247-8720[1]SPACER (95X110X3.2-MM THK)
69247-8787[1]RING-RETAINING
70247-8717[2]SPACER (65X90X1-MM THK)
71095-0929[2]RING-RETAINING
72247-8726[1]COVER
73295-9498[1]SHAFT-DRIVE
74206-9291[2]SEAL-O-RING
75295-9517[1]DOWEL
76295-9497 Y[2]HEAD GP-PUMP
77289-7912 Y[1]PUMP GP-GEAR (PILOT)
78225-4518 Y[1]VALVE GP-SOLENOID (PUMP CONTROL)




Product Paramenters


Maintainance

Carter excavator is a heavy-duty construction machinery, and regular maintenance is very important for its normal operation and extended service life. Here are some maintenance recommendations for Carter excavators:

Cleaning: Regularly clean the external and internal parts of the excavator, including the body, engine, hydraulic system, etc. Use a high-pressure water gun or air pressure spray gun to remove dust, mud and other debris.
Lubriion: Make sure that all lubriion points of the excavator are properly lubried. Use appropriate lubricants and lubrie according to the manufacturer's recommendations.
Hydraulic system: Regularly check the oil level and oil quality of the hydraulic system. If necessary, replace the hydraulic oil and check whether the seals of the hydraulic system are intact. Ensure the normal operation of the hydraulic system to avoid failures and leaks.
Engine: Regularly replace the engine oil and filter. Check the water level and quality of the coolant and ensure the normal operation of the cooling system. Regularly check the engine's belts, batteries and wire connections to ensure that they are working properly.
Air system: Check the excavator's air system, including the air filter and air intake. Clean or replace blocked or damaged filters, and ensure that the air intake is unobstructed to keep the engine running normally.
Tires or tracks: Check the wear of the excavator's tires or tracks and replace them as needed. Ensure the proper condition of the tires or tracks to provide good traction and stability.
Control system: Regularly check the excavator's control system, including joysticks, pedals and dashboard. Ensure that all controllers and instruments are working properly and repair any malfunctions in a timely manner.



About Xinfeng Machinery (XF) parts:






Advantages


Warehouse Display



Packaging and Delivery



FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.

2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998


3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.

4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.


5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

6. Which shipping term you can supply?

A: By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)


7. What is your MOQ?
A: Small order and sample order are acceptable


8. Do you have any After-Sales service?
A: Yes!Our
