| Categories | Expansion I/O Module |
|---|---|
| Brand Name: | DECOWELL |

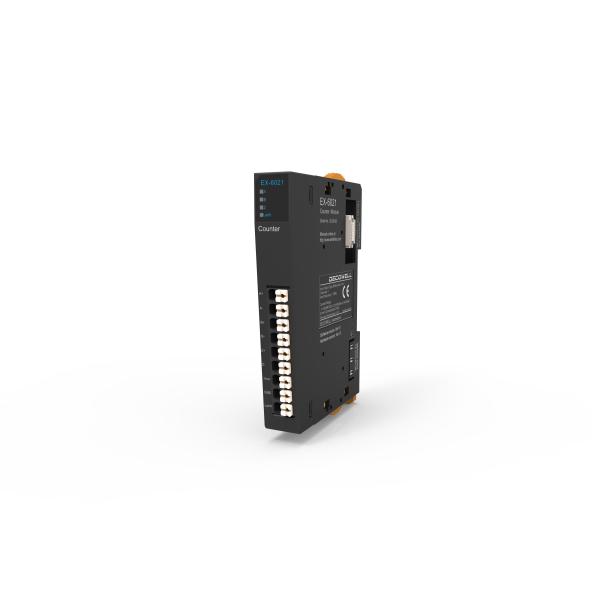

| Model Number: | EX-6021 |
| Certification: | CE/ISO9001/UL |
| Place of Origin: | China nanjing |
| MOQ: | 1 pieces |
| Price: | USD $ 55.2-78.86 |
| Payment Terms: | 5-8 word days |
| Supply Ability: | 1000000pieces/Year |
| Delivery Time: | 5-8 workdays |
| Packaging Details: | Carton packing,LxW90x67x14mm. |
| material: | ABS+PC |
| Customize or not: | customized |
| Protection Class: | IP20 |
| Operating ambient temperature: | -10℃-55℃ |
| Storage Temperature: | -20~85ºC |
| Company Info. |
| Nanjing Decowell Automation Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Product name | Single channel differential encoder module |
| Current Consumption | 75mA |
| System power supply voltage | 5V DC(±10%) |
| I/O power supply input voltage | 24VDC(±20%) |
| Input Signal Type | differential |
| Counting range | 0 ~ 4294967295or- 2147483648 ~ 2147483648 |
| Power supply input | 5VDC(±10%)/150mA 24VDC(±10%)/400mA |
| Maximum input frequency | 1MHz |
| Maximum connection distance of a signal cable | 10M/2M |
| Dimensions | Length, width and height: 90mm*67mm*14mm |
| Temperature range | 0 ~ 55℃ |
| Storing Temperature | -20 ~ 85℃ |
| Relative humidity | 95% No Condensation |
| Protection grade | IP20 |

|
