Integrated Automatic Bridge Cutting Machine For Precise Cutting

Categories Bridge Saw Cutting Machine
Warranty: 1 Year
Product Name: Bridge Cutting Machine
Blade Diameter: 350-600mm
Water Consumption: 3m3/H
Power Supply: AC
Outline Dimension: 6000*3600*2950mm
Gross Weight: 7000kg
Gross power: 20.5kw
Brand Name: Xianda Machinery
Model Number: ZDBL-450/600
Place of Origin: Jinjiang, Fujian, China
Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
MOQ: 1
Price: To Be Negotiable
Packaging Details: Plastic Package, Suitable for Sea Transportation
Delivery Time: 1 month
Payment Terms: L/C, T/T, D/P, ,Paypal ,, Others
Supply Ability: 1000 Sets/Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Integrated Automatic Bridge Cutting Machine For Precise Cutting

Integrated Automatic Bridge Cutting Machine For Precise Cutting
Product Specifications
AttributeValue
Warranty1 Year
Product NameBridge Cutting Machine
Blade Diameter350-600mm
Water Consumption3m³/H
Power SupplyAC
Outline Dimension6000×3600×2950mm
Gross Weight7000kg
Gross Power20.5kw
Product Description
This advanced bridge cutting machine features a PLC system with human-machine intelligent operation interface. The main host utilizes double hydraulic lifting combined with chrome guide sleeves for minimal clearance, durability, and aesthetic appeal. The multi-layer seal design in the guide sleeves provides excellent water, dust, and leak protection. The side beam incorporates high-precision linear slide tracks, with all movements (left-right, forward-backward) precisely controlled by encoders.
Technical Parameters
ParameterUnitZDBL-450ZDBL-600
Blade diameter rangemm350-450350-600
Max processing sizemm3200×2000×1003200×2000×170
Worktable sizemm3200×20003200×2000
Worktable tilting degree°0-85°0-85°
Blade rotation degree°0-90°0-90°
Blade tilting (optional)°0/45°(optional)0/45°(optional)
Water consumptionm³/h33
Main motorkw15 (Permanent magnet motor)15 (Permanent magnet motor)
Gross powerkw20.520.5
Outline dimensionmm6000×3600×26506000×3600×2950
Gross weightkg65007000
Product Images

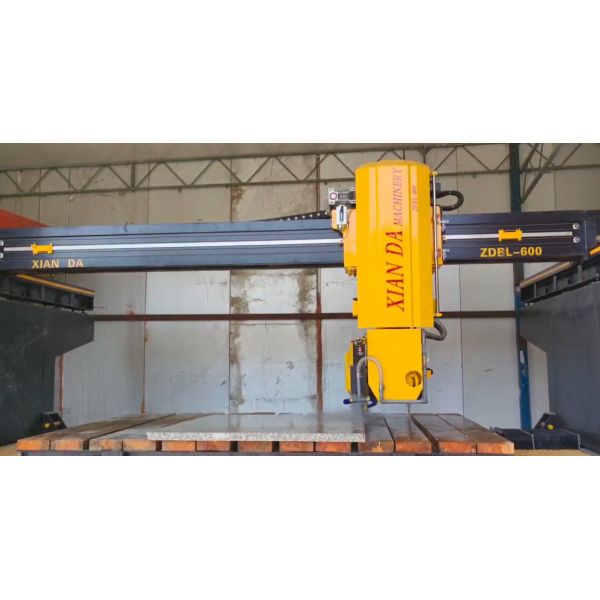

Quality Integrated Automatic Bridge Cutting Machine For Precise Cutting wholesale
