| Categories | CTP Plate Machine |
|---|---|
| Brand Name: | EcooGraphix |
| Model Number: | ECOO T-400Q V/X |
| Certification: | ISO9000, CE |
| Place of Origin: | China |
| MOQ: | 1 SET |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500 Sets/Year |
| Delivery Time: | 30 DAYS |
| Packaging Details: | Standard Export Packing |
| Machine Speed(plates/hour): | 45/55 |
| Plate sensitivity: | 800 x 660mm, 2400dpi |
| Plate Size: | Max. 800mm x 660mm, Min. 300mm x 300mm |
| Resolution: | Standard: 2400 dpi or 1200 dpi |
| Plate Loading: | Standard: single cassette autoloader with manual plate insert function |
| Machine Size (W x Lx H)mm: | 1450x1950x1290 (additional 600mm length for conveyor to wash unit) |
| Configuration: | Online CTP Plate Making System with punching and autoloader |
| Plate Type: | 830nm Thermal CTP plate |
| Company Info. |
| Hangzhou Ecoographix Digital Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

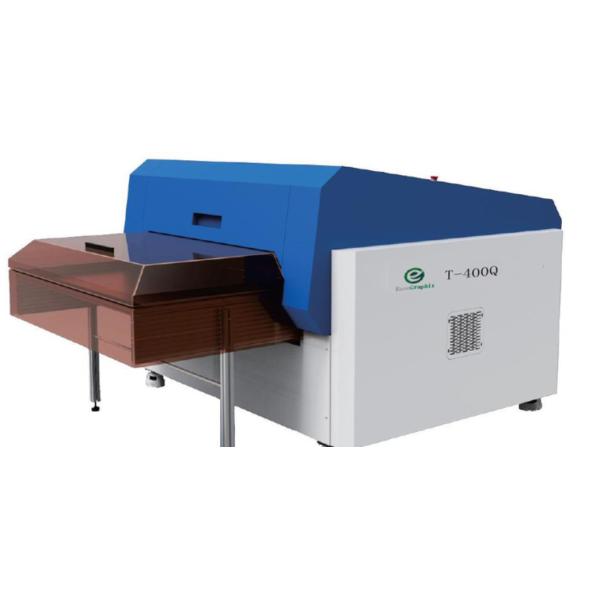

Thermal Full-Automatic Online CTP Plate-Making Machine
With square screen imaging technology adopted, reach saturation increased by 21% and fineness and precision ten times higher than the original; With linear motor high-precision positioning equipped, achieve longer service life and lower operation and maintenance costs for customers.
Technical Advantages
Break through the traditional optical fiber technology limitation, and divide a laser beam into 256 channels of small laser beams that can be separately controlled, doubling the output speed; the square screen dot printed on the plate, with sharp edge feature and a rectangular-step-shaped distribution of energy, makes the image clearer, 10 times more accurate than 200lpi AM screening and the color saturation is increased by over 21%.
Specifications
| T-400 QS Specifications | |
| Model | T-400QS |
| Exposing Method | External Drum |
| Imaging System | 825nm laser |
| Throughput
 | 25plates/hour |
| 800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm² | |
| Plate Sizes | Max. 800mm x 660mm Min. 300mm x 300mm |
| Plate Thickness | 0.15mm, 0.30mm |
| Resolution | Standard: 2400 dpi or 1200 dpi |
| Repeatability | 0.01mm |
| Interface | Optical Fiber(Fiber-way) |
| Plate Loading | Standard: single cassette autoloader with manual plate insert function |
| Inline Punching System | Optional: Internal punching (maximum four sets of plate holes) |
| Machine Size (W x Lx H)mm | 1450x1950x1290 (additional 600mm length for conveyor to wash unit) |
| Power Supply | CTP(single phase: 220V, Max power(Peak Value): 4KW) Simplified Autoloader(single phase: 220V; Max power(Peak Value): 900W) Multi-cassette Autoloader(single phase: 220V; Max power(Peak Value): 1100W) |
| Operation Environment | Recommended:21-25℃ Allowable Temperature: 15-30℃ Relative Humidity:40-70% |
|   |
