| Brand Name: | JIETENG |
| Model Number: | Encoder Precision Pcb |
| Place of Origin: | China Shenzhen |
| Certification: | UL ROHS TS16949 |
| Silkscreen Color: | White |
| Solder Mask Color: | Green |
| Test Method: | Flying Probe Test |
| PCB Layer: | 8-Layer |
| Surface Finish: | HASL, ENIG |
| Product Name: | Product Name: Encoder Precision PCB Surface Treatment: HASL Minimum Aperture: 0.2mm PCB Material: FR4 HF Material PCB Layers: 8 Layers Silk Screen Color: White This product is a printed circuit board assembly, providing prototype PCB assembly manufacturing |
| PCB Material: | FR4 HF Material |
| PCB Thickness: | 3.0mm |

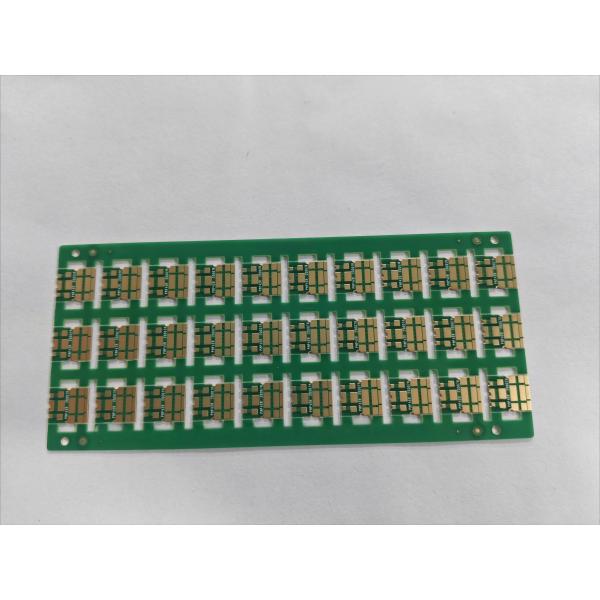

Product Name: Encoder Precision PCB
Surface Treatment: HASL
Minimum Aperture: 0.2mm
PCB Material: FR4 HF Material
PCB Layers: 8 Layers
Silk Screen Color: White
This product is a printed circuit board assembly, providing
prototype PCB assembly manufacturing services. It features HASL
surface treatment, minimum aperture of 0.2mm, and 8-layer PCB made
of FR4 HF material. The silk screen color is white.
| PCB Material | FR4 HF Material |
| PCB Layer | 8-Layer |
| Min Hole Size | 0.2mm |
| Test Method | Flying Probe Test |
| Copper Weight | 1oz |
| Solder Mask Color | Green |
| Silkscreen Color | White |
| PCB Thickness | 3.0mm |
| Surface Finish | HASL |
| Product Name | Encoder Precision Pcb |
The encoder precision PCB is ideal for a variety of applications,
including industrial automation, robotics, and medical devices.
The JIETENG prototype PCB assembly has a copper weight of 1 ounce,
and the product uses a flying probe test method to ensure that it
meets the highest quality control and reliability standards.
It is suitable for a variety of scenarios, including prototyping,
product development, and small-scale production runs. This product
is ideal for applications that require high precision and accuracy,
such as telecommunications, computer hardware, and consumer
electronics.
Q: How long is the lead time for JIETENG Prototype PCB Assembly?
A: The lead time for JIETENG Prototype PCB Assembly is usually
10-13 working days, depending on the complexity of the design and
the order quantity.
Q: Does JIETENG Prototype PCB Assembly offer any customization
options?
A: Yes, JIETENG Prototype PCB Assembly provides Gerber files and
technical requirements. Such as PCB material, thickness, copper
surface, mask and silk screen color, etc.
Q: Where is JIETENG Prototype PCB Assembly manufactured?
A: JIETENG Prototype PCB Assembly is manufactured in Shenzhen,
China.
Q. What file formats are accepted for PCB production?
A: Gerber files: CAM350 PCB files: Protel 99SE, PADS, CAD, Altium
Designer.
Q. Are my files safe?
A: Your files are completely safe. We protect our customers'
intellectual property rights throughout the process. All files of
customers will never be shared with any third party.

|
