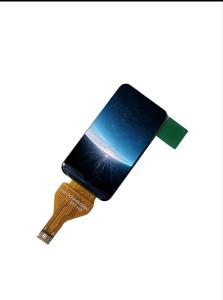

| Categories | IPS TFT LCD Display |
|---|---|
| Brand Name: | RGH |
| Model Number: | RT145QV009A |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen,China |
| MOQ: | 3PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T,Paypal |
| Supply Ability: | 3.5kk |
| Delivery Time: | 3-5weeks |
| Packaging Details: | Standard Exportation Package |
| Size: | 1.45 inch |
| Resolution: | 172*320 |
| LCD Type: | Transmissive TFT |
| Viewing Direction: | ALL O'clock |
| LCM Outline Dimension: | 19.75 (H)X36.86(V)X1.60(T) mm |
| Viewing area: | 18.39(H)X33.35(V) |
| Active area: | 17.39(H) X32.35(V) |
| Operating temperature: | -10℃~60℃ |
| Storage temperature: | -20℃~70℃ |
| Driving Ic: | ST7789P3 |
| Brightness: | 600CD/M2 |
| Interface: | SPI |
| Blacklight: | LED |
| Response time: | 30ms |
| Contrast Ratio: | 1500:1 |
| Weight: | TBD |
| NO. | Symbol | Level | Function |
| 1 | LCDA | LED,anode. | |
| 2 | GND | Ground | |
| 3 | RESET | Reset signal. | |
| 4 | RS | command selection pin in 4-line serial interface | |
| 5 | SDA | SPl interface input/output pin. | |
| 6 | SCL | This pin is used to be serial interface clock | |
| 7 | VCC | Power supply. | |
| 8 | CS | Chip selection pin |
 |  |
FAQ
1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and
3~5 weeks for mass production (basing on the quantity and product).
3. Do you support custom logo on the CTP?
A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.
4. How can I place a sample order?
A: Pls send us your inquiry, our sales will contact you soon.
5. What size LCD display can you provide?
A: 0.96 inch to 20 inch TFT LCD display we can provide.
7. What's your MOQ?
A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.
8. What shipping ways do you support?
A: We can consult with it.
|
