| Categories | Hydraulic Cylinder Seal Kit |
|---|---|
| Brand Name: | SUNCAR |
| Model Number: | 420-00453 42000453 Kit |
| CertifiC-A-Tion: | ISO9001 |
| Place of Origin: | CN |
| MOQ: | Accept trial order |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 550 sets per week. |
| Delivery Time: | 3-7 days after payment received(Public Holiday Excluded) |
| Packaging Details: | PP bag inside,carton box outside. |
| Material: | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Condition: | All new |
| Style: | Travel Control Valve Pedal Valve Kit |
| Applicability: | Doosan construction equipment;Excavator |
| Hardness: | 70 -95 shore A |
| Model: | SOLAR 75-V |
| Oem: | Available, Welcomed, yes, accept |
| AppliC-A-Ted in: | Excavator;Engine, Hydraulic, Fuel injection, Valves,Komatsu seal kit |
| Company Info. |
| GUANGZHOU SUNCAR SEALS CO.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
420-00453 42000453 Kit Fit Doosan Pedal Valve Assy SOLAR 75-V

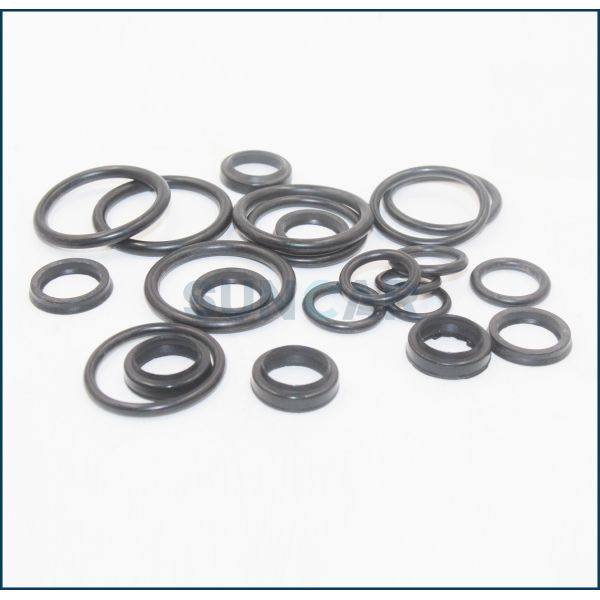

Description: Seal repair kit for travel control valve/Pedal valve.
| Product name | 420-00453 42000453 Kit |
| Brand | SUNCAR |
| Part name | Travel control valve seal kit; Pedal valve seal kit. |
| Color | As per standard color/customize color |
| Temperature | -35 ~ 220 ℉ c (depending on the material) |
| Section code | Cylinder |
| Hardness | 60-90 Shore A |
| Material | NBR (Nitrile Butadiene Rubber) |
| Material | FKM |
| Material | Nylon |
| Material | Steel |
| Material | Copper |
| Material | PTFE |
| Material | Polyurethane (PU) |
| Package | PP bag, carton, wooden box, or as required |
| Quality | Fabric |
| Features | High temperature resistance ; |
| Features | Good performance. |
| Features | High pressure resistance. |
| MOQ | Accept trail order |
| Type | Hydraulic seal kit. |
| Payment terms | T/T, Western Union, Paypal,Bank transfer. |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Shipping mode | By air, by sea, by express |
| Express | Post FedEx , UPS,DHL,TNT etc |
| Loading port | Huangpu port,China |
| Original place | Guangzhou city,Guangdong province,China |
| Forwarder | Your local forwarder or we find shipping ways for you |
| Quality | Stable quality,OEM standard,Genuine/Aftermarket |
Related Parts:
| K9002306 | 2440-6490BKT | 2440-9270KT |
| K9005434 | 2440-6516KT | 2440-9403BK |
| K9003934 | 2440-6518KT | 2440-9416AKT |
| K9003935 | 2440-9097K | 2440-9428K |
| K9001892 | 2440-9126K | 2440-9430K |
| 401107-00974 | 2440-9132KT | 2440-9438KT |
| K9002289 | 2440-9144KT | 2440-9441KT |
| K9002290 | 2440-9146KT | 401107-00019 |
| K9009768 | 2440-9147KT | 401107-00021 |
| K9002933 | 2440-9172KT | 401107-00022 |
| 440-00348KT | 2440-9173KT | 401107-00028 |
| 2440-9128K | 2440-9174KT | 401107-00031 |
| 2440-6228AKT | 2440-9180K | 401107-00147 |
| 2440-9125KT | 2440-9186AKT | 401107-00208 |
| 2440-9127K | 2440-9413AKT | 401107-00259A |
| 2440-9122KT | 2440-9204KT | 401107-00337A |

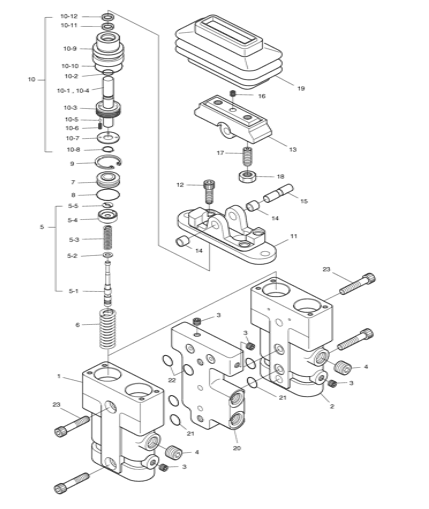

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| -. | 420-00453 | [1] | PEDAL VALVE ASSY |
| 1 | 423-00046 | [1] | BODY(1) |
| 10 | 1.521-00010 | [4] | PLUG KIT |
| 10-1. | 1.454-00001 | [1] | ROD;PUSH |
| 10-10. | S8010251 | [1] | O-RING |
| 10-11. | 180-00198 | [1] | SEAL;ROD |
| 10-12. | 180-00199 | [1] | SEAL;DUST |
| 10-2. | 180-00197 | [1] | SEAL |
| 10-3. | 1.409-00225 | [1] | PISTON |
| 10-4. | S5740480 | [1] | PIN;SPRING |
| 10-5. | S6250110 | [1] | BALL;STEEL |
| 10-6. | 129-00043 | [1] | SPRING |
| 10-7. | 159-00017 | [1] | PLATE |
| 10-8. | 115-00042 | [1] | RING;SNAP |
| 10-9. | 181-00319 | [1] | PLUG |
| 11 | 442-00001 | [2] | COVER |
| 12 | S2205261 | [4] | BOLT |
| 13 | 354-00002 | [2] | CAM |
| 14 | 2110-1184D7 | [4] | BUSH |
| 15 | 354-00003 | [2] | SHAFT;CAM |
| 16 | S3523606 | [2] | SCREW;SET |
| 17 | 120-00127 | [4] | SCREW;SET |
| 18 | S4014633 | [4] | . NUT |
| 19 | 160-00008 | [2] | BELLOW |
| 2 | 423-00047 | [1] | BODY(2) |
| 20 | 114-00225 | [1] | SPACER |
| 21 | S8000121 | [4] | O-RING |
| 22 | S8000101 | [2] | O-RING |
| 23 | S2212471 | [4] | BOLT;SOCKET |
| 3 | 2181-1116D1 | [4] | PLUG |
| 4 | 2181-1116D3 | [2] | PLUG;HEX. SOCKET |
| 5 | 1.424-00060 | [4] | SPOOL KIT |
| 5-1. | 424-00042 | [1] | SPOOL |
| 5-2. | 429-00005 | [1] | SEAT;SPRING |
| 5-3. | 1.129-00010 | [1] | SPRING |
| 5-4. | 429-00004 | [1] | SEAT;SPRING |
| 5-5. | 161-00080 | [1] | STOPPER |
| 6 | 129-00042 | [4] | SPRING |
| 7 | 429-00006 | [4] | GUIDE;ROD |
| 8 | S8000221 | [4] | O-RING |
| 9 | 1.229-00036 | [4] | RING;SNAP |
| 99 | 420-00453KT | [1] | SEAL KIT;PEDAL VALVE |
|
