1B6X1P Industrial Air Spring Replacement FS 76-7 DS CR Continental Air Lift Cushion

Categories Industrial Air Spring
Brand Name: GUOMAT
Model Number: 1B6X1P
Certification: ISO/TS16949, ISO9001
Place of Origin: Guangzhou China
MOQ: 5pcs
Price: USD99.9-129.9/PC
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Delivery Time: 3-7 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Material: Rubber+Aluminum
Structure: Single Convoluted
Quality: 100% Tested
Transport Package: Cartons
After-sales Service: 1 Year
Position: Industrial Machine
Contitech: FS 76-7 DS CR
Firestone: W01-R58-4078
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1B6X1P Industrial Air Spring Replacement FS 76-7 DS CR Continental Air Lift Cushion

1B6X1P Industrial Air Spring Replacement FS 76-7 DS CR Continental Air Lift Cushion

Product Details

Contitech Part Number FS76-7
Contitech Part Number FS 76-7
Contitech Part Number FS76-7 DI G1/2 CR
Contitech Part Number FS 76-7 DI G1/2 CR
Fire-stone Part Number W01-R58-4078
Fire-stone Part Number W01 R58 4078
Fire-stone Part Number W01R584078
Fire-stone Part Number WO1-R58-4078
Fire-stone Part Number WO1 R58 4078
Fire-stone Part Number WO1R584078
Dunlop Part Number 6X1
Dunlop Part Number SP2913
Dunlop Part Number SP 2913
Norgren Part Number PM/31061
Norgren Part Number PM 31061
Norgren Part Number PM31061
Parker Part Number 9109004A


6''X1 Air Spring Technical Parameters

Top Cover Plate: 152.5mm

Bottom Cover Plate: 175mm

Gas Hole: G1/2

Thread: M8

Distance Between Threads: 127mm

Max. Height: 110mm

Min.Height: 55mm


Vibration Isolation Applications - Dynamic Eigenvalues

Design height H: recommended 90 mm, minimum 75 mm

Pressure Pbar345678Volume
Force (Load) FKN3.14.25.36.47.58.70.9
Spring Stiffness CN/cm158520052455286033153745
Natural Frequency f0Hz3.53.43.43.33.33.3

Pneumatic Applications - Static Characteristic Values

Force F (kN)

Pressure Pbar345678Volume
Height H (mm)1002.33.14.04.95.86.81.0
903.14.25.36.47.58.70.9
803.85.16.47.89.110.50.7
704.56.07.69.110.712.30.6
605.37.18.810.612.414.20.4

Product Images

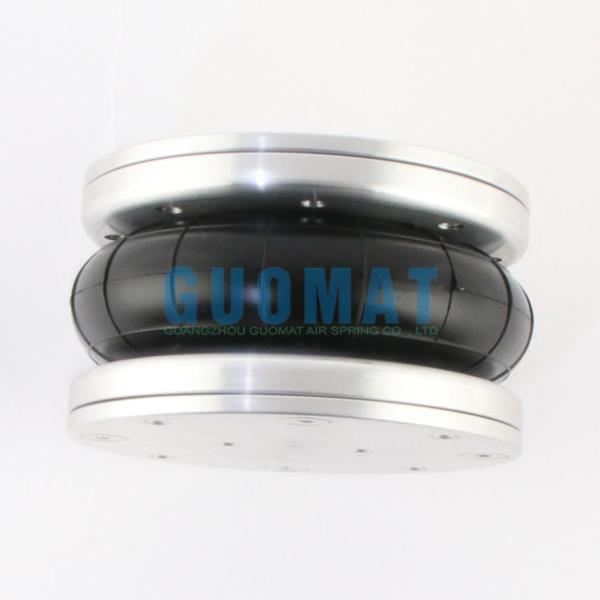

W01-R58-4078 Fire-Stone Air Lift Suspension Fs76-7 Contitech Air SpringW01-R58-4078 Fire-Stone Air Lift Suspension Fs76-7 Contitech Air Spring

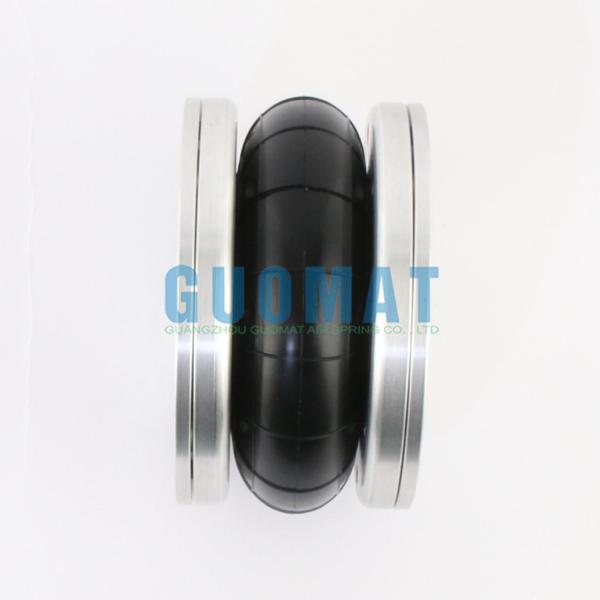

Quality 1B6X1P Industrial Air Spring Replacement FS 76-7 DS CR Continental Air Lift Cushion wholesale
