| Categories | Painting Robots |
|---|---|
| Brand Name: | Techfly |
| Model Number: | TR-90E |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 10000 sets per year |
| Delivery Time: | 4-6 weeks |
| Packaging Details: | Wooden box |
| Price: | RFQ |
| Color: | white |
| Electricity requirements: | 220V 16A air switch |
| Gas requirements: | Six quick release female connectors |
| Spray gun requirements: | 2 SATA5500 manual spray guns |
| Spray booth requirements: | length * width * height ≥ 6.9 * 3.9 * 2.7m |
| Adaptation scenarios: | car disassembly, whole vehicle |
| Company Info. |
| ANHUI TECHFLY ROBOTICS TECHNOLOGY CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

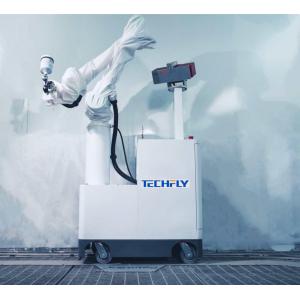

Painting Robot With Self Teaching For Metal Parts Auto Parts Furniture Motorcycle Parts Industries
Model TR-90E
Robot Highlights

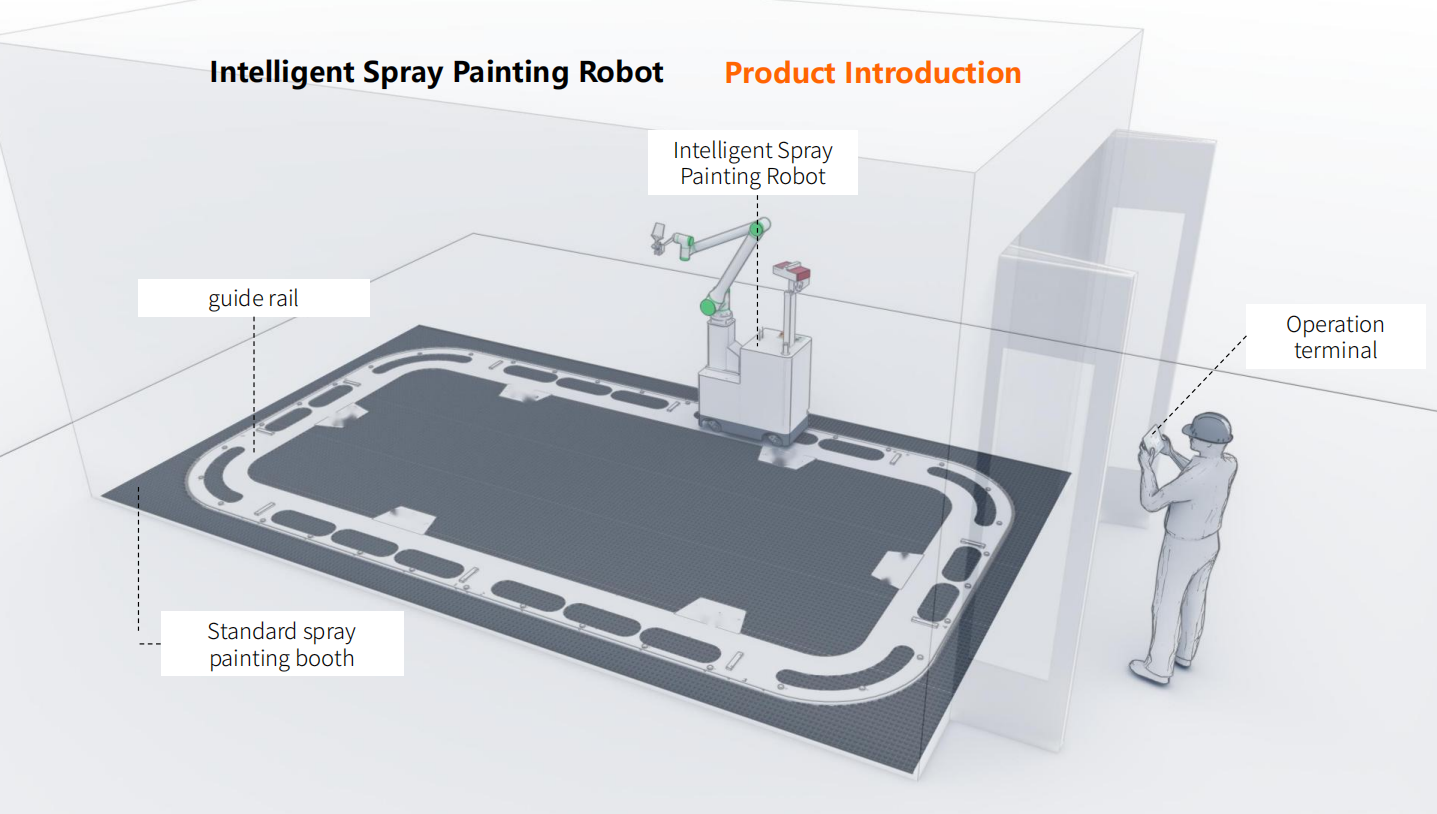

Painting Robot Product Introduction
| Components / Type | Whole vehicle operation | Painting Robot Instruction |
| Front engine hood | ● | 1.The operation range for painting the whole vehicle: · length≤5.1m; ·width≤2m; ·0.24m≤height≤1.8m(Do not spray the roof). ·When spraying the roof,the vehicle height must be≤ 1.6m. 2.For vehicles with a length less than 4.5m,the front and rear bumpers cannot be painted simultaneously. 3.When the painting parts include the front fender,front door and A-pillar,the rearview mirror needs to be removed during the operation. |
| Front bumper | ● | |
| Front fender | ● | |
| Front door | ● | |
| Rear door | ● | |
| Rear fender | ● | |
| Rear bumper | ● | |
| Roof | ● | |
| Skirt | ● | |
| A-pillar | ● | |
| C-pillar | ● |
| Components / Type | Dismantling parts operation | Painting Robot Instruction |
| Front engine hood | ● | The height range of the disassembly parts operation: 0.24m≤operation range≤2m. |
| Front bumper | ● | |
| Front fender | ● | |
| Front door | ● | |
| Rear door | ● | |
| Rear fender | ● | |
| Rear bumper | ● | |
| Roof | / | |
| Skirt | / | |
| A-pillar | / | |
| C-pillar | / |
| Number of batch (batch/shift) | Number of pieces (pieces/batch) | Monthly working days (days) | Total amount completed (pieces/month) |
| 6 | 4 | 22 | 528 |
Painting Robot Actual Operation Situation
The quantity of operations is directly proportional to the quantity
of business in the store and the processarrangement.The average
actual operation data is:100 Panels per month(equivalent to 25-50
vehicles).
Among the painted panels,car doors and fenders account for a
relatively large proportion.
Painting Robot Business Cases
It has been implemented and covered in more than 10 domestic and
overseas automotive 4S stores and sheet metal painting
centers.The served automotive brands include but are not limited to
BBA,Tesla,Honda,Toyota,Volkswagen,Li Auto,etc.
