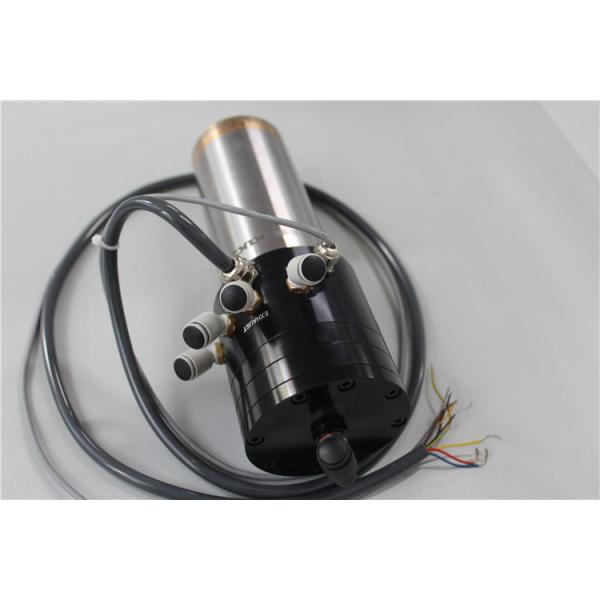

Compatible D1822 200,000RPM KL200L PCB Drilling Spindle
Quick Detail:
MODEL | REPLACE FOR | DESCRIPTION | Application | Machine reference |
KL200L | D1822 | SPEED RANGE: 20,000 - 200,000 rpm Ø6.35mm-0.05mm precision drilling | Static Run Out:<2µm Dynamic Run Out:<8µm Vibration:0.5 MM/S | KLINGINBERG PLURITEC HITACHI LENZ SCHMOLL ANDERSON …. |
PRODUCT DESCRIPTION
KL200L high frequency spindle replace for WW D1822 Full Range from
20,000 to 200,000 rpm, air bearing type in long life, spindle
weight 4.3kg with COLLET size Ø1/8” and body size Ø 61.9
Max power: 0.9KW
Air Pressure: 6.0 -6.5kgf/cm²
Coolant: Water oil
Fixed voltage: 215V
Fixed current: 4A
FREQUENCY (HZ): 334-3570
PTC Or NTC SENSOR For choose (Data pl. inquiry)
Competitive Advantage:
Low Static
Low Dynamic RUN OUT
Stable character and long life
Suitable for precision drilling
Air bearing type offer Greater Precision, High Speed , Increased
Tool Life, Improved Surface Finish, Long Bearing Life, Low Thermal
Growth, Lack of Maintenance, Large Load Capacity , Reduced
Vibration , Cleanliness.
APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: Ø6.35mm-0.05mm
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ
；ANDERSON;SCHMOLL ….
SPECIFICATION:
Coolant water temperature | 20+2 |
Static runout | <2µm |
Dynamic runout | <8µm |
Collet torque(N.cm) | >15.2( 1/8”) |
Vibration | 0.5MM/S |
Temperature sensor ohms KΩ | R=0.10±5% AT 25℃ |
Open air pressure | <5.0kg/cm² |
Close air pressure | >2.5 kg/cm² |
Coolant water flux | >0.8(L/min) |
Coolant oil flux | >1.5(L/min) |
Air consume flux at 20krpm | 58(L/min) |
Radial load | 6.0kgf |
Spindle outline drawing
