| Categories | Large Format Inkjet Plotter |
|---|---|
| Condition: | New |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction works , Other, Advertising Company, All Other Fileds Need Cut Cutting or Printing |
| Weight (KG): | 100 |
| Showroom Location: | Turkey, Viet Nam, Bangladesh, Cambodia |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product |
| Warranty of core components: | 1 Year |
| Core Components: | Motor, Mother Board and Drivers |
| Place of Origin: | Hubei, China |
| Brand Name: | KAEMI or GM |
| Warranty: | 1 Year, 1 Year Warranty for Full Machine |

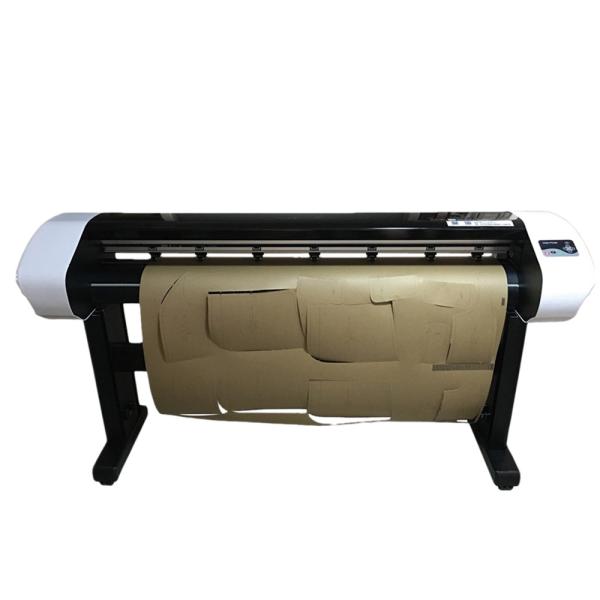

| Product Name: | 10-Year KAEMI L3 Fast Printing Cutting Plotter Inkjet Paper Plotter |
| Printing Materials: | White Paper,Kraft, etc |
| Cutting Size: | 1250mm to 2200mm |
| Paper Size: | 1280mm to 2300mm |
| Printing Tool: | Contious Big Capacity H801 Ink Catridge |
| Ink Cartridge Type: | Continuous Ink Catridge, No Need Replacement, Can Refill the Ink |
| Printing Resolution: | 150-600DPI, Optional and Settable on Menu |
| Power Supply Voltage: | 220V/50Hz |
| CAD File Format: | HP-GL, PLT, DXF, etc |
| Model: | GM-L3 |
| Price: | $1,559.00/sets 1-4 sets |
| MOQ: | 1set |
| Company Info. |
| Wuhan Gemei Joint Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

 Main Features:
Main Features:
Exclusive Software Algorithm,Machines Print more Precisely,Lines
are Clearer Without Gratings and Horse Disks,Greatly Lower Fault
Rate
Independent Output Management Software,Guarantee The better Connect
of Machine and Computer
Hidden Heads of Ink and Knife
If The Machine Stops Abnormally,The Position Will be Recorded
Automatically
Online Automatic Printing in The Queue
| Technical Parameters | ||||
| Product Model: | GM125L3 | GM170L3 | GM190L3 | GM220L3 |
| Maximum Printing Width | 125cm | 170cm | 190cm | 220cm |
| Ink Type: | 2 spray/4 spray HP universal ink cartridge HP45/6145A | |||
| Printing Density: | 300-600D (optional ink-saving mode) | |||
| Printing Capacity: | 200-230 square meters/hour (four-jet) | |||
| Line Quality: | Precise,smooth,seamless | |||
| Software Fompatibility: | HPGL(special format can be customized) | |||
| Paper Feeding: | Precise paper feeding technology,invisible digital coding induction system | |||
| Paper Loading: | Front paper receiving and placing system | |||
| Paper Receiving Mode: | Automatic collecting or no-collecting printing to fast print a large number of patterns and save paper loading time | |||
| Host Structure: | American all-metal high-rigidity wear-resisting structure to ensure the life of the machine is 5 times higher than similar production | |||
| Intelligent Ink Car: | Automatic origin record,servo control,ink consumption monitoring, no seams, clear lines | |||
| Paper Requires: | General paper(30g-250g) | |||
| Input Voltage: | AC220/110V 60HZ power is not less than 400W | |||
| Communication Port: | USB/interface shared printing | |||
| Command Format: | HP-GL | |||











Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter.
"The competition of enterprises is the competition of talents."
GEMEI firmly grasps the trend that the world manufacturing
industry is transferring to the middle part of the world, and has
established a research and development team composed of doctors and
senior engineers and other high-quality talents,and insists that
"innovation" is the eternal power of the development of GEMEI.

 1. Q: Are you a manufacturer?
1. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template
cutter/inkjet cutter/pen writing cutter/cnc digital fabric
cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export
standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can
customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support
by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7
days

|   |
