| Categories | Fiber Optic Rotary Joint |
|---|---|
| Brand Name: | JINPAT |
| Model Number: | LPFO-37A |
| Certification: | ISO/CE/RoHS/UL |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | Negotiable |
| Payment Terms: | T/T,C/C,Paypal |
| Supply Ability: | 500 pieces / week |
| Delivery Time: | 2 weeks ARO |
| Packaging Details: | Standard/On Request |
| Number of Circuits: | 19-32 |
| Fiber types: | SM/MM |
| Return Loss: | SM:≥40dB MM:≥25dB |
| Wavelength range: | SM:1310/1550nm MM:850/1300nm |
| Connector types: | Fc/SC/ST/LC(PC or APC) |
| Weight approx: | 4500g (No tail cable andconnection included) |
| IP rating: | IP54(Up to IP67) |
| Insertion loss ripple: | ≤2dB |
| Max Optical power: | 23dB |
| Working temperature: | -20~+65°C(Industrial grade) -45~+75°C(Military grade) |
| Company Info. |
| JINPAT Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

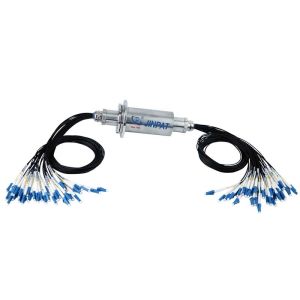

The LPFO-37A optical fiber slip ring is a specialized piece of
equipment known for its outstanding performance. It is designed for
various demanding applications, such as cable reels, where it
ensures the stable transmission of both power and signals, thus
boosting efficiency and reliability.
In the field of ship light winches, the LPFO-37A’s superior
capabilities make the winches operate more smoothly, even in
complex maritime environments, thereby facilitating the seamless
progress of ship operations.
For marine cranes and platform cranes, the LPFO-37A is well-suited
to endure harsh marine conditions, ensuring precise operation and
safe handling of the crane equipment.
Across all types of marine equipment, this fiber optic slip ring
significantly reduces signal interference and enhances the overall
performance of the equipment, thanks to its exceptional features.
The LPFO-37A fiber optic slip ring is an essential component in
many critical systems, providing robust support for efficient
operations across various industries.

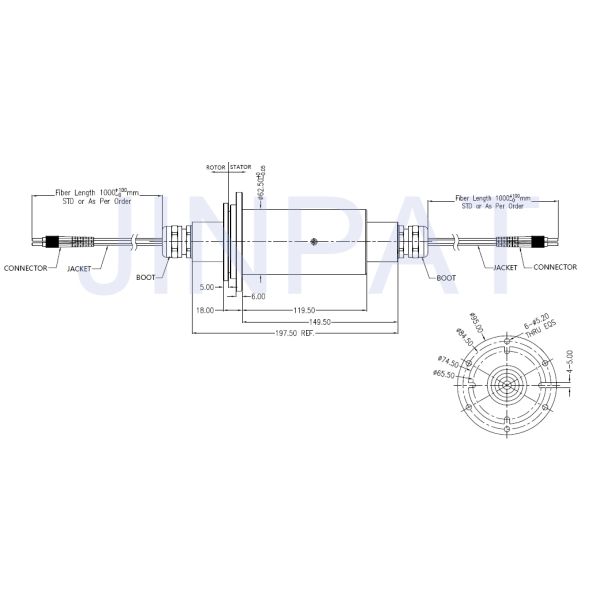

Outline Drawing
| Specifications | |||
| Fiber types | SM/MM | Maximum speed | 300rpm |
| Channel number | 19-32 | Package style | Pigtails on both ends |
| wavelength range | SM:1310/1550nm MM:850/1300nm | Weight,approx | 4500g (No tail cable and connection in cluded) |
| Insertion loss | ≤5dB | Jacket types | 2.0mm armor |
| Insertion loss ripple | ≤2dB | Connector types | Fc/SC/ST/LC(PC or APC) |
| Return loss | SM:≥40dB MM:≥25dB | Estimated life cycle | ＞50 million revolutions |
| Crosstalk | ≥50dB | vibration | MIL-STD-167-1A |
| Max Optical power | 23dB | Mechanical shock | MIL-STD-167-810G |
| Working temperature | -20~+65°C(Industrial grade) -45~+75°C(Military grade) | IP rating | IP54(Up to IP67) |
| Storage temperature | -55~+85°C | ||
|
