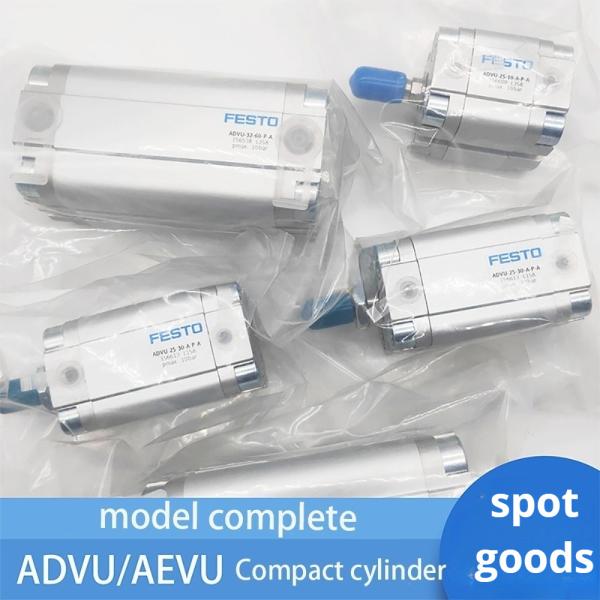

ADVU-125 Lightweight Aluminium Alloy Piston Pneumatic Cylinder

The FESTO cylinder ADVU series is a versatile piece of equipment with several main attributes worth highlighting.

One of the standout features of the ADVU series cylinder is its modular design, which allows for easy installation and a compact structure. To detect the position of the cylinder stroke, a magnetic ring is included with the piston, while a magnetic switch on the cylinder barrel controls the reciprocating motion without the need for extra valves or switches.

The ADVU series cylinders boast several impressive performance parameters:

• Stroke: The ADVU series offers a variety of stroke options varying from 40 mm to 100 mm. For example, ADVU-100-80-P-A model has 80 mm stroke length.
• Piston diameter: Available in ranges from 32 mm to 100 mm, the ADVU series has a piston diameter of 32 mm for ADVU-32-40-A-P-A, and 100 mm for ADVU-100-80-P-A.
• Working pressure: With a working pressure range of 0.6 to 10 bar, ADVU-100-80-P-A model operates at 0.6 to 10 bar.
• Buffer Device: Elastic buffer rings or plates are equipped at both ends of the cylinder to reduce impact and absorb residual energy.

The highly compact ADVU cylinder series has wide application scenarios in various fields, including automation control, robotics, semiconductor manufacturing, printing, and more. The cylinder's ease of installation, compact structure, and high-performance capabilities make it a popular choice for various industries.

Additional technical parameters of FESTO cylinder ADVU series include:

• Theoretical force value: For instance, ADVU-63-30-A-P-A produces a theoretical force value of 1870 N when operating at 6 bar.
• Buffer device: Elastic buffer rings or pads at both ends of the cylinder help to reduce impact and vibration.

The FESTO cylinder ADVU series comes with complete installation accessories and several applicable installation forms, making installation easy. Maintenance is also relatively simple, requiring only periodic checks on the status of the seals and buffer devices.

Overall, the FESTO cylinder ADVU series stands out in the automation and industrial control fields due to its flexibility, compact design, excellent performance, and broad range of application scenarios.
