| Categories | Non Destructive Testing Equipment |
|---|---|
| Brand Name: | HUATEC |
| Model Number: | SRT-5000 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 SET |
| Price: | US$575.00 - 650.00/set |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 10 Sets/Month |
| Delivery Time: | 3-5 working days after receipt of your payment |
| Packaging Details: | Outer carton packaging |
| Measurement Parameters(µm): | Ra Rz Rq Rt |
| Stroke Length（mm）: | 6 |
| Sampling Length（mm）: | 0.25 ，0.80 ，2.50 |
| Measurement Range（µm ）: | Ra：0.05 ~ 10.0 ;Rz：0.1 ~ 50 |
| Error of Indication: | ±15% |
| Varation of Indication: | ＜12% |
| Sensor guide head pressure: | ≤ 0.5N |
| Company Info. |
| HUATEC GROUP CORPORATION |
| Verified Supplier |
| View Contact Details |
| Product List |

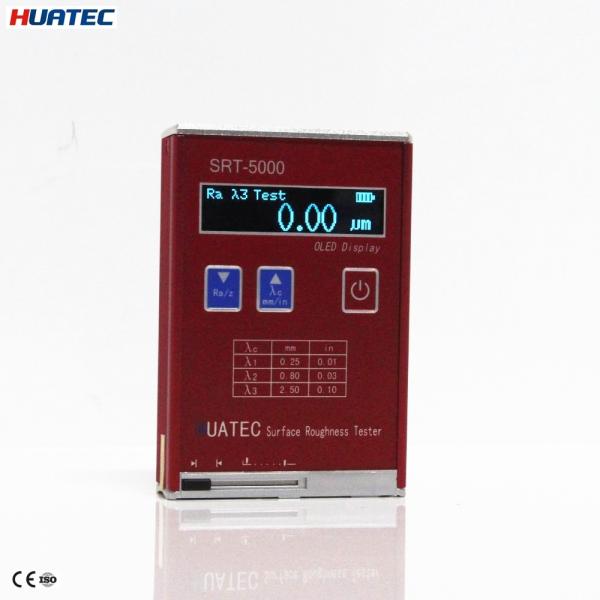

SRT-5000 OLED display Real-time monitoring Ra/Rz/Rq/Rt Surface Roughness Tester
Features:
Appearance using pull aluminum mould design, durable,
anti-electromagnetism interference ability significant, accord with
current design new trend.
By using high-speed DSP processors for the data processing and
calculation, measuring and calculation speed is greatly improved.
Liquid crystal adopts popular OLED display, high brightness, no
perspective, wide temperature.It is suitable for various
applications.
Using lithium ion rechargeable batteries, it can work long hours
with no memory effect.It also can work with charging .Charging time
is short, while the battery life is long.
Use the common USB interface to charge and communication .Use
special charger or the computer USB port of chargeIt’s convenient
and quick.
Dot matrix LCD display, interface message is rich.
Real-time monitoring of lithium battery power and display, electric
charge and timely remind users.
Automatic shutdown function, low power consumption and hardware
design make instrument working hours exceeds. It is suitable for
all kinds of field use.
The sensors head has the protect door, which protect the head of
the sensors effectively. Guarantee the accuracy of measurement.
SPECIFICATIONS:
| Measurement Parameters(µm) | Ra Rz Rq Rt |
| Stroke Length(mm) | 6 |
| Sampling Length(mm) | 0.25 , 0.80 , 2.50 |
| Evaluation Length(mm) | 1.25 , 4.0 , |
| Measurement Range(µm ) | Ra: 0.05 ~ 10.0 Rz: 0.1 ~ 50 |
| Error of Indication | ±15% |
| Varation of Indication | ＜12% |
| Tip arc radius | 10 µm±1 µm Angle:90 |
| Touch needle static force measurement | ≤ 0.016N |
Force measurement rate | ≤ 800N/m |
| Sensor guide head pressure | ≤ 0.5N |
| Battery | 3.7V Lithium Ion battery |
| Contour Dimension | 106 mm×70 mm×24 mm |
| Weight | 200g |
Temperature | -20℃～40℃ |
| Relative Humidity | < 90% Surrounding no vibration and no corrosive medium. |
Standard Accessories:
Main unit…………… . ..1pc.
Carrying case………… 1 pc.
Operation manual…….1 pc.
Standard sample plate…1 pc
Product certificate …. 1 pc
|
