| Categories | Concrete Shotcrete Machine |
|---|---|
| Brand Name: | KEMING |
| Model Number: | KPZ |
| Certification: | CE,MA |
| Place of Origin: | CHINA |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Per Month |
| Delivery Time: | 10~20 Work Day |
| Packaging Details: | Export Wooden Case |
| Max Aggregate Size: | 20 mm |
| Color: | customized |
| Max Spraying Width: | 11m |
| Concrete Slump: | 12~20 |
| Conveying Pipe Diameter: | 125~90mm Variable Diameter |
| Borehole Diameter: | 50-130mm |
| Structure: | Rotor Type |
| Max. Conveying Height: | 100m |
| Max Aggregate: | 15mm |
| Application: | Spraying Concrete |
| Company Info. |
| Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

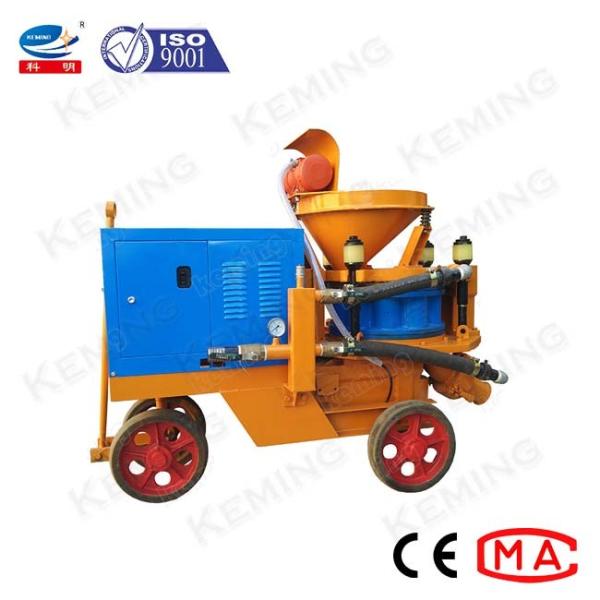

1. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).
2. KPZ-9 Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box etc.
3. KPZ-9 Dry Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.
1. KPZ series shotcrete machine can be used to spray dry and half wet concrete.
2. Advanced technology, rational structure, stable performance and long service life with CE and MA certification.
3. KPZ series shotcrete machine is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.
| Model | KPZ500 | KPZ-2 | KPZ-3 | KPZ-4 | KPZ-5/PC5I | KPZ-7 | KPZ-9 | |
| Output | m3/h | 0.5 | 2 | 3 | 4 | 5 | 6 | 8 |
| Max.conveying dist. | m | 100 | 200 | 200 | 230 | 200 m | 150 | 100 |
| Max.aggregate size | mm | 12 | 15 | 15 | 18 | 20 | 20 | 20 |
| Hose inner diameter | mm | Φ32 | Φ38 | Φ38/51 | Φ38/51 | φ51 | Φ57 | Φ57 /64 |
| Air consumption | m3/min | 5-6 | 7-8 | 8-10 | 10-12 | 10-12 | 12-15 | 12-15 |
| Motor power | KW | 2.2/3 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |

|
