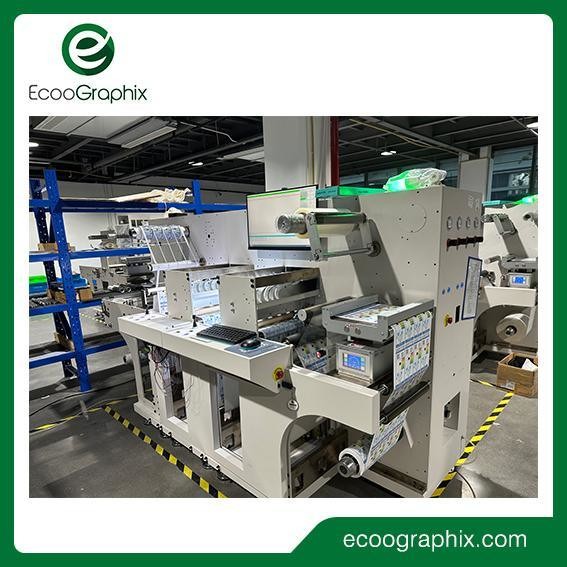

ECOO VD3350 Max 100m Per Minute Digital Label Self Adhesive Sticker Slitter

Max. 450mm Digital Label Self-adhesive Sticker Slitter

Technical Data

Model
ECOO-VD3350

Max. media roller
Diameter 450mm

Cutting media width
40-350mm

Max. label width
330mm

Min. label length
10mm

Max. label length
600mm

Cutting speed
Max. 9m per minute(Depend on label shape and size)

Cutting blades
(Standard) 4 pcs

Slitting blades
(Standard 4 pcs)Max. 15pcs

Cutting tracking
CCD camera

Die-cutting technology
With tungsten steel rotary blades

Cutting precision
0.1mm(Duplicate)

Slitting speed
Max. 100m per minute

Slitting width
10-330mm

Slitting precision
0.1mm

Machine size(W*D*H)
2100*1195*1575CM

Machine weight
1200kg

Power
110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS

Warranty
1 year(Besides high consumable parts)

Options
Cutting head/ Slitting unit/ Film back liner removal/ Sheet paper cutter

​

​

Digital Label Die Cutting Machine
Model	ECOO-VD3350
Max. media roller	Diameter 450mm
Cutting media width	40-350mm
Max. label width	330mm
Min. label length	10mm
Max. label length	600mm
Cutting speed	Max. 9m per minute(Depend on label shape and size)
Cutting blades	(Standard)4 pcs
Slitting blades	(Standard 4 pcs)Max. 15pcs
Cutting tracking	CCD camera
Die-cutting technology	With tungsten steel rotary blades
Cutting precision	0.1mm(Duplicate)
Slitting speed	Max. 100m per minute
Slitting width	10-330mm
Slitting precision	0.1mm
Machine size(W*D*H)	2100*1195*1575CM
Machine weight	1200kg
Power	110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS
Warranty	1 year(Besides high consumable parts)
Options	Cutting head/ Slitting unit/ Film back liner removal/ Sheet paper cutter

Instruction

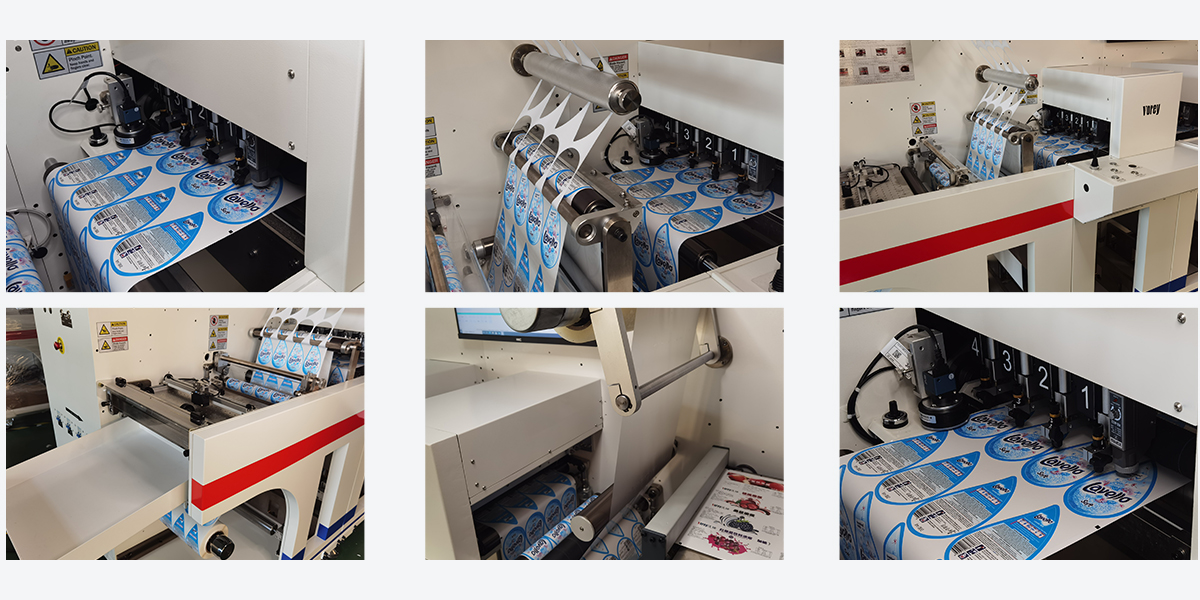

The VD3350 high-speed digital label machine, which contains greater A shrewd elements, adopts a unit format and can deploy up to 3 working units. Unique wise digital die-cutting software program that mechanically acknowledges and extracts slicing files, and robotically adjusts device spacing. Use a 4 blade*3 unit to work on distinct labels simultaneously. With the modern smart software, automatic die-cutting runs thru the complete workflow, making gear operation less difficult than ever, extensively enhancing work effectivity whilst lowering guide intervention.​

Certifications

FAQ

Q: What are your main products ?

A: We EcooGraphix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

Q: Where is your factory ?

A: Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

Q: What is your warranty ?

Normally 1 year(Besides high consumable parts).

Q: What is the Lead Time ?

A: Usually 30 days, and we will try our best to meet your demands.

Q: Can you also supply the software ?

A: Yes, we offer copyrighted software.

Q: What about the installation and after-sales technician support ?
