Jetson Orin Nx 16g Rugged Embedded Computer For V2x Uav Module Vehicles

Categories	Rugged Embedded Computer
Brand Name:	PLink-AI
Model Number:	7F5
Place of Origin:	China
MOQ:	1PCS
Price:	To be discussed
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	To be discussed
Delivery Time:	15-30 work days
NAME:	Industrial Embedded IPC Jetson Orin NX 16G for V2X UAV Module Vehicles Rugged Embedded Computer
Keyword:	Industrial Embedded IPC Jetson Orin NX 16G for V2X UAV Module Vehicles Rugged Embedded Computer
Module:	Jetson Orin NX 16G
Warranty:	3 years
AI Perf:	Up to 100 (Sparse) INT8 TOPs and 50 (Dense) INT8 TOPs
Memory:	16GB 128-bit LPDDR5
Storage:	Supports External Storage (NVMe) via x1 PCIe
Imaging:	Eight lanes MIPI CSI-2 \| D-PHY 2.1 (20 Gbps)
Video Decode:	18x 1080p30 (H.265)

Contact Now

Add to Cart

Company Info.

Beijing Plink AI Technology Co., Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Jetson Orin Nx 16g Rugged Embedded Computer For V2x Uav Module Vehicles

Industrial Embedded IPC Jetson Orin NX 16G for V2X UAV Module Vehicles Rugged Embedded Computer

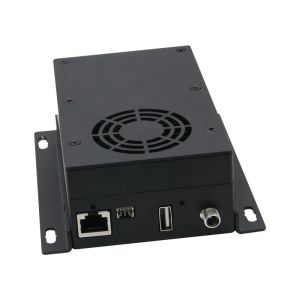

Rugged Embedded Computer Jetson Orin NX 16G

This is an embedded IPC for Jetson Orin NX module and up to 100 (Sparse) INT8 TOPs and 50 (Dense) INT8 TOPs. It is small and full of functions, which is ideal for portable embedded IPC . It is mainly used for V2X, V2X means vehicle to everything, By integrating global positioning system (GPS) navigation technology, vehicle-to-vehicle communication technology, wireless communication and remote sensing technology, the Internet of vehicles has laid a new direction for the development of automobile technology, and realized the compatibility of manual driving and automatic driving. Meanwhile, it can also be used in multiple application scenarios, providing convenient AI services for developers in the edge computing industry

NVIDIA Jetson Orin NX 16GB Technical Specification

AI Performance	Up to 100 (Sparse) INT8 TOPs and 50 (Dense) INT8 TOPs
Ampere GPU	1024 NVIDIA® CUDA® cores \| 32 Tensor cores \| End-to-end lossless compression \| Tile Caching \| OpenGL® 4.6 \| OpenGL ES 3.2 \| Vulkan™ 1.1 ◊ \| CUDA 10
Deep Learning Accelerator	2x NVDLA
Maximum Operating Frequency	614 MHz \| 20 TOPS each (Sparse INT8)
ARM Cortex-A78AE CPU	Eight-core (ONX 16GB) or six-core (ONX 8GB) Cortex A78AE ARMv8.2 (64-bit) heterogeneous multi-processing (HMP) CPU architecture \| 2x clusters (4x 256KB L2 +2MB L3) + 4MB LLC \| L3 Cache: 4 MB (shared across all clusters)
Audio	Dedicated programmable audio processor \| ARM Cortex A9 with NEON \| PDM in/out \| Industry-standard High-Definition Audio (HDA) controller provides a multi-channel audio path to the HDMI® interface
Memory	16 GB 128-bit LPDDR5 DRAM
Networking	10/100/1000 BASE-T Ethernet \| Media Access Controller (MAC)
Imaging	Eight lanes MIPI CSI-2 \| D-PHY 2.1 (20 Gbps)
Display Controller	1x shared HDMI 2.1, eDP 1.4, VESA DisplayPort 1.4a HBR3
Maximum Resolution (eDP/DP/HDMI)	up to 3840x2160 at 60 Hz (up to 36 bpp) \| up to four displays can be supported over DP interface with MST and compatible serializer
Storage	Supports External Storage (NVMe) via x1 PCIe
