| Categories | D Sub Connector |
|---|---|
| Brand Name: | WCON |
| Model Number: | 6201-B15FU15FUS001 |
| Certification: | UL/CUL/SGS/ROHS |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 800000Kpcs |
| Delivery Time: | 15-25 Working Days |
| Packaging Details: | PE Bag |
| Gender: | Female |
| port: | Hong Kong |
| Product category: | Class IO connector |
| Material: | PBT |
| origin: | China |

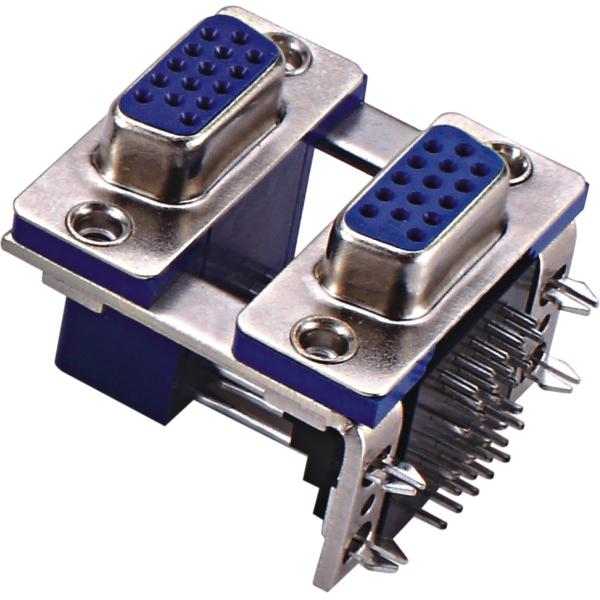

Double layer IO interface, upper layer mother, lower layer mother, D-SUB connector
| Currenr Rating | 5.0AMP |
| Contact Resistance | 25mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 5000mΩ Min |
| Operation Temperature | ﹣55℃ to +105℃ |
| Contact Material | Brass |
| Contact Plating | Au Or Sn over Ni |
| Insulator Material | PBT+30%GF UL94V-0 |
| Shell Material | Spcc Plating Ni Plated |
| Rivet Harpoon | Brass Sn over Ni |
| Screw | Brass,Plating Ni Plated |
Product Name: D-SUB connector
1. features: the use of a wide range of environmental protection fireproof antioxidant electrical conductivity and long service life force is strong.
2. material: PBT (green, black, white) plus fiber 30% UL94V-0 contact body material: brass (C3604)
3. scope of application: used for connecting a computer, communication, medical equipment, wire and cable, aviation, digital, machinery and equipment, game consoles and other integrated circuit package pins and printed circuit board.
|
