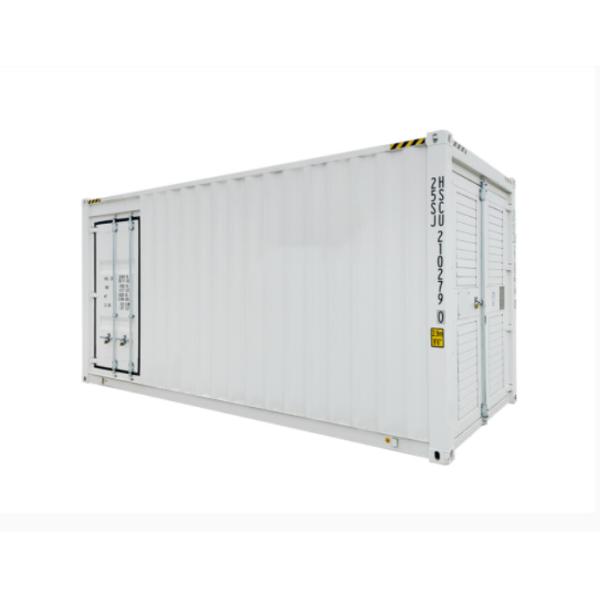

Bitmain Antspace HK3 1030kw Dwt-T / Dwt-C for S19 PRO+ Hyd 198t J0-10 Container HK 3

Product Overview
Version	ANTSPACE HK3
Dimensions (LWH) (mm)	605824382896
Miner Capacity	210 units -S19 Hyd. Series miner
Container Certification	China Classification Society Certification
Safety Certification	North America/Standards:NFPA 79:2021,UL 508A:2018 R8.21, CSA C22.2 No. 14-18,ANSI/ISO 12100:2012 EU/Standards:EN ISO 12100,EN 60204-1
Operating Power(kW)	1047~1050
PUE(Power Usage Effectiveness)	1.022(Excluding cooling tower)/1.036(Including cooling tower)
Input Voltage and Frequency	415V±5% 60Hz(North America) 400V±5% 50Hz(EU,Middle East)

Detailed Characteristics
Shipping Weight(T)	8
Operating Weight (T)	12
Main Switch of Power Distribution Cabinets(A)	1200(North America) 1250(EU,Middle East)
Rated Current(A)	952
Standard Power(kW)	1049
Maximum Power(kW)	1050
Rated Current per Miner(A)	10
Inlet Cable	The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase: L1 single core cable 600kcMil(300mm²)x4 L2 single core cable 600kcMil(300mm²)x4 L3 single core cable 600kcMil(300mm²)x4 N Single-core cable 600kcMil(300mm²)x4 PE single-core cable 500kcMil(240mm²)x2
Connection Interface(Cooling Tower)	DN125(GB/T 9119-2010 PN16 DN125)
Connection Interface(Plate Heat Exchage Interface)	DN100(GB/T 9119-2010 PN16 DN100)
Flow Rate(m³/h)	＞85
Quantity of ANTSPACE powered by one 2500kVA Transformer	2

One of the following two Dry-Wet Towers can be chosen based on the personalized demand.

Product Overview
Type	Dry-Wet Tower Traditional Type (DWT-T)	Dry-Wet Tower Container Type (DWT-C)
Dimensions(LWH)(mm)	580022404200	605824382896
Heat Dissipation Capacity(kW)	1000	1000
Outlet Temperature @ 28℃ Wet Bulb Temperature	35℃	35℃
Container Certification	None	China Classification Society Certification
Safety Certification	North America/Standards: NFPA 79:2021, UL 508A:2018 R8.21, CSA C22.2 No. 14-18, ANSI/ISO 12100:2012 EU Standards: EN ISO 12100, EN 60204-1	North America/Standards: NFPA 79:2021, UL 508A:2018 R8.21, CSA C22.2 No. 14-18, ANSI/ISO 12100:2012 EU Standards: EN ISO 12100, EN 60204-1
Operating Power(kW)	14~28	14~28
Motor Rated Voltage and Frequency	415V±5% 60Hz(North America) 400V±5% 50Hz(EU,Middle East)	415V±5% 60Hz(North America) 400V±5% 50Hz(EU,Middle East)

Detailed Characteristics
Shipping Weight(T)	5	6
Operating Weight(T)	9	10
Connection Interface(Container)	DN125(GB/T 9119-2010 PN16 DN125)	DN125(GB/T 9119-2010 PN16 DN125)
Water Resupply Pipe Interface	DN40(Internal thread)	DN40(Internal thread)
Drain Pipe Interface	DN65(Internal thread)	DN65(Internal thread)
Noise Level @25℃, 16m	70dBA	70dBA
Water Consumption(m³/h)	1~1.5	1~1.5

| Environmental Requirementss

Environmental Requirements
1	Cooling tower is required to be placed on flat ground, horizontal degree (±1 degree).
2	The ground surfaced is required to be hardened and stable, able to withstand at least 14-ton load.
3	A 10-ton crane is needed for unloading ANTSPACE and cooling tower.
4	Add-on items such as stairs, transformers, cables, bridge racks and cable distribution boxes are not included in the delivery of ANTSPACE. BITMAIN team can provide design suggestions if needed.
5	Client needs to confirm the opening directon of container and it needs to face air-intake. Door on left is current design by defult.
6	Keep at least 2 meters of air in-take space around the cooling tower.
7	Altitude: ≤3000m. If the altitude is higher than 1000-meter, transformer and switch should be derated, the total power of ANTSPACE must be decreased by 1% for each elevation increment of 100 meters.
8	Operating temperature: -25°C to 40°C. Operating humidity: 10%RH to 90%RH. When the initial coolant temperature is below 20 °C, the internal circulation should be turned on to heat up the coolant to above 20 °C before starting the mining machine.
9	When the ambient temperature is below 5 ℃, the cooling tower can be switched to cold-dry mode.
10	Choose pure water or suitable antifreeze as coolant based on local climate conditions.
11	The suitable ambient temperature for ANTSPACE does not represent the suitable ambient temperature for mining machine.
