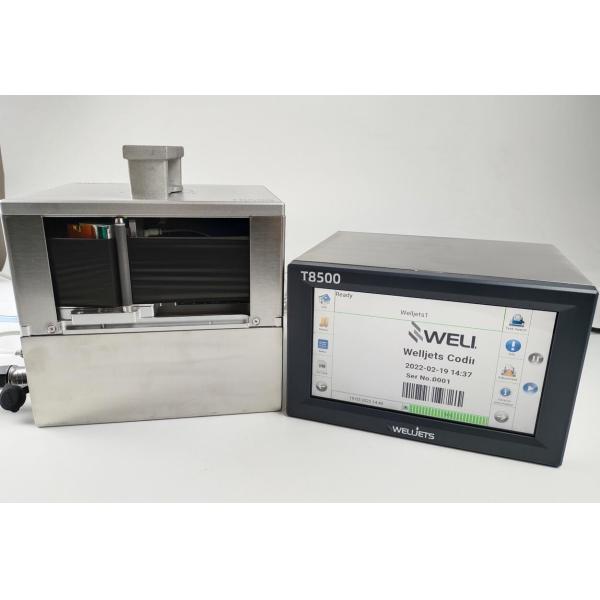

Air Driven Thermal Transfer Overprinter TTO Industrial HP Batch Coding Machine

Welljets High Performance Thermal Transfer Overprinter TTO Printer Industrial Coding Machine

Delve into the realm of high-definition printing with our state-of-the-art Thermal Transfer Overprinter (TTO). Specifically crafted to project crystal-clear, high-resolution images on flexible packaging film and labels, this machine stands as a testament to precision and quality. One of the standout features of our TTO is its efficiency. While ensuring premium prints, it significantly reduces downtime, and costs tied to ribbon replenishment and production changeovers. Every aspect, from long ribbon lengths and swift print speeds to advanced error prevention features, has been meticulously engineered for optimal performance.

Furthermore, our Thermal Transfer Overprinter boasts adaptability as one of its core strengths. Equipped to operate in both intermittent and continuous modes, it caters to diverse printing requirements with ease. The available print heads, ranging from 32mm 300dpi to 53mm 300dpi, allow for fine-tuned detailing and broad coverage alike. With its blend of versatility, precision, and speed, our TTO promises not just to meet, but exceed your printing expectations, setting a new benchmark in the industry.

Features:

Cost-Effectve:
Combined with intermittent and continuous, can meet both models of printing300DPI, high quality prints. Largely reduced the print cost, will popularize the use of TTO in the world.

High Performance
Support all kind of printing fonts, date formats, variable numbers, serial no, bar codes, 2-dimensional code image and table. Support various reversal and mirror prints.

Print Parameters:

Print heads:

-T8300 Series: 32mm, 300dpi

Print speed:

-Continuous: 40 to 600mm/s

-Intermittent: up to 300ppm

Print area:

-Continuous: 32*75mm

-Intermittent:32*150mm

Print Features:

-7-inch touch screen

-32-bit RSIC processor

-Ribbon cassette for fast ribbon changing

-Ribbon tension detection

-Automatic print head setup

-Battery life >= 3 years

-Maximum ribbon length: 1100m

-Ribbon width: 20mm to 55mm

-Print gap <=0.5mm

-Font: full TrueType font support

-Flexible date/time formats; Flexible shift code formats

-Barcode: EAN8, EAN13, Code39, Code128, UPC-A, QR-code, DM code, etc.

-Ribbon saving: Radial, Interlaced, Multi-signal, Ribbon-reverse mode, etc.

Other Features:

-Print head dead dots detection

-Print head over temp detection

-Air consumption: 4ml/print at 2.5bar

-Port: USB, RS232, Ethernet

-Input & Output: editable

-Multi language support

-Power: AC90V-264V, 47-63Hz, 150VA

-Humidity: 10% to 90%, non-condensing

-Software: FormatDesign

-Dimension & Weight:

Print unit: 190*220*236mm, 8KGs

Controller: 170*263*190mm, 5KGs

-Communications protocols for PCs, PLC and packaging machines, etc.

-Print head life: 60 to 80KMs.
