| Categories | TFT LCD Panel |
|---|---|

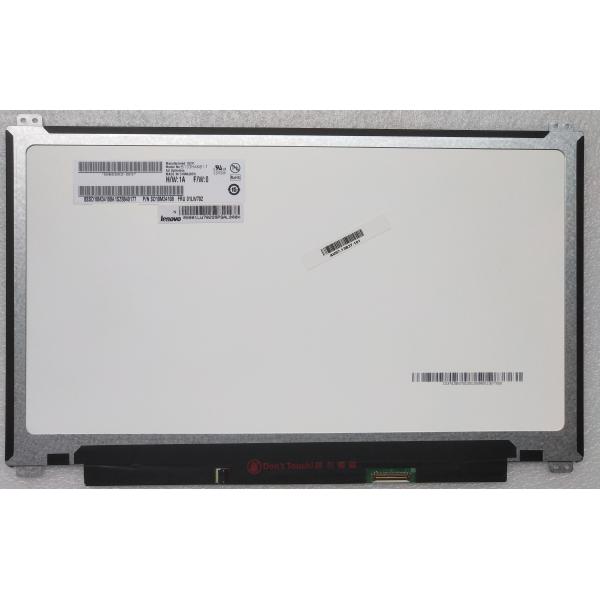

| Brand Name: | AUO |
| Model Number: | B133HAK01.1 |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1PCS |
| Payment Terms: | TT/PAYPAL/ESCROW/WESTERN UNION |
| Delivery Time: | 1-2DAYS |
| Packaging Details: | STANDARD PACKING |
| Brand: | AUO |
| Diagonal Size: | 13.3" |
| Resolution: | 1920(RGB)×1080, FHD 166PPI |
| Luminance: | 250 cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| B133HAK01.1 | a-Si TFT-LCD , LCM | AUO112D | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 250 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 27 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AHVA, Normally Black, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 46% | 64% | 48% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 48% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.60 (Max.)(5/13 points) | ||
| Panel Size : | 13.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.15285×0.15285 [166PPI] | 0.05095×0.15285 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 293.472(H) × 165.078(V) | - | 306.3(H) × 195.29(V) | 3.0/3.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Slim (PCBA Flat, T≤3.2mm) | |
| Touch Screen : | Controller & Signal type | Touch Points | Supported OS System | TP Technology |
| With controller, I²C | 10 points | Windows 10 | On-Cell Touch | |
| Mounting : | Face mounting holes (8 pcs) on up, down slugs | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 260g (Max.) | - | Antiglare | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 6.0/12.0/21.0V (Min./Typ./Max.) | - | 3.2W (Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 267mA (Max.) | 0.8W (Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (2 Lanes), eDP1.2 | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20455-040E-76B | 0.5 mm | 40 pins | 1 pcs | ||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.472(W)×165.078(H) mm, outline size of 306.3(W)×195.29(H)×3.2(D) mm, with surface treament of Antiglare, net weight of 260g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AHVA, Normally Black, Transmissive LCM product, B133HAK01.1 can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 27 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B133HAK01.1 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.).
|
