| Categories | 3.2V Lithium Battery |
|---|---|
| Brand Name: | Mottcell |
| Model Number: | IFR14500 3.2v |
| Place of Origin: | Guangdong, China |
| Packaging Details: | Standard export packing |
| Supply Ability: | 500000 Piece/Pieces per Month |
| MOQ: | 1000 pieces |
| Price: | $0.50/pieces >=1000 pieces |
| Weight: | 16g, approx 18g |
| The charging ratio: | 0.5C |
| The discharge rate: | 0.5C |
| Anode Material: | LFP |
| Application: | Toys, Consumer Electronics, solar street light/Chrismas lights/power tools |
| Type: | Li-Ion |
| Size: | 14mm*50mm |
| Shape: | cylindrical |
| Warranty: | 24months, 3years |
| Cycle life: | >2000times |
| Battery type: | IFR14500 |
| Product name: | IFR14500 600mah |
| Chargeable: | Yes |
| Port: | Shenzhen |
| Company Info. |
| Shenzhen Mottcell New Energy Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

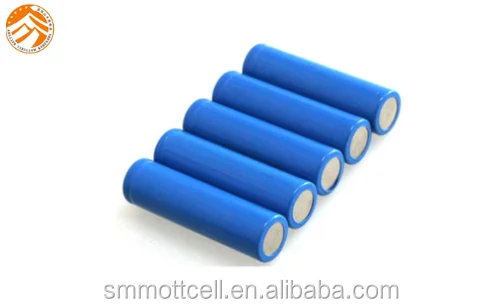

UL UN38.3 ISO ROHS CE MSDS approved IFR14500 3.2V lifepo4 battery
600mAh batteries
Specification
No. | Item | General Parameter | |
1 | Rated Capacity | Typical | 600mAh |
Minimum | 585mAh | ||
2 | Nominal Voltage | 3.2V | |
3 | Voltage at end of Dischargr | 2.0V | |
4 | Charging at end of Voltage | 3.65V | |
5 | Internal Impedance | 100mΩ | |
6 | Standard charge | Constant Current 0.2C5A Constant Voltage 3.65V 0.01C5A cut-off | |
7 | Standard discharge | Constant Current 0.2C5A end Voltage 2.0V | |
8 | Fast charge | Constant Current 1C5A Constant Voltage 3.65V 0.01C5A cut-off | |
9 | Fast discharge | Constant Current 1C5A end Voltage 2.0V | |
10 | Maximum Continuous Charge Current | 1C5A | |
11 | Maximum Continuous Discharge Current | 3C5A | |
12 | Operation Temperature Range | Charge:0~45°C | |
Discharge:-10~60°C | |||
13 | Storage Temperature Range | Less than 1 year:-20~25°C | |
Less then 3 months:-20~40°C | |||
14 | Weight | Approx:18 g | |
15 | Pack Dimension | Height:(h):50.3mm) | |
Width:(d):14.2mm) | |||
Charge-discharge Curve
Advantage
High voltage: 3.2v/cell
Energy density : Weight density, its weight 150mAh/g
High -efficient charge : Charge and discharge efficiency is more than 99.8%
Low self-discharge : After fully charged with 28 days, the battery self- discharge is less than 5%
No memory effect: Whether the battery is fully charged or discharged power, it assure can be charge and discharge of 100%.
High power discharge : The battery can continue to 15C or higher-current discharge.
Good of high temperature feature: Range of 80c high temperature can discharge high capacity than normal temperature.
Environmental Protection
Battery does not contain any heavy metal material and harmful chemicals.
High Security
Basically solves the security issues of LiCoO2 battery and LiMnO2 battery (forcefully impact will cause battery to explode ). LiPO4 battery is the safest in all kinds of Li-ion batteries.
Application
Mainly used for power tools, RC toys, small medical instruments, solar energy system, solar light, emergency light, lighting, communication equipment, UPS, small portable equipment : interphone,portable printer, small household cleaner etc.

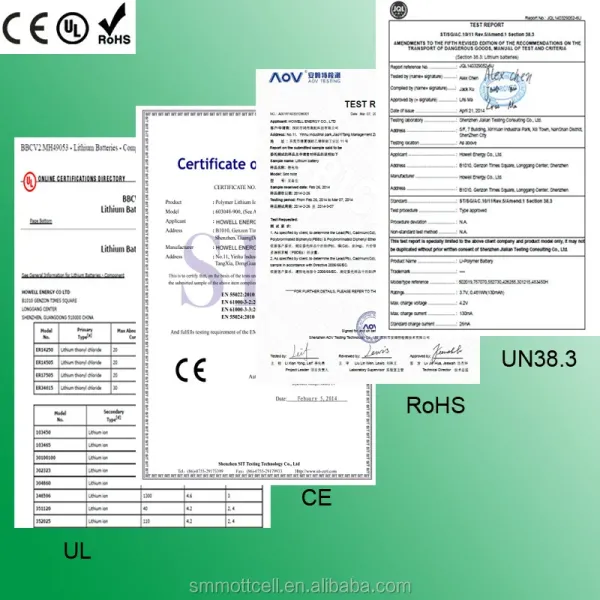

Certifications
Picture review

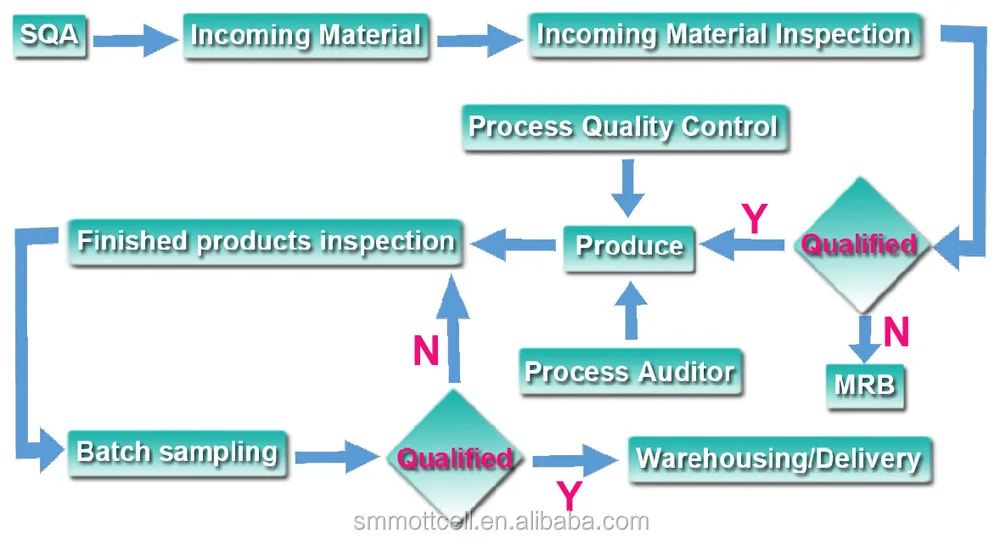

Quality Control Flow
Transportation & Payment

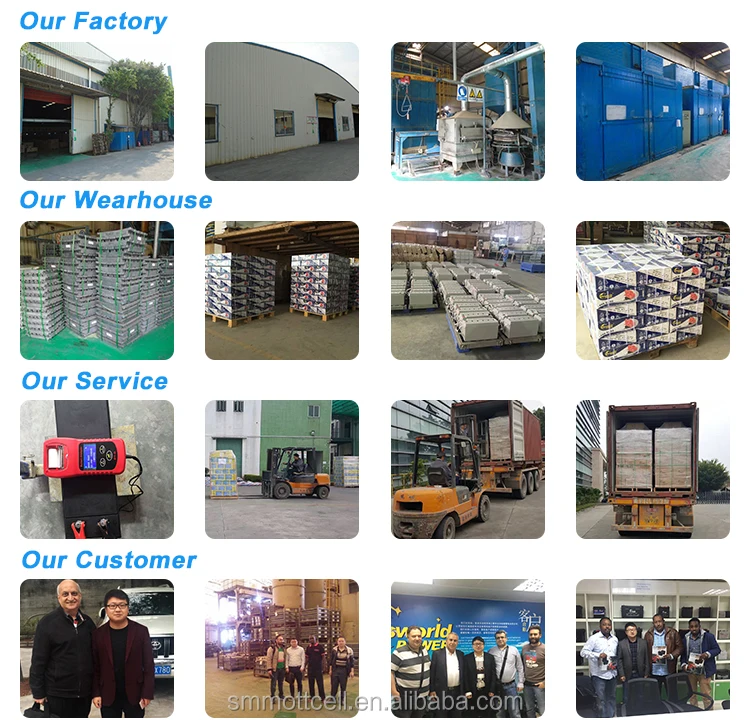

Factory view
Customers distribution
Our website
Http : //www.mottcell.com
|
