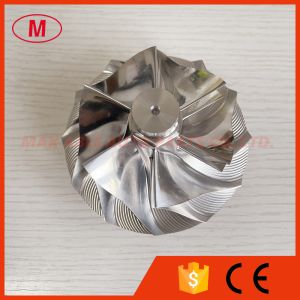

GTA4702 451936-0001, 448671-0009 74.70/102.38mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

1.Model:GTA4702 forward rotation

2.GTA4702 451936-0001, 448671-0009 74.70/102.38mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 466445-0014, 704604-0003, 704604-0007, 715735-0016, 761302-0001, 451686-0016, 451686-0018, 712371-0016,466445-0021, 466445-0022, 466445-0023, 466445-0024, 471066-0001, 471119-0001,0R-6985, 0R-7310, 0R-9806, OR-7923, 124-3031, 1243031, 160-5548, 1605548, 167-9271, 1679271, 175-6218,1756218,176-7716, 1767716, 23535347, E23535347, R23535347, R23535348. 1994-01: CAT with 14.64L 3406E, C12, C15 Diesel Engine/2004-: Scania with 15.6L DC1604, DC1605 Diesel Engine/2005-: Scania with 15.6L DC1605, DC1606 Diesel Engine
3.Size:

Nose diameter:23.64mm

Inducer:74.70mm

Exducer:102.38mm

Tip height:8.72mm

Superback:26.98mm

Overall height:82.80mm

Bore size:10.32mm

bore type:Boreless-3/8-16G-LHT

Trailing angle:55 degree

Cutback:0.0mm

SP Height angle:-1.00

Blades height:37.11mm

Splitter height:25.00mm

6+6 blades

Forward rotation

Tapered tip angle:0 degree

It is for OE compressor housing

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

ALL the billet compressor wheels have been balanced.
