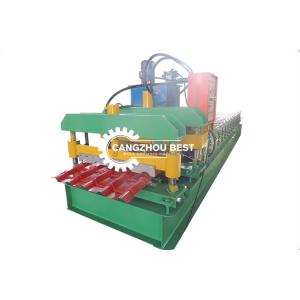

| Categories | Roof Tile Roll Forming Machine |
|---|---|
| Brand Name: | BEST |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | USD$8000---12000 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets/month |
| Delivery Time: | 30 work days |
| Tile type: | Colored Glaze Steel |
| Voltage: | 380V 50Hz 3phases |
| Condition: | New |
| New: | 6T roof sheet roll forming machine |
| Use: | roofing |
| After-sales service provided: | Engineers available to service machinery overseas |
| Company Info. |
| Cangzhou Best Machinery Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

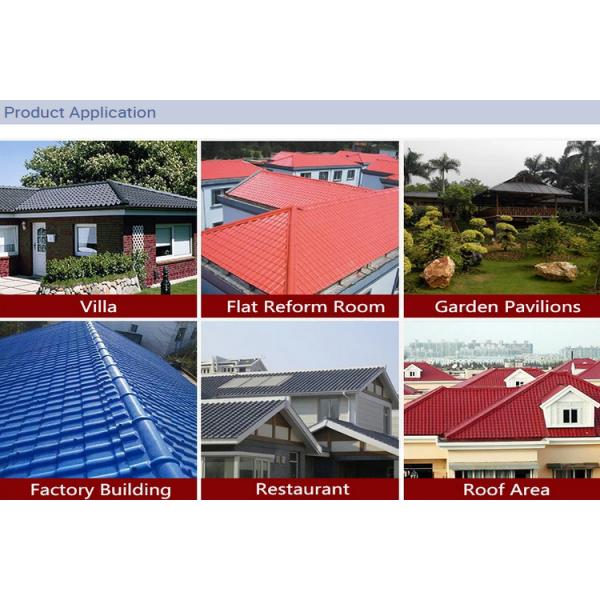

Description of application effect
After-sales Service Provided | Engineers available to service machinery overseas |
raw material | PPGI |
PLC | mitsubishi/delixi/siemens |
warranty | 18 months |
Cutting blade material | Cr12 Quenching |
Roller material | 45# Forged Steel |
Key Selling Points | Easy to operate |
Color | Customized |
2.main parameter table.
| Material thickness | 0.3~0.7mm |
| Material yield stress | 230~550 Mpa |
| Max. forming speed | 8~25m/min |
| Roller material | 45# steel with chrome treatment |
| Roller driven type | Chain transmission |
| Controller & operation | PLC & touch screen and button |
| Hydraulic system pressure | 12 Mpa |
| Hydraulic station motor power | 3 Kw |
| Main motor power | 4~7.5Kw |
| Total power | 7~10.5Kw |
| Total weight | About 6000~8000 Kgs |
| TRAPEZOID TILE ROLL FORMING MACHINE | |
| Feeding material | PPGI |
| Thickness of the plate | 0.3-0.8mm |
| Coil width | 914/1000/1200/1220/1250mm |
| Machine size | about 7000mmX1600mmX1000mm |
| Diameter of the axle | Φ70/Φ75mm |
| Rolling stages | 15-18 stages |
| Productivity | 8-12m/min |
| Total power | 4kw machine motor +4 kw pump station motor |
| Voltage | 220V 60Hz 3phase or as requirement |
| Weight | about 4.5T |
| Base frame | 300H steel |
| Side board thickness | 16mm |
| Cutting blade | Cr12 with heat treatment |
| Cutting system | Hydraulic cutting system after forming |
| Control cabinet | PLC and frequency changer in it |

|
