Three Phase Brushless 12v Dc Centrifugal Blower 18W-54W High Performance

Three Phase Brushless 12v Dc Centrifugal Blower 18W-54W High Performance

Product Introduction:

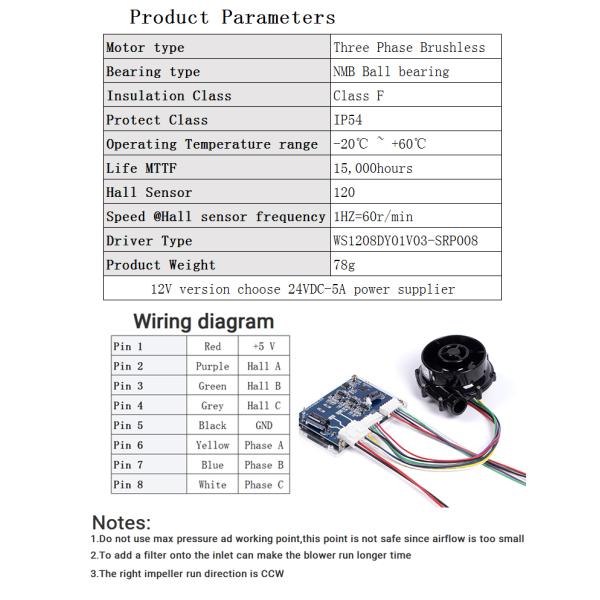

Blower Parameters

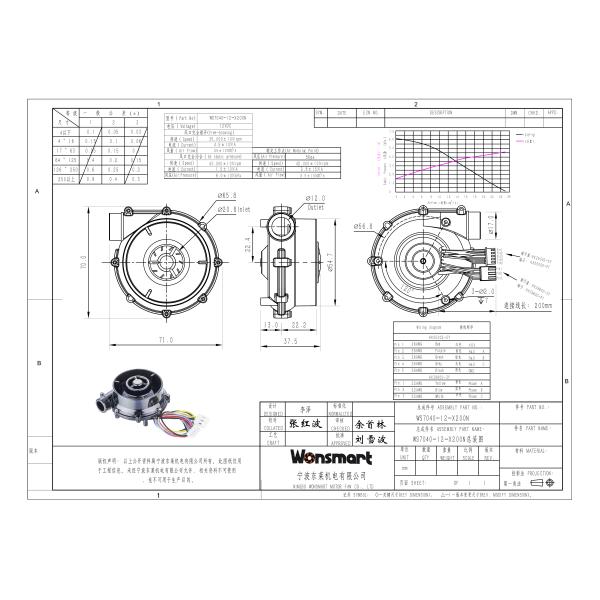

Drawing:

WS7040-12-X200 blower can reach maximum 25m3/h airflow at 0 kpa pressure and maximum 6kpa static pressure.It has maximum output air power when this blower run at 6kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 0kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:

Company Profile

What Is Centrifugal Fan?

A centrifugal fan is a mechanical device for moving air or other gases in a direction at an angle to the incoming fluid. Centrifugal fans often contain a ducted housing to direct outgoing air in a specific direction or across a heat sink; such a fan is also called a blower, blower fan, biscuit blower, or squirrel-cage fan (because it looks like a hamster wheel). These fans increase the speed and volume of an air stream with the rotating impellers.

FAQ:

Q: May I use this blower for Medical device?

A: Yes, this is one blower of our company which can be used on Cpap and ventilator.

Q: What is the maxmum air pressure?

A: As it shown in the drawing, the maxmum air pressure is 6 Kpa.

Q:Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q:When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry.lf you are urgent to get the price, please send the messageon trade management or call us directly.

Q:Can you make a motor with custom specifications?

A: Yes, actually that is what we do most of the time.

Q:What is the MOQ ?

A:1~10 pcs for sample order, 10-50 pcs for trial order,100pcs for bulk order.

Ningbo Wonsmart Motor Fan Company is a professional manufacturer with a focus on small sized brushless dc motors and brushless dcblowers. Our blower's max airflow reaches 200 cubic meter per hour and a max pressure of 60 kpa. With our high quality parts and precise manufacturing process, WONSMART motors and blowers can serve more than 20,000 hours.

Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.

Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.

Wonsmart is certificated by I S O 9 0 0 1,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.Wonsmart has obtained a number of patent certifications and honored with high-tech enterprise,engineering techology center.

With ETL,CE, ROHS, REACH certification, 60% of Wonsmart's products are exported to North America, EU, Japan and Korea. Customers from these countries are very satisfied with Wonsmart's stable quality, fast delivery and reasonable price.

We also accept ODM and OEM projects and customized specification.

Please feel free to contact us.
