| Categories | Solar Energy Storage Battery System |
|---|---|
| Brand Name: | XWELL |
| Model Number: | XW-600W-01 |
| Certification: | UN38.3,MSDS,UL,CB,BIS,PSE,GB4943.1 safety standard, CE, FCC, ROHS, battery UN38.3, MSDS, UL, CB, BIS, PSE |
| Place of Origin: | China |
| MOQ: | 1 pcs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | Carton |
| output 20v: | 600W battery |
| AC output peak: | 1200W Peak maintenance time <50ms |
| AC output: | 650W Approximately |
| adequate Capacity: | 23.8Ah |
| Cylcle life: | more than 1000 |
| DC input: | PD 100W |
| Type-C output: | PD 100W output |
| Batteries: | LiFePO4 battery / 3400mAh |
| Charging parameters: | DC 12-24V / 5A |
| LCD display: | Battery percentage and battery column display |
Portable Lithium Battery Power Station Emergency Rechargeable 2-Level Dimming Energy Storage Battery
Our Lithium Battery Built-in BMS battery management system can accuratelymanage the status of the battery pack, it is prevent over-charging and over-discharging,monitor the battery dynamically in realtime,and manage the balanced charging and discharging forthe individual batteries, thus ensuring the safe and stable operation of the entire battery pack.
Specification
| Category | Project | Specifications |
| INTPUT | DC input | DC5521 12-24V-5A |
| DC input | PD 100W | |
| AC OUT 220V | AC output voltage | 1 port, AC220V±5% |
| AC output power | 600W | |
| AC output over power protection | 650W Approximately | |
| AC output waveform | pure sine wave | |
| AC output peak | 1200W Peak maintenance time <50ms | |
| frequency | 50Hz | |
| USB output port | USB1 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W |
| USB2 output | QC3.0 MAX 18 W 12V / 1.5A ; SCP maximum output power: maximum 22.5W | |
| TYPE-C1 output | PD / QC3.0 MAX 30W 12V/2.5A | |
| DC12V output | DC1 DC2 output | 12V / 10A MAX |
| TYPE-C output/input | TYPE-C2 | PD 100W output |
Batteries | type | LiFePO4 battery / 3400mAh |
| capacity | 23.8Ah (6S7P) | |
| power | 460Wh | |
| cycle life | 1000+ times | |
| Charging parameters | DC 12-24V / 5A | |
| charging time | 5 - 6H | Charge from 0% to 100% (automatic cut-off) |
| Full voltage | 21.9V ±0.1V | The voltage when the battery is charged to the automatic cut-off |
| LCD display | Display power;charging, stop charging status | Battery percentage and battery column display |
| DC, AC, inverter status | The display shows | |
| boot static | <10W | |
| Protective function | Short circuit, overload, over temperature, over voltage, over current, under voltage, etc. | |
| over temperature protection | over temperature protection | ≥85℃ |
| over temperature recovery | ≤70℃ |
Front pannel

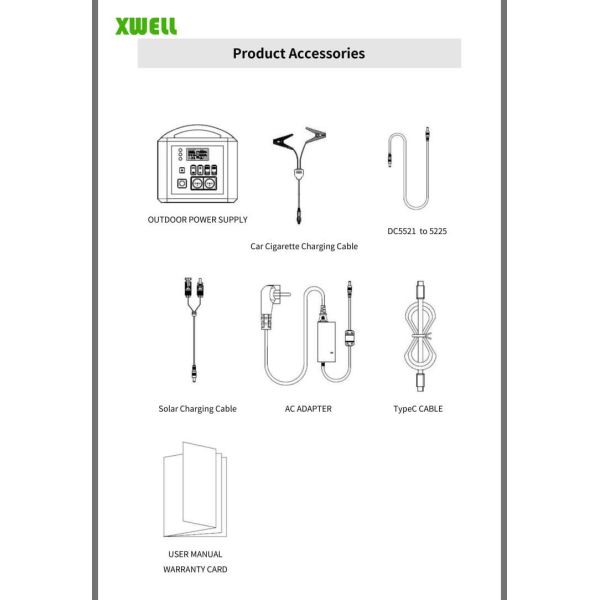

Product accessories

Usage time for common devices

features
1.ULTRA-POWERFUL CAPACITY: Excellent 460Wh capacity and powerful
600W power. 2.The solar generator can power all your essential
devices and appliances during power outages or camping trips.
Cost-saving, with no noise, no pollution, and no need to spend on
fuel.
3.Powers all your needs and appliances, such as fridge, coffee
maker, phone, laptop, lights, TV, and more.
4.FAST CHARGING: QC3.0 fafast charging, 5V-3A, 9V-2A, 12V-1.5A, 18W
totalpower Also supports car charger input.."
