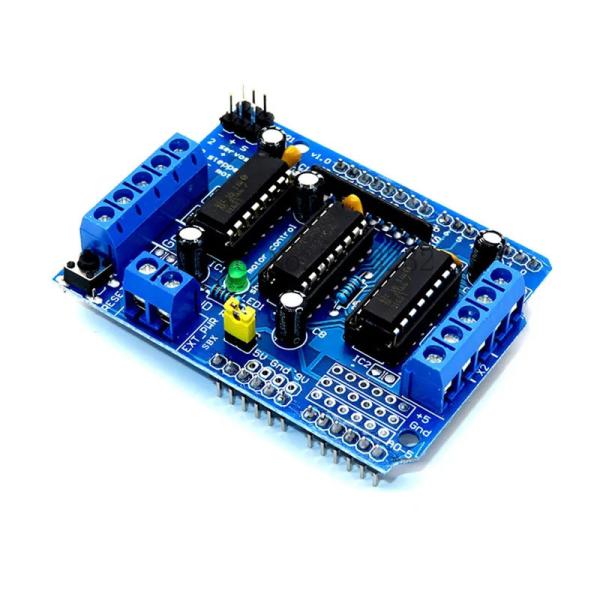

L293D Motor Control Shield Motor H-Bridge Arduino Motor Drive Expansion Shield

Product Description:

L293D is a monolithic integrated, high voltage, highcurrent,4-channel driver,you can use DC motors andpower supplies ofup to 36 Volts, the L293D chip isalso known as a type of H-Bridge,which is typically anelectrical circuit that enables a voltage to be appliedacross a load in either direction to an output, e.gmotor

2 interface for 5V Servo connected to the for Arduino'shigh-resolution dedicated timer - no jitter.Can drive 4DC motors or 2 stepper motors or 2 Servo.Up to 4bi-directional DC motors with individual 8-bit speedselection.Up to 2 stepper motors (unipolar or bipolar)with single coil, double coil or interleaved stepping4 H-Bridges: per bridge provides 0.6A (1.2A peakcurrent) with thermal protection, can run motors on4.5V to 36V DCPull down resistors keep motors disabled during

Pull down resistors keep motors disabled during power-up
2 external terminal power interface, for seperatelogic/motor suppliesTested compatible for Arduino Mega, Diecimila &Duemilanove Reset button.
Size:70*55mm
