Industrial 8Kw Automatic Powder Capsule Filling Machine Types For Pharmaceutical

Technical parameters:

The machine may make technical improvements without prior notice, and the attached picture shows the options that may be offered.

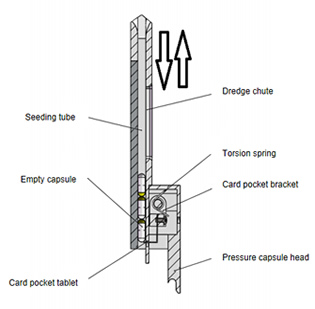

principle The seeding tube is equipped with multiple circular holes and communicate with the capsule hopper, and the channel is equipped with capsule tablets. The seeding sac tube slides up and down to drop the empty capsule into the pore channel. When the seeding capsule tube goes up, the capsule piece will jam the capsule. When the seeding tube falls down, the capsule holder rotates and drives the capsule to release the capsule, and the capsule falls out of the hole.

Orientation of the empty capsule:

---

Broadcast description

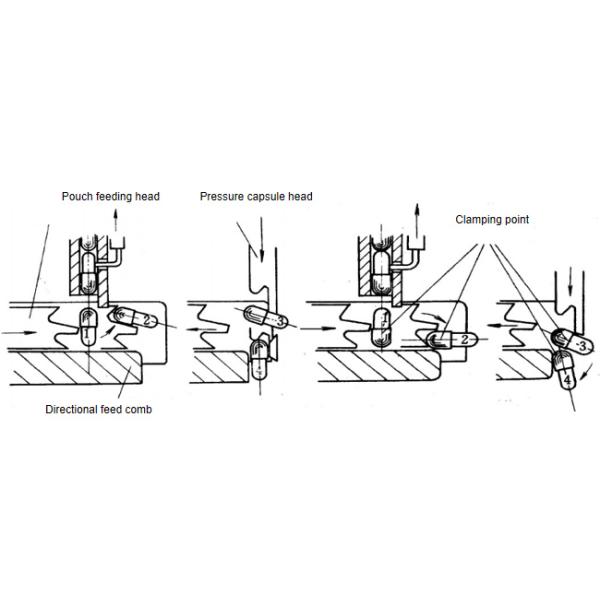

The capsule head always acts in the middle of the capsule body, and the capsule head pushes the capsule to make a U-turn movement, which always pushes the capsule body to the edge of the capsule comb, and then presses the capsule head down to turn the capsule over and push it vertically into the module hole.

principle

1. The thrust point of the capsule head is on the capsule body;

2. The width of the chute is smaller than the outer diameter of the capsule cap, which is larger than the outer diameter of the capsule body. It only has a tightness effect on the capsule cap and does not contact with the capsule body.

Orientation of the empty capsule

Body cap separation of the empty capsule:

---

principle

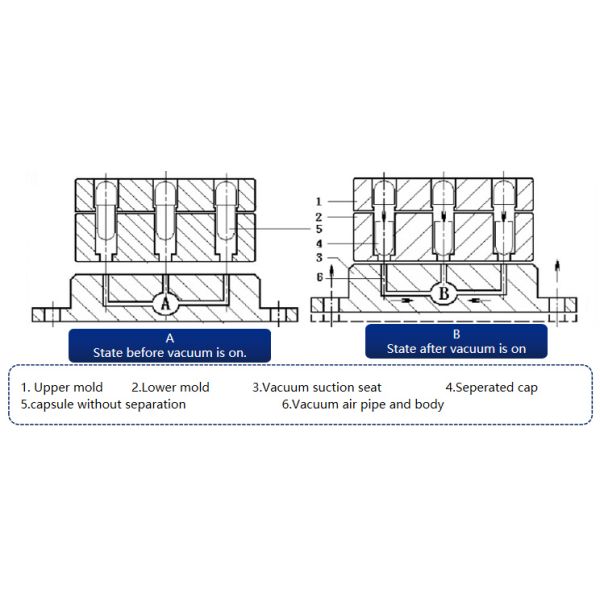

When the empty capsule enters the module hole, the vacuum suction seat rises and is tightened with the lower module. Because the diameter of the small hole of the upper and lower module steps is less than the diameter of the capsule cap and the capsule body respectively; when the vacuum is connected, the capsule body is sucked into the lower module hole, the steps in the upper module die hole block the capsule cap down, and the empty capsule cap is separated.

Zhejiang Canaan Kesinlong Technology Co., Ltd. is a listed company - Zhejiang Canaan Technology Co., LTD. (Stock code: 300412) A joint venture with Ruian Kaixinlong Pharmaceutical Machinery Technology Co., LTD., which specializes in manufacturing and selling automatic capsule filling machine and high-speed rotary tablet press, has won the title of national high-tech enterprise, and is one of the enterprises with strong scale and comprehensive strength of filling machine and tablet press production enterprises in China.

Canaan Kaixinlong is dedicated to the research, development, design and production of pharmaceutical filling, tablet pressing and related equipment. On the basis of the technology cultivated after more than 20 years of efforts and cultivation, we design the products with all our heart to meet the GMP pharmaceutical industry, and our excellent product quality and excellent after-sales service have won the high trust and favor of the users both at home and abroad. So far, our products have been sold to more than 30 provinces and cities in China, Hong Kong and Macau, and have been exported to more than 60 countries such as the United States, Mexico, Norway, Canada, Brazil, Russia, Greece, Syria, the Philippines, Vietnam, Bangladesh, and so on.

The company's series of products to introduce new international design concepts and advanced technology, a complete range of specifications, technical level, smooth operation, filling dose accuracy, easy to clean, perfect performance, quality at the domestic high level.

Over the years, the enterprise in line with the "quality-oriented, customer first, scientific and technological innovation, excellence" quality policy, the product series, won a number of Zhejiang Province, science and technology achievements appraisal and the title of the provincial excellent scientific and technological products. For two consecutive years, the company has become one of the hundred advantageous growth enterprises in Ruian City, science and technology enterprises in Zhejiang Province, specializing in new enterprises in Zhejiang Province, and has the right to import and export, and its products have passed the CE mark certification of the European Union, and has been awarded a number of national patents.

Canaan Kaixinlong sincerely hopes to establish close business cooperation relationship with domestic and foreign enterprises, and provide excellent service to customers with its management concept, strong technical force and rich professional experience.
