| Categories | Gigabit Network Switch |
|---|---|
| Products Status: | Stock |
| Ports: | 24 |
| Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, POE, SNMP, Stackable, VLAN Support, LACP, Stackable, VLAN Support |
| Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 128 Gbps/672 Gbps, 128 Gbps/672 Gbps |
| Brand Name: | jytch |
| Model Number: | CloudEngine S5731-S24P4X |
| Place of Origin: | Beijing, China |

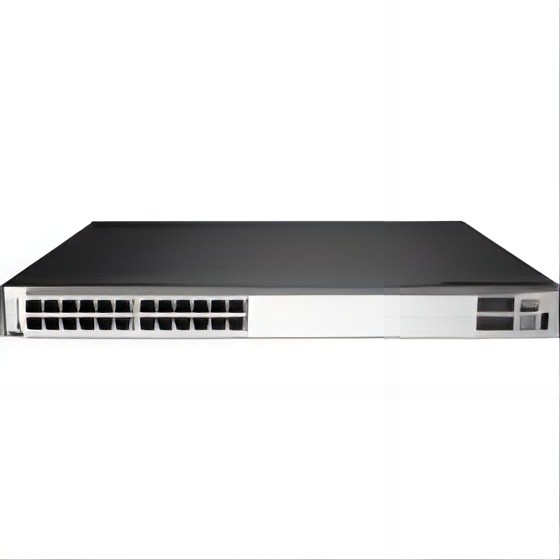

| Product Name: | CloudEngine S5731-S24P4X S5731-S series 24 Port network Switch |
| Products Status:: | Stock |
| Fixed Ports: | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ |
| PoE+: | Not supported |
| Forwarding Performance: | 96 mpps |
| chassis height: | 1U |
| Chassis Weight: | 8.6kg |
| Dimensions (W x D x H): | 43.6x 442x 420mm |
| Packaging Details: | retail box |
| Port: | Beijing |
| Supply Ability: | 1000 Set/Sets per Month |
| Price: | $300.00 - $980.00/sets |
| Company Info. |
| Beijing Jiayetongchuang Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

| Product Model | CloudEngine S5731-S24T4X | CloudEngine S5731-S48T4X | CloudEngine S5731-S24P4X | CloudEngine S5731-S48P4X | |||
| Forwarding Performance | 96 mpps | 125 mpps | 96 mpps | 125 mpps | |||
| Switching Capacity2 | 128/672 Gbit/s | 176/672 Gbit/s | 128/672 Gbit/s | 176/672 Gbit/s | |||
| Fixed Ports | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | 24 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | 48 x 10/100/1000Base-T Ethernet ports, 4 x 10 GE SFP+ | |||
| PoE+ | Not supported | Not supported | supported | supported | |||
| MAC Features | 64,000 MAC entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses | ||||||
| VLAN Features | 4094 VLANs Guest VLAN, voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping | ||||||
| SVF | Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client operations | ||||||
| VXLAN | VXLAN L2 and L3 gateways Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol | ||||||
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) For detailed interoperability certifications and test reports | ||||||







|   |
