CBR4-AFAM-03-RA:RS485 with 2 right-angled connectors

CBR4-AFAM-03

Product name	Double-ended pre-cast RS485 cable	Double-ended pre-cast RS485 cable	Single-end precast RS485 cable	TCP elbow cable	TCP cable	Bus cable	Bus interconnect cables	Bus module power cable	Bus module power interconnect cable

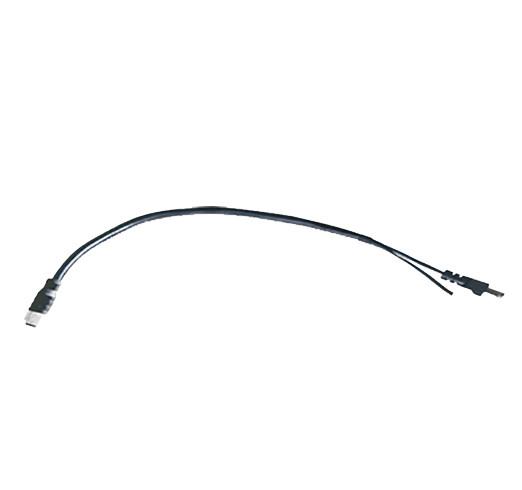

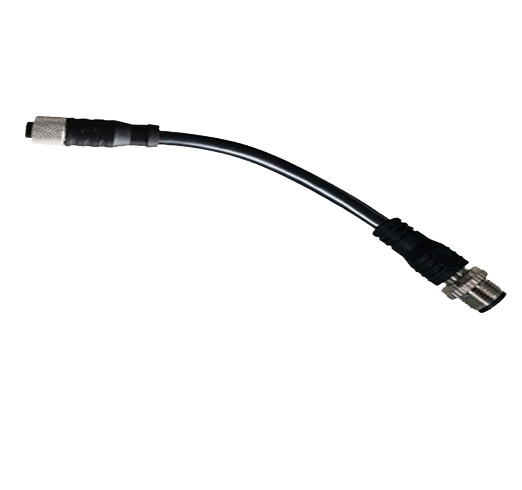

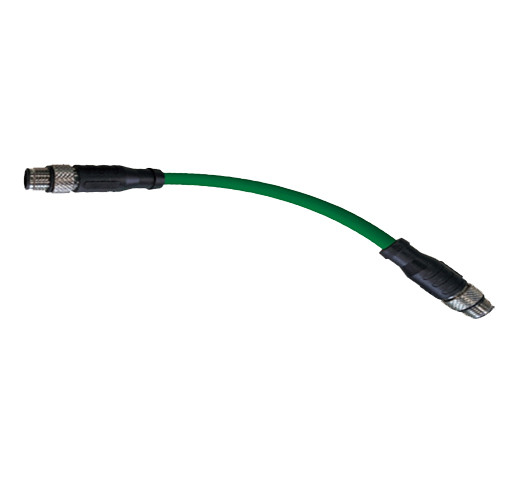

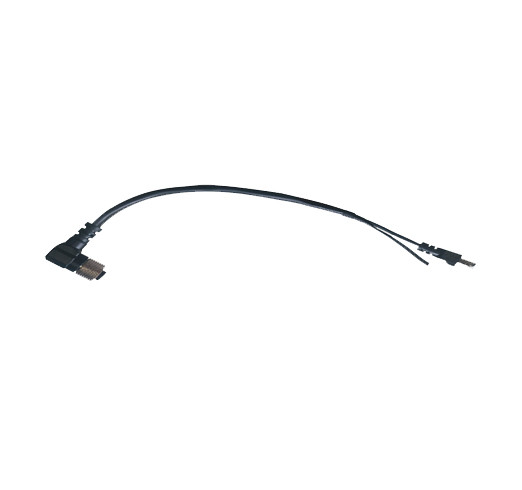

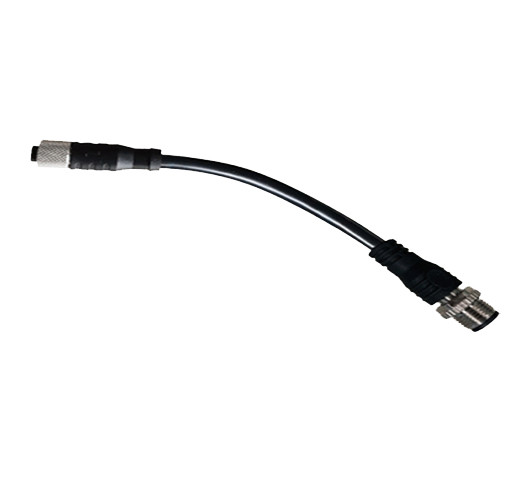

Product images
Product model	CBR4-AFAM-03	CBR4-AFAM-03-RA	CBR4-AFN-03-RA	CBTP-AFJM-03	CBTP-AFJM-03-RA	CBPN-DMJM-03	CBPN-DMDM-03	CBPR-TFN-03	CBPR-TFTM-03
length	3 Meters	3 Meters	3 Meters	3 Meters	3 Meters	3 Meters	3 Meters	3 Meters	3 Meters
Connector type	M12A type female straight head - M12A type male straight head	M12A female elbow- M12A type male straight head	M12A female elbow- M12A type male straight head	M12A type female straight head - RJ45 male head	M12A female elbow- RJ45 male head	M12D male straight head - RJ45 male head	M12D type male straight head - M12D type male straight head	M12T type female straight head-loose wire	M12T type female straight head - M12T type male straight head
Number of pins	5	5	5	8	8	4	4	4	4
Cable outer diameter	5MM	5MM	5MM	7MM	7MM	6MM	6MM	10MM	10MM
Core size	24AWG	24AWG	24AWG	2P+2C(20AWG)	2P+2C(20AWG)	24AWG	24AWG	24AWG	24AWG
Cable material	PVC	PVC	PVC	PVC	PVC	PVC	PVC	PVC	PVC
Operating temperature	-25℃~80℃	-25℃~80℃	-25℃~80℃	-25℃~80℃	-25℃~80℃	-25℃~80℃	-25℃~80℃	-25℃~80℃	-25℃~80℃
Other specifications	5 Meters	5 Meters	5 Meters	5 Meters	5 Meters	5 Meters	5 Meters	5 Meters	5 Meters
	:CBR4-AFAM-05	:CBR4-AFAM-05-RA	:CBR4-AFN-05	:CBTP-AFJM-05	:CBTP-AFJM-05-RA	:CBPN-DMJM-05	:CBPN-DMDM-05	:CBPR-TFN-05	:CBPR-TFTM-05
	10 Meters	10 Meters	10 Meters	10 Meters	10 Meters	10 Meters	10 Meters	10 Meters	10 Meters
	:CBR4-AFAM-10	:CBR4-AFAM-10-RA	:CBR4-AFN-10	:CBTP-AFJM-10	:CBTP-AFJM-10-RA	:CBPN-DMJM-10	:CBPN-DMDM-10	:CBPR-TFN-10	:CBPR-TFTM-10
