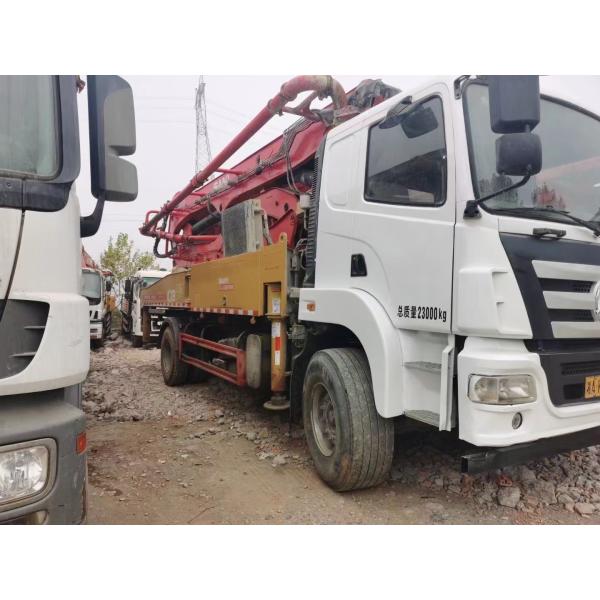

SYM5230THB 370C-8A 2019year SANY 37Meters Truck Mounted Concrete Boom Pump

Product Description:

• Models and specifications: Used concrete pump trucks are available in a variety of models and specifications. The size and pumping capacity of the pump truck are determined according to the project requirements and site conditions. In general, pumping capacity is expressed in cubic meters per hour (m³/h), which determines the speed and efficiency of pumping concrete.

• Pumping distance and height: The distance and height at which a used concrete pump truck can pump concrete are also factors to consider. Different pump trucks have different pumping ranges, some can reach a horizontal distance of tens of meters, and some can even reach a horizontal distance of hundreds of meters. Similarly, some pump trucks can pump concrete to a vertical height of tens or even hundreds of meters.

• Condition and maintenance records: Before buying or leasing a used concrete pump truck, it is important to know its condition and maintenance records. Whenever possible, you should obtain maintenance records of the pump truck, including past repairs and maintenance. In addition, a thorough inspection of the exterior and mechanical components of the pump truck is carried out to ensure that it is in good working condition and that there is no serious mechanical failure or damage.

• Service life and working hours: It is also important to know the service life and working hours of used concrete pump trucks. This can help you assess the service life and residual value of the pump truck. Typically, shorter service life and working hours mean less wear and tear on the pump truck, which may have higher reliability and performance.

• Purchase Source and Warranty: You can purchase used concrete pump trucks from multiple sources, including dealers, auction houses, and online platforms. Make sure you buy from a reliable source and that you understand the terms and conditions regarding warranties and after-sales support.

• Price and cost considerations: The price of used concrete pump trucks is usually lower than that of new cars, but the specific price depends on the age, model, specifications, use conditions and other factors of the pump trucks. In addition to purchase costs, you should also consider expenses in terms of transportation costs, maintenance costs, and possible future repairs.

Features

​

NO	Name	Parameter
Vehicle parameters
1	Total length	10050mm
2	Overall width	2530mm
3	Total height	3850mm
4	All up weight	23000kg
Boom leg parameters
6	Vertical height of boom	36.5 m
7	Horizontal length of boom	31.8 m
8	Vertical depth of boom	24.8 m
9	Minimum development height	7.5 m
10	First arm length	7550mm
11	First arm corner	89 °
12	Second arm length	6025mm
13	Second arm corner	180 °
14	Third arm length	5835mm
15	Third arm corner	180 °
16	Fourth arm length	6660mm
17	Fourth arm corner	230 °
18	Fifth arm length	6355mm
19	Fifth arm corner	180 °
20	Turntable rotation Angle	+ 360 °
21	Front leg spread width	6110mm
22	Spread width of rear leg	8500mm
Pumping system parameters
23	Concrete theoretical displacement low pressure	120m³/h
24	Concrete theoretical displacement high pressure	70m³/h
25	Theoretical pumping pressure low	8Mpa
26	Theoretical pumping pressure High pressure	13Mpa
27	Conveying cylinder inner diameter:	230mm
28	Cylinder stroke	1600mm
29	Hydraulic system	Open type
30	System oil pressure	32Mpa
31	Tank volume	320L
32	Tank volume	700L
33	Conveying pipe diameter	125mm
34	End hose length	3m
35	End hose pipe diameter	125mm
Chassis parameter
36	Chassis brand:	self-control
37	Chassis type	SYM5230THB1E
38	Engine type	J08E-WY
39	Maximum net engine power	194/2200kW/rpm
40	Emission standard	Country V
41	Fuel tank capacity	300L
42	Displacement:	7.684 L
43	Maximum speed	85km/h

​
