| Categories | Stainless Steel Profiles |
|---|---|
| Brand Name: | PUXIANG, TSINGSHAN |
| Model Number: | C Channel |
| Certification: | ISO,CE |
| Place of Origin: | China |
| MOQ: | 2 ton |
| Price: | US$1980-US$2180 |
| Payment Terms: | T/T, T/T + L/C |
| Supply Ability: | 1000ton/month |
| Delivery Time: | 10-15 working days after receiveing advance payment |
| Description: | Stainless Steel C-Channel |
| Grade: | 304 |
| Size: | 50x37mm to 400x104mm |
| Length: | 6m to 12m or as required |
| Applications: | Frame work, braces, supports, marine, food, etc. |
| Package: | Standard Export Package |
| Company Info. |
| Puxiang Metal (Group) Co., LTD |
| View Contact Details |
| Product List |

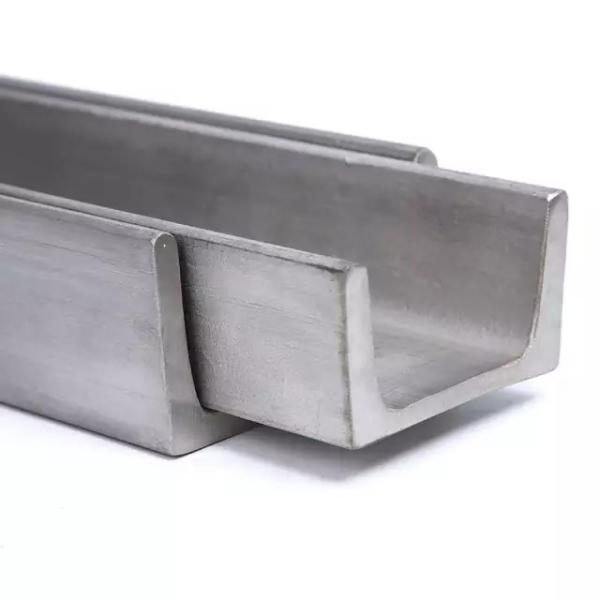

304 C Shape Stainless Steel Channel, 304 Stainless Steel C-Channel
304 Stainless Channel, is a hot rolled stainless channel shape with inside radius corners that is ideal for all structural applications where greater strength and superior corrosion resistance is required. 304 Stainless Channel has a durable dull, grainy mill finish that is widely used for all types of fabrication projects that are exposed to the elements - chemical, acidic, fresh water, and salt water environments.
| Item No. | H (mm) | W (mm) | Thickness (mm) | Cross Section (cm²) | Weight/pc (kg/m) |
| 5# | 50 | 37 | 4.5 | 6.928 | 5.438 |
| 6.3# | 63 | 40 | 4.8 | 8.451 | 6.634 |
| 6.5# | 65 | 40 | 4.3 | / | 6.709 |
| 8# | 80 | 43 | 5 | 10.248 | 8.045 |
| 10# | 100 | 48 | 5.3 | 12.748 | 10.007 |
| 12# | 120 | 53 | 5.5 | / | 12.059 |
| 12.6 | 126 | 53 | 5.5 | 15.692 | 12.319 |
| 14#a | 140 | 58 | 6 | 18.516 | 14.535 |
| 14#b | 140 | 60 | 8 | 21.316 | 16.733 |
| 16#a | 160 | 63 | 6.5 | 21.962 | 17.24 |
| 16#b | 160 | 65 | 8.5 | 25.162 | 19.752 |
| 18#a | 180 | 68 | 7 | 25.699 | 20.174 |
| 18#b | 180 | 70 | 9 | 29.299 | 23 |
| 20#a | 200 | 73 | 7 | 28.837 | 22.637 |
| 20#b | 200 | 75 | 9 | 32.837 | 25.777 |
| 22#a | 220 | 77 | 7 | 31.846 | 24.999 |
| 22#b | 220 | 79 | 9 | 36.246 | 28.453 |
| 25#a | 250 | 78 | 7 | 34.917 | 27.41 |
| 25#b | 250 | 80 | 9 | 39.917 | 31.335 |
| 25#c | 250 | 82 | 11 | 44.917 | 35.26 |
| 28#a | 280 | 82 | 7.5 | 40.034 | 31.427 |
| 28#b | 280 | 84 | 9.5 | 45.634 | 35.832 |
| 28#c | 280 | 86 | 11.5 | 51.234 | 40.219 |
| 30#a | 300 | 85 | 7.5 | / | 34.463 |
| 30#b | 300 | 87 | 9.5 | / | 39.173 |
| 30#c | 300 | 89 | 11.5 | / | 43.883 |
| 32#a | 320 | 88 | 8 | 48.513 | 38.083 |
| 32#b | 320 | 90 | 10 | 54.913 | 43.107 |
| 32#c | 320 | 92 | 12 | 61.313 | 48.131 |
| 36#a | 360 | 96 | 9 | 60.91 | 47.814 |
| 36#b | 360 | 98 | 11 | 68.11 | 53.466 |
| 36#c | 360 | 100 | 13 | 75.31 | 59.118 |
| 40#a | 400 | 100 | 10.5 | 75.068 | 58.928 |
| 40#b | 400 | 102 | 12.5 | 83.068 | 65.208 |
| 40#c | 400 | 104 | 14.5 | 91.068 | 71.488 |



|
