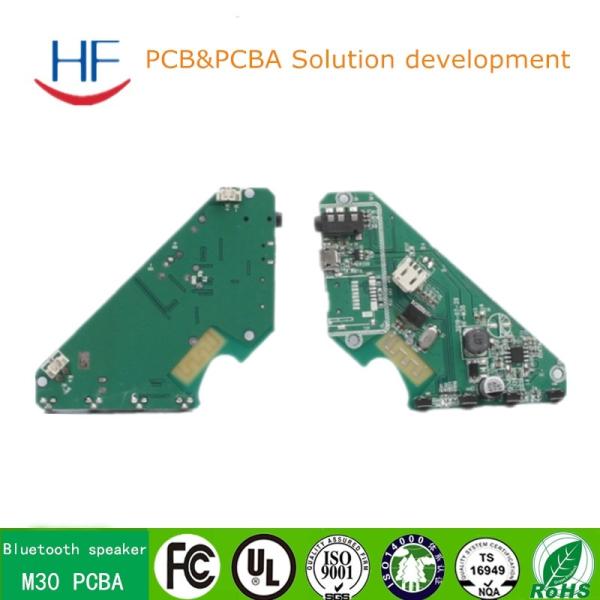

6oz Surface Mount PCB Design And Development Assembly Bulk Production

Categories	PCB Design And Development
Brand Name:	HF
Model Number:	customization
Certification:	ISO CE
Place of Origin:	China
MOQ:	5PCS
Price:	Negotiable
Packaging Details:	Paper Carton
Material:	FR4 (Shengyi China, ITEQ, KB A+, HZ), HI-TG, FR06, Rogers, Taconic, Argon, Nalco, Isola and so on
Board layers:	1-12
Board thickness:	0.4-3.2
Copper Thickness:	0.5-4oz
Minimum hole size:	0.15mm
Minimum line width/gap:	3.5/4mil
Solder Mask color:	green, yellow,white, blue,black,red
Silkscreen color:	white,black
Payment Terms:	L/C, T/T,PAYPAL
Delivery Time:	5~8 days
Layer Coun:	1-40
Surface Finishing:	HASL(lead Free) / Immersion Gold(ENIG) /OSP/ Immersion Tin/Immersion Silver
Service:	OEM/ODM/PCB/Components Sourcing/Assembly/Programming/Testing...One-stop Turnkey Service.
Test:	100% AOI, X-ray, Flying probe test.

Contact Now

Add to Cart

Company Info.

Shenzhen Huafu Fast Multilayer Circuit Co. LTD

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Capability

		High precision prototype	PCB bulk production
Max Layers		1-28 layers	1-14 layers
MIN Line width(mil)		3mil	4mil
MIN Line space(mil)		3mil	4mil
Min via (mechanical drilling)	Board thickness≤1.2mm	0.15mm	0.2mm
	Board thickness≤2.5mm	0.2mm	0.3mm
	Board thickness＞2.5mm	Aspect Ration≤13:1	Aspect Ration≤13:1
Aspect Ration		Aspect Ration≤13:1	Aspect Ration≤13:1
Board thickness	MAX	8mm	7mm
Board thickness	MIN	2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm	2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size		610*1200mm	610*1200mm
Max copper thickness		0.5-6oz	0.5-6oz
Immersion Gold/ Gold Plated Thickness		Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” Gold Plated:Au,1—150u” Nickel Plated :50—500u”
Hole copper thick		25um 1mil	25um 1mil
Tolerance	Board thickness	Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8%	Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8%
	Outline Tolerance	≤100mm:+/-0.1mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm	≤100mm:+/-0.13mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm
	Impedance	±10%	±10%
MIN Solder mask bridge		0.08mm	0.10mm
Plugging Vias capability		0.25mm--0.60mm	0.70mm--1.00mm
