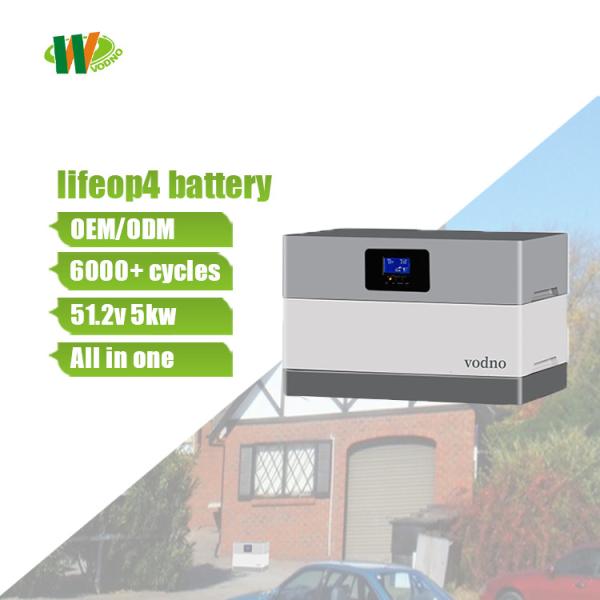

Floor Standing 5Kwh 10Kwh 20Kwh LiFePO4 Stackable Rechargeable Battery Pack With Smart BMS For Home

Categories Solar Energy Storage Battery
Model Number: VDO-LV10KWh
Place of Origin: Guangdong, China
Certification: CE/ROHS/MSDS/UN38.3/UL
Packaging Details: 1pc / inner box, 1 inner box/ carton.
Supply Ability: 1000000000 Piece/Pieces per Month
MOQ: 2 pieces
Price: $3,469.00/pieces 2-10 pieces
Battery Type: LiFePO4, Lithium Iron Phosphate Battery
OEM/ODM: Accepatable
Warranty: 10 Years
Inverter Matched: Built-in Inverter
Apllication: Household Energy Storage
Product name: Storage Battery
Protection: Built-in BMS
Nominal Voltage: 51.2Volts
Cycle life: 6000 Times
Inverter Type: Pure Sine Wave
Power Source: Solar Panel
Controller Type: MPPT
Port: SZ OR HK
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Floor Standing 5Kwh 10Kwh 20Kwh LiFePO4 Stackable Rechargeable Battery Pack With Smart BMS For Home

Products Description
The most complete household energy storage battery system

A battery energy storage system is an electrochemical device that charges or collects energy from the grid or a power plant and then discharges that energy at a later time to provide electricity or other grid services when needed. Battery storage is an important technology that can enhance power system flexibility and enable high levels of renewable energy integration. Modern battery energy storage systems usually include a built-in inverter and computerized control systems that make them simple to install, largely maintenance-free and do not require any effort or expertise from the user. Battery energy storage systems have a wide range of applications for both commercial and residential purposes. Commercial applications include peak shaving, load shifting, emergency backup, and various grid services. Residential applications include self-consumption, off-grid homes and emergency backup.
Product Paramenters
Model
VDO-5kwh
VDO-10kwh
VDO-20kwh
VDO-30kwh
Dimension(W*D*H)
570*400*390
570*400*550
570*400*870
570*400*1190
Weight
70kg
120kg
220kg
320kg
Battery Specifications
Rated voltage
51.2V
Rated Capacity
5kwh
10kwh
20kwh
30kwh
Configuration
1* 100Ah
2* 100Ah
3* 100Ah
4* 100Ah
Discharge/charge Current
0.5C
Cooling Method
Self-Cooling
Battery Type
Lithium Iron Phosphate 3.2v 105Ah
Use Period
>15 Years@25°C
Cycle Life
6000 times
Communication
RS485/CAN/RS232
Certification
UL1973,UL9540,CE,UN38.3,MSDS
Inverter Specifications
Rated Grid Frequency
50HZ/60HZ Auto Detect
AC input Range
110V/220V(90Vac-240Vac)±2%
Rated output voltage
120Vac(100/105/110Vac)
Rated output power
5000W(Peak10000W)
The charging and discharging efficiency
>95%
Battery Voltage Range
48V (min starting voltage 44V)
Max overload current
63A
AC Charging mode
Max charging current
40A
Charge voltage range
40-60Vdc
Short circuit breaker spec
63A
Solar Charging mode
Max PV open circuit voltage
500Vdc
PV operating voltage
120-500Vdc
MPPT voltage range
120-450Vdc
Max output power
5000w
Solar Charging current
0-80A
AC Output
Output voltage waveform
Pure sine wave
Rated output voltage
5000(4100/4300/4500)
Rated output power
5000(4100/4300/4500)
Enviroment Condition
Working tempreture range
0°C-55°C
Humidity range
5%-95%
Nolse emission
≤60dB
Our Advantages
* Stacking Design - Modular stack design, flexible power use
* BMS system- Built in BMS system ensure battery safety
* Pulley design- battery chassis with pulleys
* Easy to install- easy installation, plug and play, fuse protection
* Low voltage 5Kwh-50kwh energy storage system
* All in one system including inverter
Why Choose Us
1. Strong adaptability and is compatible with more than ten brands of inverters, such as Pylontech, Growatt, Sermatec,
FoxESS,Victron energy,Voltronk Power, Sofar, SMA, TBB, Deye, Luxpower and so on.
2. Low voltage and high voltage are option, Low voltage means it is consisted of 15 pcs of LFP cell,The Operating voltage range 42V~54V, High voltage means the Operating voltage range 102V~512V. LFP cell voltage is 3.2V from China famous brands,Such as CATL,BYD,CALB and so on.
3. Safety certification: Cell: CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3
Battery pack: CE, UN38.3, MSDS, Shipping, Dangerous Package
Hazardous Material Classification: CLass 9
Transportation: UN38.3
Ingress Rating: IP55
4. Warranty: The battery retains at least 80% of Nominal Energy for 7 years after the date of invoice and at least 60% of Nominal Energy for 10 years after under proper conditions of the use during the Term of Performance Warranty

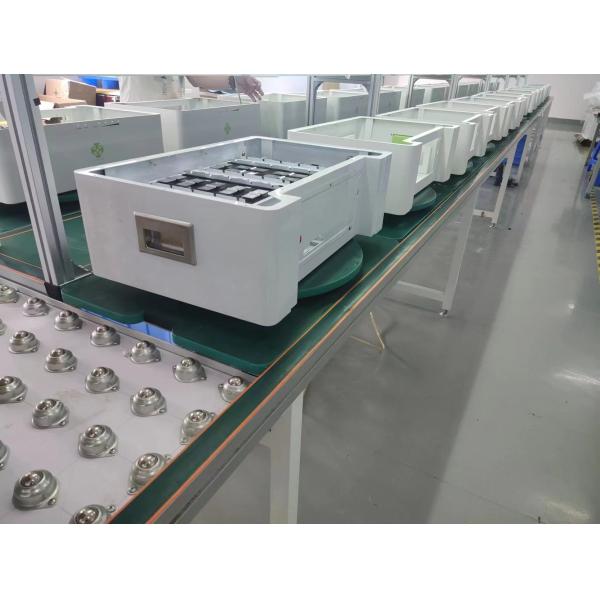

Details Images
Details Packing
FAQ

Q1.: Are you a manufacture or a trading company ?

A1.: Yes. we are both.

Q2.: Can I get some samples?

A2.: Yes, sample order is available for quality check and market test. After we received charges of sample, the sample will be delivered in 7-15 days.

Q3.: Can you do the design for us?

A3.: Yes. We have a professional designing team which is provide OEM and ODM. Just tell us your ideas and we can help to carry out your ideas. Send us HD images, your logo and text, we would like to arrange them according to your requirements. The final files need to confirmed by you.

Q4.: Does inverter built in battery pack system?

A4.: Yes, we have both for with and without inverter for your choice. if you have a inverter already, just let us know details of communication protocol, we can help check if our battery system is support, or adjust our battery system to support them.

Q5.: How about the delivery time?

A5: It depends on the quantity and the season you place an order. Usually takes about 5-7 working days for 10 units production.

Q6.: What is your terms of delivery shipping?

A5: It depends on the quantity and the season you place an order. Usually takes about 5-7 working days for 10 units production.

Q7.: What is your warranty?

A6.: We accept EXW, FOB, CFR, CIF, DDP, DDU,etc. We could give you best suggestion of shipping way based on destination.

Q8.: Do you sell inverter or solar panel also?

A8.:We are professional storage battery system manufacturer, we only produce battery, but if you need help, Pls talk to sales staff about your requirements, we will help to provide with it.
Application
