Floor Standing Wall Mounted Lithium Lifepo4 Batteries 51.2v Powerwall OEM / ODM

Categories Solar Energy Storage Battery
Brand Name: VODNO
Model Number: VDO-PW14.3
Place of Origin: Guangdong, China
Certification: CE/ROHS/MSDS/UN38.3/UL
Packaging Details: 1pc / inner box, 1 inner box/ wood carton.
Supply Ability: 100000000000 Piece/Pieces per Month
MOQ: 2 pieces
Price: $3,418.00/pieces 2-10 pieces
Anode Material: LFP
Application: Home Appliances, Solar Energy Storage Systems
OEM/ODM: Accepatable
Warranty: 10 Years, 10YEARS
Inverter Matched: Bluesun Goodwe Deye Growatt Sungrow
Apllication: Household Energy Storage
Battery Type: Lithium Iron Phosphate Battery
Product name: Storage Battery
Protection: Built-in BMS
Nominal Voltage: 51.2Volts
Cycle life: 6000 Times
Port: SZ OR HK
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

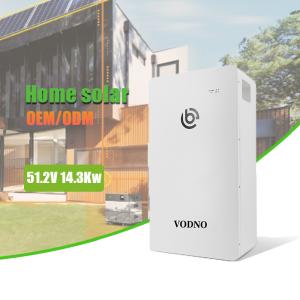

Floor Standing Wall Mounted Lithium Lifepo4 Batteries 51.2v Powerwall OEM / ODM

Products Description
The most complete household energy battery system

A battery energy storage system is an electrochemical device that charges or collects energy from the grid or a power plant and then discharges that energy at a later time to provide electricity or other grid services when needed. Battery storage is an important technology that can enhance power system flexibility and enable high levels of renewable energy integration. Modern battery energy storage systems usually include a built-in inverter and computerized control systems that make them simple to install, largely maintenance-free and do not require any effort or expertise from the user. Battery energy storage systems have a wide range of applications for both commercial and residential purposes. Commercial applications include peak shaving, load shifting, emergency backup, and various grid services. Residential applications include self-consumption, off-grid homes and emergency backup.
Product Paramenters
Datesheet
VDO-Powerwall 14.3k
Nominal Energy Capacity(Wh)
14300
Battery Cell Material
Lithium(LifePO4)
Operating Voltage Range
48-57
Nominal Voltage
51.2
Weight
120kgs
Standard Charge/Discharge Current
100A
Max Charge/Discharge Current
100A
IP Protection
IP65
Installation
Wall-Hanging or Ground Mounted
Operation Temperature
0 to 55ºC/0 to 131ºF
DOD
80%
Cycle Life
>6000
Warranty
10 Years
Communication Port
CAN/RS485/RS232
Communication Mode
WIFI / BLUETOOTH
Certification
CE, IEC62619, MSDS, ROHS, UN38.3
Product Characteristic
Powerwall 51.2V 14.3kwh
BETTENERGY ELESHELL-14.3K Lithium Battery * Sufficient capacity
* Long life cycle > 6000 cycle @90%DOD
* Support multi-machine in series to increase capacity Max 10
* Intelligent communication RS232/RS485/CAN
* Customizable communication protocol:Growatt,Solis,Goodwe,Victron,INVT etc.
* LiFePO4 cell
* 5+5 years warranty
* CE IEC62619 MSDS RoHS UN38.3
A Grade Chinese famous brands lifepo4 cell & Automatic Laser welding battery module
Cell Parameters
Rated voltage(V)
3.2
Rated capacity(Ah)
280
Charge Discharge Rated (C)
0.5
Cycle life (80% DOD, 0.5C)
>6000
Dimensions(L*W*H)(mm)
174.7*71.5*207
Battery module Parameters
Configuration
1S8P
Rated voltage(V)
25.6
Operating voltage(V)
23.2-29
Rated capacity(Ah)
200
Rated energy(kWh)
5.12
Max continuous current(A)
100
Operating temperature(°C)
0-55
Weight(kg)
43
Dimensions(L*W*H)(mm)
701*205*116
Battery Pack Parameters
Configuration
1S16P
Rated voltage(V)
51.2
Operating voltage(V)
46.4-57.9
Rated capacity(Ah)
280
Rated energy(kWh)
14.3
Max continuous current(A)
100
Operating temperature(°C)
0-55
Weight(kg)
150
Dimensions(L*W*H)(mm)
750*412*235
Why Choose Us
1. Strong adaptability and is compatible with more than ten brands of inverters, such as Pylontech, Growatt, Sermatec,
FoxESS,Victron energy,Voltronk Power, Sofar, SMA, TBB, Deye, Luxpower and so on.
2. We are more 10 years lithium battery pack manufacturer, has Rich experience to expert lithium battery pack.
3. Safety certification Cell: CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3
Battery pack: CE, CB,IEC,UN38.3, MSDS, Shipping, Dangerous Package
4. Warranty: The battery retains at least 80% of Nominal Energy for 7 years after the date of invoice and at least 60% of Nominal Energy for 10 years after under proper conditions of the use during the Term of Performance Warranty.
5. Be good at production and sale of solar on/0ff grid, hybird power generation and energy storage battery system.
6. Fast delivery time 7 days for sample order.

LIFEPO4 BATTERY CELL

Equipped with only high quality A grade battery cell

Smart BMS

The high-end BMS control system provides the best service for system operation and grid response.

Interior structure

Equipped with first-class design, bring stable and reliable operation to the equipment
Details Images
Packing Details
Application
FAQ

Q1.: Are you a manufacture or a trading company ?

A1.: Yes. we are both.

Q2.: Can I get some samples?

A2.: Yes, sample order is available for quality check and market test. After we received charges of sample, the sample will be delivered in 7-15 days.

Q3.: Can you do the design for us?

A3.: Yes. We have a professional designing team which is provide OEM and ODM. Just tell us your ideas and we can help to carry out your ideas. Send us HD images, your logo and text, we would like to arrange them according to your requirements. The final files need to confirmed by you.

Q4.: Does inverter built in battery pack system?

A4.: Yes, we have both for with and without inverter for your choice. if you have a inverter already, just let us know details of communication protocol, we can help check if our battery system is support, or adjust our battery system to support them.

Q5.: How about the delivery time?

A5: It depends on the quantity and the season you place an order. Usually takes about 5-7 working days for 10 units production.

Q6.: What is your terms of delivery shipping?

A5: It depends on the quantity and the season you place an order. Usually takes about 5-7 working days for 10 units production.

Q7.: What is your warranty?

A6.: We accept EXW, FOB, CFR, CIF, DDP, DDU,etc. We could give you best suggestion of shipping way based on destination.

Q8.: Do you sell inverter or solar panel also?

A8.:We are professional storage battery system manufacturer, we only produce battery, but if you need help, Pls talk to sales staff about your requirements, we will help to provide with it.
